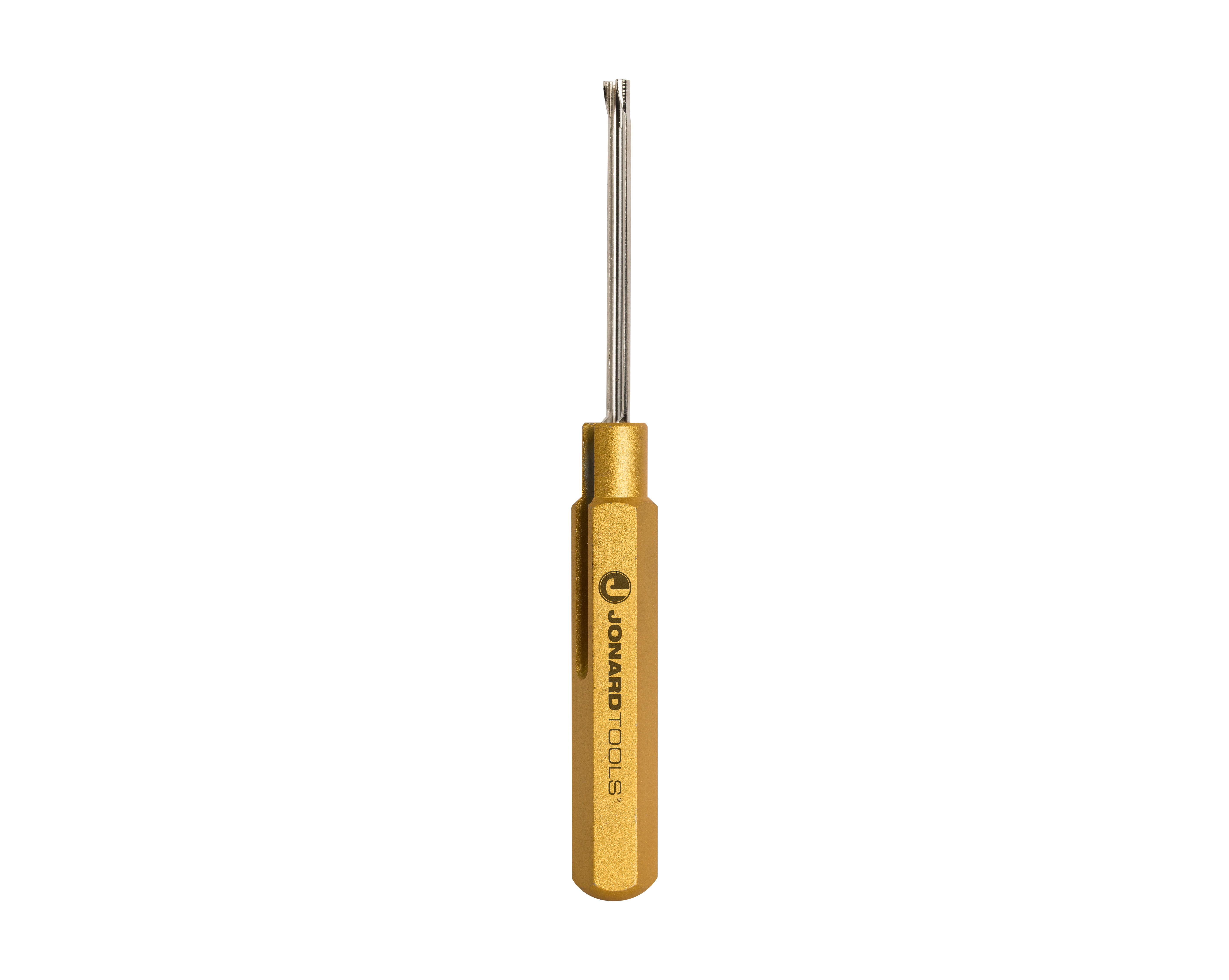

Jonard A-4600 · 1 of 1 · Image: Jonard
Jonard A-4600
Tools · Insertion Tool, Contact Size 12
Specs come from the parts catalog.
Documents & links
| electrical-pin-insertion-tools?v=22 | electrical-pin-insertion-tools?v=22 |
| Data%20Sheet%20-%20Insertion%20Tools%20-%20A-4598%2C%204599%2C%204600_1.pdf | Data%20Sheet%20-%20Insertion%20Tools%20-%20A-4598%2C%204599%2C%204600_1.pdf |
Outbound links only. HireLV does not host these files.
Reviews
Be the first to review this.
Sign in to write a review.
Add to my tools
Sign in to add this to your tools.
Specs
| Function | Insertion |
|---|---|
| Contact Size | 12 (0.093") |
| Probe Diameter | 0.195" (4.95 mm) |
| Probe Wall Thickness | 0.027" (0.69 mm) |
| Dimensions | 5 in x 0.2 in x 0.2 in (12.7 cm x 0.51 cm x 0.51 cm) |
| Weight | 0.11 lb (49.94 g) |
