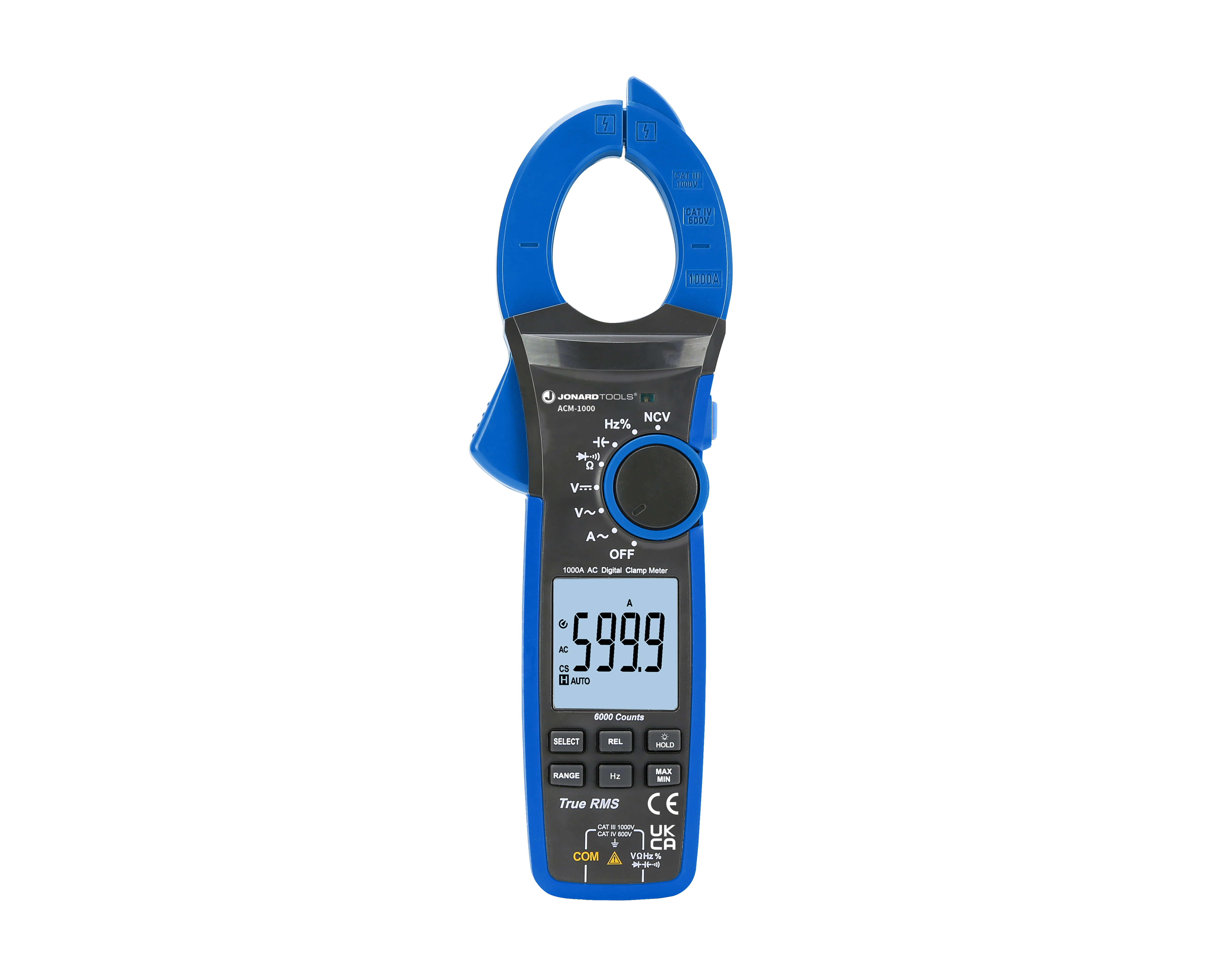

Jonard ACM-1000
Tools · 1000A Digital Clamp Meter
Specs come from the parts catalog.
Documents & links
| acm-1000?v=1308 | acm-1000?v=1308 |
| 1308 | 1308 |
Outbound links only. HireLV does not host these files.
Reviews
Be the first to review this.
Sign in to write a review.
Add to my tools
Sign in to add this to your tools.
Specs
| AC Current | 1000A |
|---|---|
| AC/DC Voltage | 1000V |
| Resistance | 600Ω-60MΩ |
| Capacitance | 60nF-60mF |
| Jaw Opening | 42mm (1.65") |
| Overvoltage Category | CAT IV 600V, CAT III 1000V |
| Dimensions | 12 in x 5 in x 2 in (30.48 cm x 12.7 cm x 5.08 cm) |
| Weight | 1.7 lb (771.8 g) |
