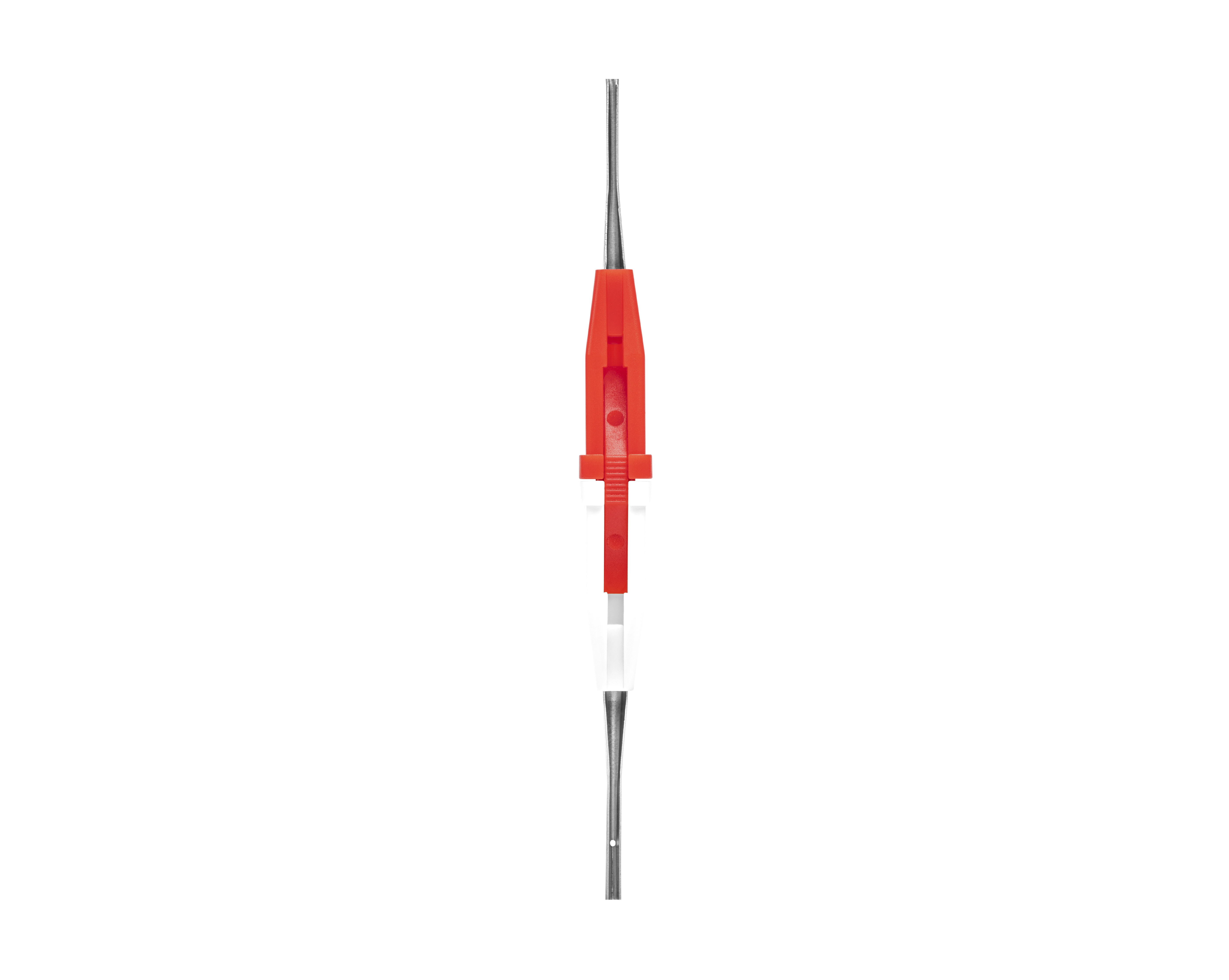

Jonard AR-910672 · 1 of 1 · Image: Jonard
Jonard AR-910672
Tools · Insertion & Extraction Tool, Contact Size 20
Specs come from the parts catalog. Wiring diagram
Documents & links
| ar-910672-insertion-and-extraction-tool?v=26 | ar-910672-insertion-and-extraction-tool?v=26 |
| Data%20Sheet%20-%20Insertion%20and%20Extraction%20Tool%20Contact%20Size%2020%20-%20AR-910672_0.pdf | Data%20Sheet%20-%20Insertion%20and%20Extraction%20Tool%20Contact%20Size%2020%20-%20AR-910672_0.pdf |
Outbound links only. HireLV does not host these files.
Reviews
Be the first to review this.
Sign in to write a review.
Add to my tools
Sign in to add this to your tools.
Specs
| Function | Insertion, Extraction |
|---|---|
| Contact Size | 20 (0.040") |
| Dimensions | 3 in x 0 in x 0 in (7.62 cm x 0 cm x 0 cm) |
| Weight | 0 lb (0 g) |
