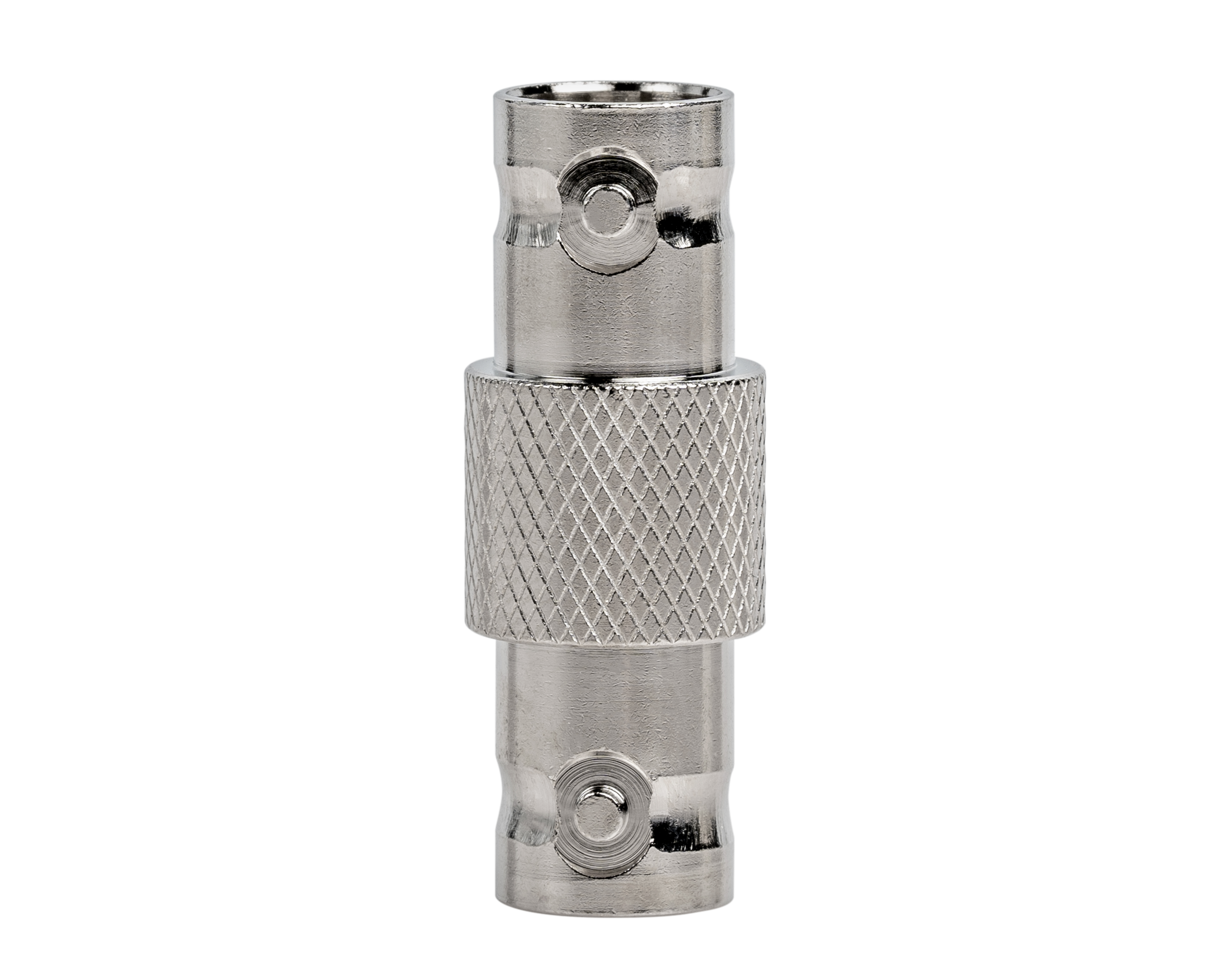

Jonard BNC-SA · 1 of 1 · Image: Jonard
Jonard BNC-SA
Tools · BNC Straight Adapter (Pack of 1)
Specs come from the parts catalog. Wiring diagram
Documents & links
| bnc-compression-connectors-pack-10?v=1187 | bnc-compression-connectors-pack-10?v=1187 |
| Data%20Sheet%20-%20BNC%20Straight%20Adapter%20%28Pack%20of%201%29%20-%20BNC-SA.pdf | Data%20Sheet%20-%20BNC%20Straight%20Adapter%20%28Pack%20of%201%29%20-%20BNC-SA.pdf |
Outbound links only. HireLV does not host these files.
Reviews
Be the first to review this.
Sign in to write a review.
Add to my tools
Sign in to add this to your tools.
Specs
| Connector Type | BNC Female Splice Adapter |
|---|---|
| Standards | IEC 60169-8 |
| Tempertaure Range | -25～+85℃ |
| Working Voltage | 500 V |
| Withstand Voltage | 1500 V |
| Center Contact Resistance | ≤ 1.5 mΩ |
| Outer Contact Resistance | ≤ 1 mΩ |
| Insulation Resistance | ≥ 5000 MΩ |
| VSWR | ≤ 1.3 |
| Insertion Loss | ≤ 0.5 dB |
| Dimensions | 0 in x 0 in x 0 in (0 cm x 0 cm x 0 cm) |
| Weight | 0.02 lb (9.08 g) |
