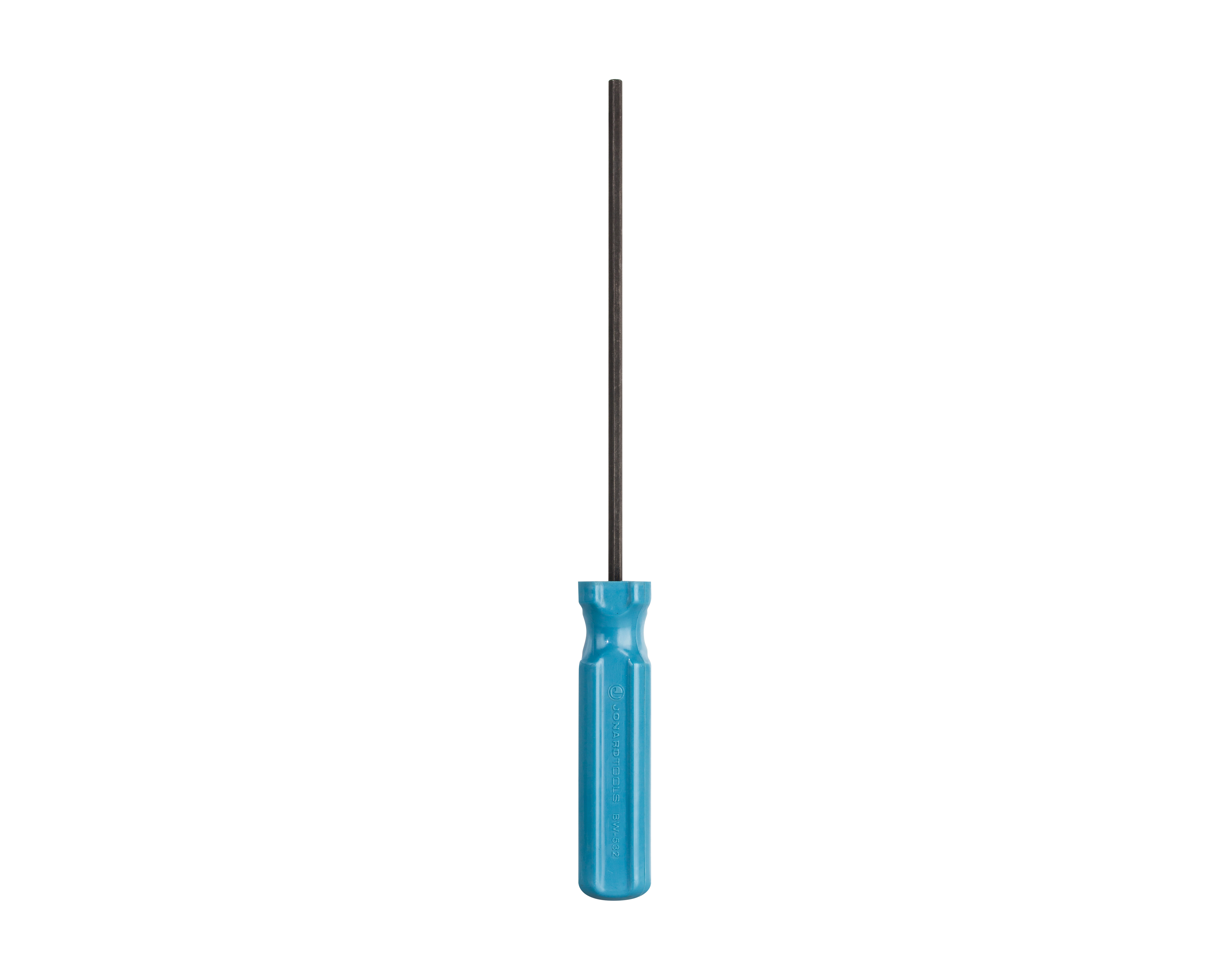

Jonard BW-532 · 1 of 1 · Image: Jonard
Jonard BW-532
Tools · Booth Wrench, 6"
Specs come from the parts catalog. Wiring diagram
Documents & links
| security-booth-wrenches-booth-wrench?v=54 | security-booth-wrenches-booth-wrench?v=54 |
| Data%20Sheet%20-%20Booth%20Wrenches.pdf | Data%20Sheet%20-%20Booth%20Wrenches.pdf |
Outbound links only. HireLV does not host these files.
Reviews
Be the first to review this.
Sign in to write a review.
Add to my tools
Sign in to add this to your tools.
Specs
| Hex Size | 5/32" (3.99mm) |
|---|---|
| Hole Diameter | 0.094" (2.39mm) |
| Hole Depth | 0.25" (6.35mm) |
| Handle Color | Blue |
| Overall Length | 9" (228.6mm) |
| Dimensions | 10 in x 1.36 in x 1.22 in (25.4 cm x 3.44 cm x 3.1 cm) |
| Weight | 0.1 lb (45.4 g) |
