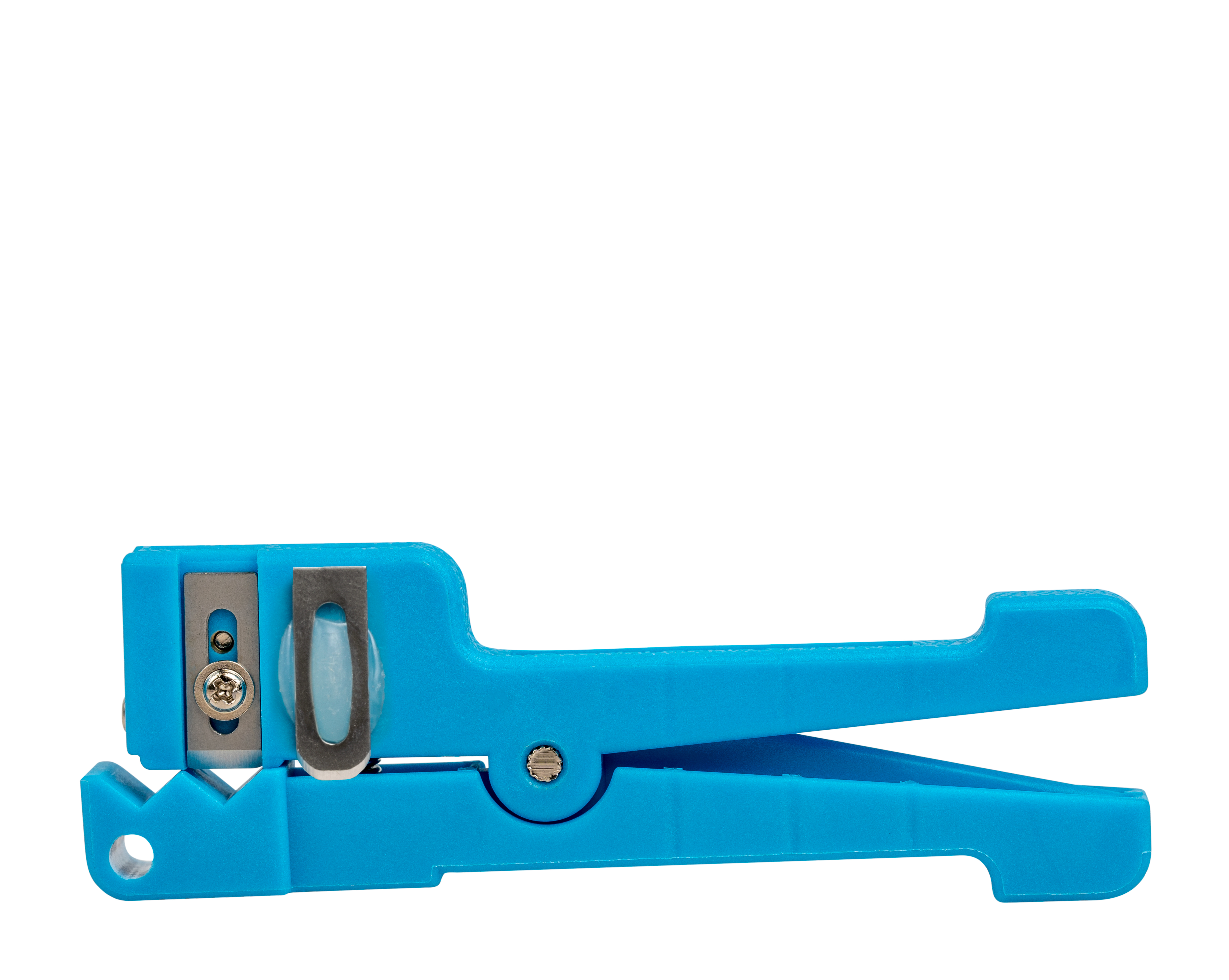

Jonard CSR-250 · 1 of 1 · Image: Jonard
Jonard CSR-250
Tools · Compact Cable Slit & Ring Tool, (0.125" - 0.250")
Specs come from the parts catalog. Wiring diagram
Documents & links
| cable-slit-ring-tool?v=1182 | cable-slit-ring-tool?v=1182 |
| Cable%20Slit%20and%20Ring%20Tools%20-%20Data%20Sheet.pdf | Cable%20Slit%20and%20Ring%20Tools%20-%20Data%20Sheet.pdf |
Outbound links only. HireLV does not host these files.
Reviews
Be the first to review this.
Sign in to write a review.
Add to my tools
Sign in to add this to your tools.
Specs
| Cut Type | Ring, Slit |
|---|---|
| Cable Type | Jacket |
| Cable Diameter | 0.125" - 0.250" (3.3 mm - 6.4 mm) |
| Dimensions | 3.4 in x 1.1 in x 0.5 in (8.64 cm x 2.79 cm x 1.27 cm) |
| Weight | 0.04 lb (18.5 g) |
