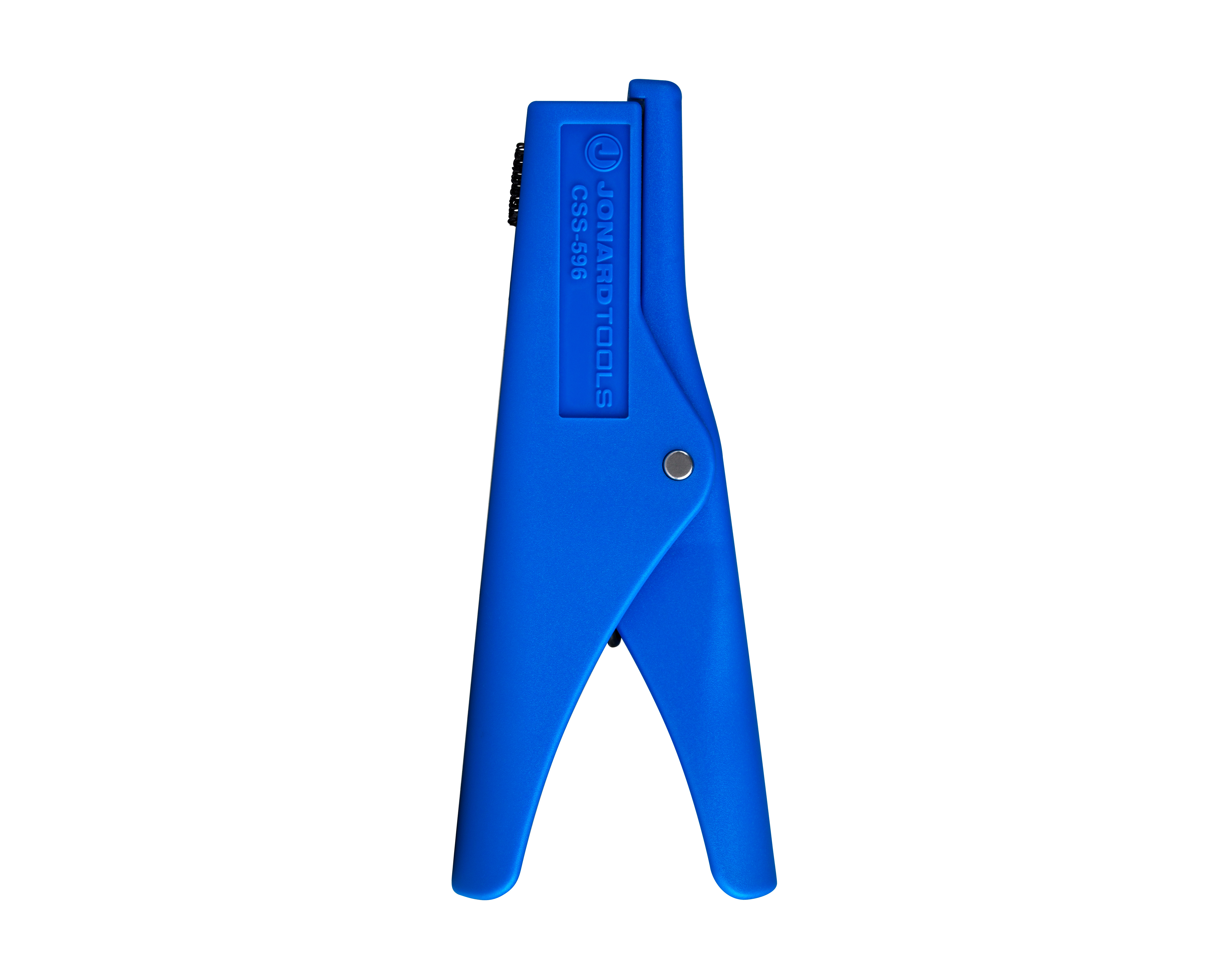

Jonard CSS-596 · 1 of 1 · Image: Jonard
Jonard CSS-596
Tools · COAX Cable Stub End Stripper (RG59/RG6)
Specs come from the parts catalog. Wiring diagram
Documents & links
| stub-end-strippers-stub-end-stripper?v=78 | stub-end-strippers-stub-end-stripper?v=78 |
| Data%20Sheet%20-%20Coax%20Stub%20End%20Strippers_FINAL%202019.pdf | Data%20Sheet%20-%20Coax%20Stub%20End%20Strippers_FINAL%202019.pdf |
Outbound links only. HireLV does not host these files.
Reviews
Be the first to review this.
Sign in to write a review.
Add to my tools
Sign in to add this to your tools.
Specs
| Cable Type | COAX |
|---|---|
| Cable Size | RG59 and RG6 |
| Strip Length | Jacket: 0.25" (6.35 mm), Shield & Dielectric: 0.3125" (7.9375 mm) |
| Dimensions | 4 in x 1 in x 1 in (10.16 cm x 2.54 cm x 2.54 cm) |
| Weight | 0.08 lb (36.32 g) |
