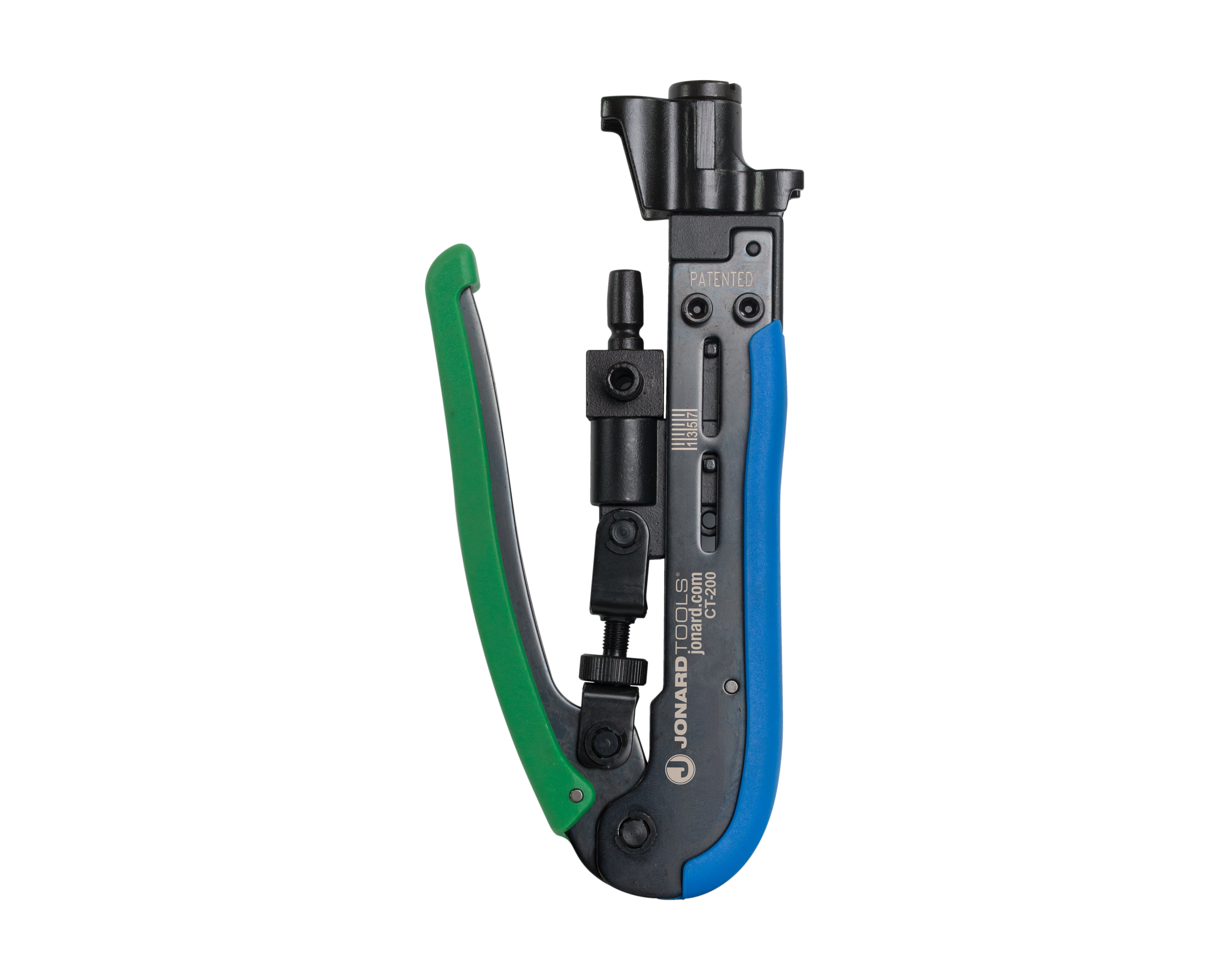

Jonard CT-200 · 1 of 1 · Image: Jonard
Jonard CT-200
Tools · Universal Compression Tool
Specs come from the parts catalog. Wiring diagram
Documents & links
| compression-tools-compression-tool-blade?v=83 | compression-tools-compression-tool-blade?v=83 |
| Data%20Sheet%20-%20Compression%20Tools_5.pdf | Data%20Sheet%20-%20Compression%20Tools_5.pdf |
Outbound links only. HireLV does not host these files.
Reviews
Be the first to review this.
Sign in to write a review.
Add to my tools
Sign in to add this to your tools.
Specs
| Connector Type | F Short, F Long, BNC, RCA |
|---|---|
| Cable Types | RG59, RG6, RG7, RG11 |
| Minimum BNC Connector Length | 1.5" |
| Material | High carbon steel, black oxide finish |
| Length | 6-3/4" (171 mm) |
| Replacement Plunger | 21881 |
| Compatible PPC Connectors | CMP6, CMP6Q, CMP59Q, CMP11, EX6XL, EX59XL, EX59XLHE, EX6XLW9, EX6LP, EX7, EX7N716, EX11, EX11N716, EX320QR, EX320N716, EX6/59, EX6W8, EX59HE, EX6P, EX11N716PLPLUS, CMPRCA6, EXBNC6, EXBNC9167 |
| Dimensions | 7 in x 2 in x 1 in (17.78 cm x 5.08 cm x 2.54 cm) |
| Weight | 0.95 lb (431.3 g) |
