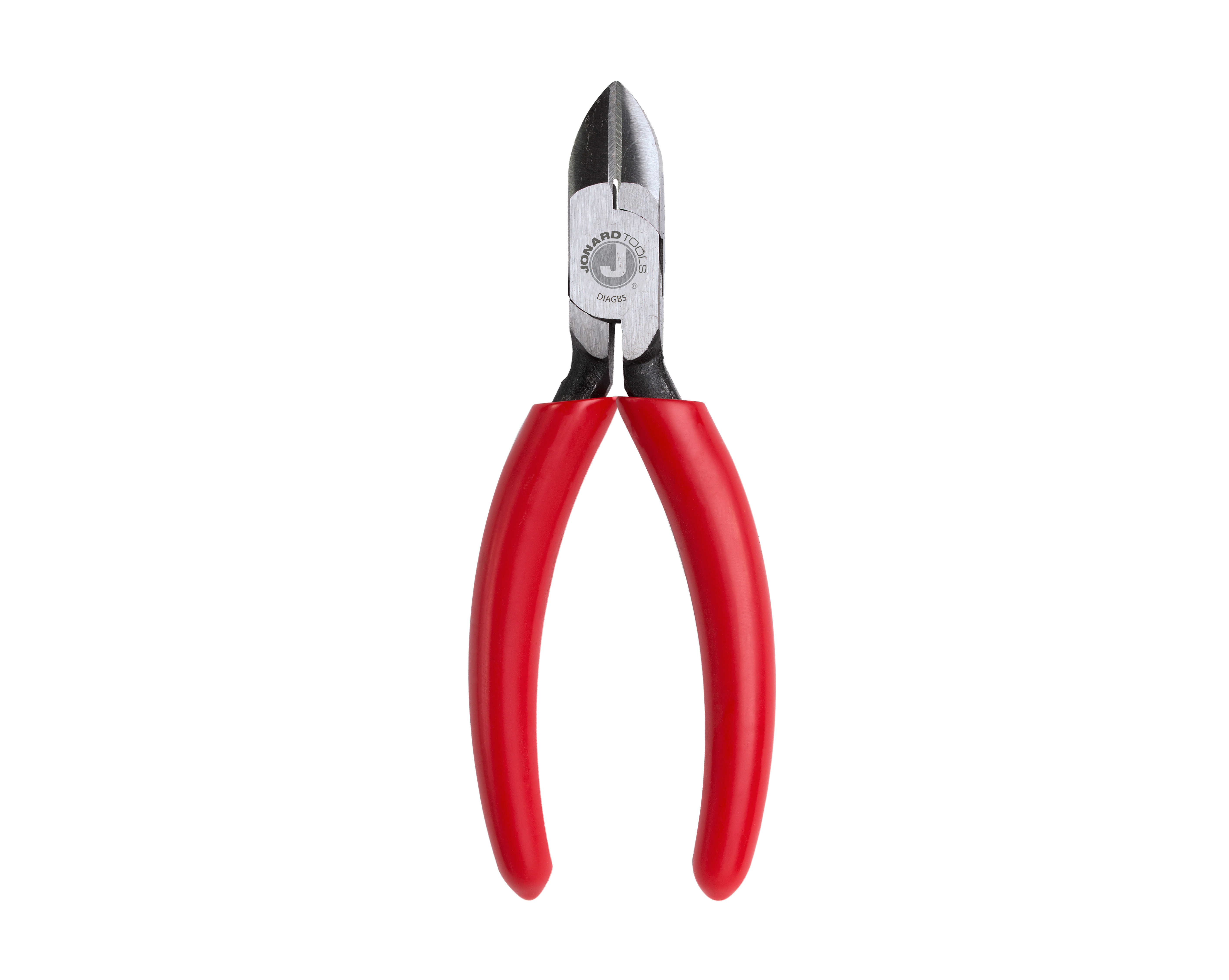

Jonard DIAGB5 · 1 of 1 · Image: Jonard
Jonard DIAGB5
Tools · Diagonal General Use Pliers
Specs come from the parts catalog.
Documents & links
| diagonal-pliers-diagonal-pliers?v=96 | diagonal-pliers-diagonal-pliers?v=96 |
| Data%20Sheet%20-%20Diagonal%20General%20Use%20Pliers%20-%20DIAGB5.pdf | Data%20Sheet%20-%20Diagonal%20General%20Use%20Pliers%20-%20DIAGB5.pdf |
Outbound links only. HireLV does not host these files.
Reviews
Be the first to review this.
Sign in to write a review.
Add to my tools
Sign in to add this to your tools.
Specs
| Cut Type | Diagonal |
|---|---|
| Jaw Length | 3/4" (19.05mm) |
| Jaw Thickness | 11/32" (8.73mm) |
| Jaw Width | 1/2" (12.70mm) |
| Material | Chrome Vanadium Steel |
| Standards | ASME B107.11 and ISO 5749 |
| Dimensions | 5 in x 2 in x 0.4 in (12.7 cm x 5.08 cm x 1.02 cm) |
| Weight | 0.18 lb (81.72 g) |
