Image: Jonard · Field photos are credited to the uploader

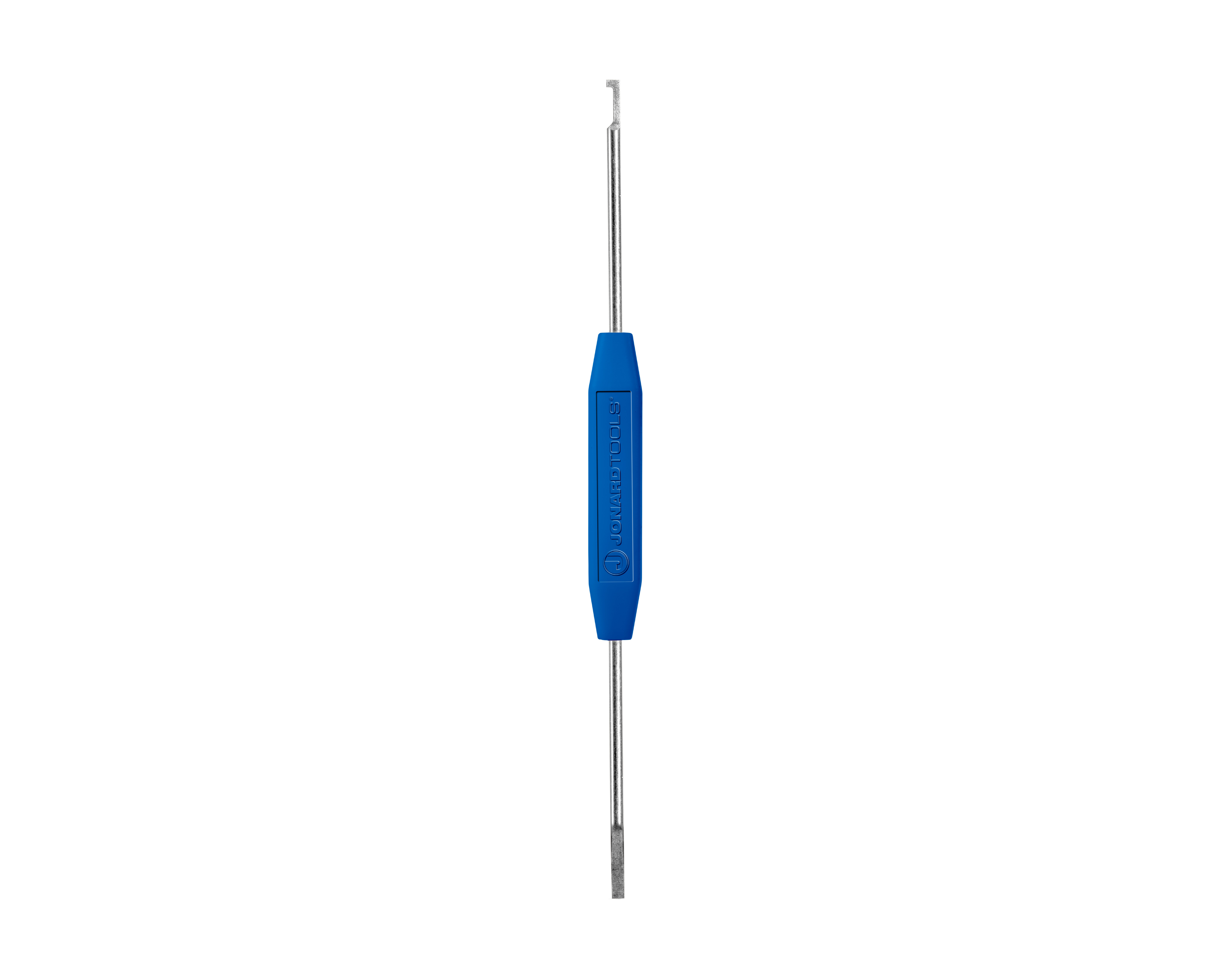

Jonard DTR-1 · 1 of 1 · Image: Jonard
Jonard DTR-1
Tools · Wedgelock Removal Tool, DT and AT Series Connectors
Specs come from the parts catalog.
Documents & links
| dtr-1?v=1701 | dtr-1?v=1701 |
| DTR-1%20-%20Wedgelock%20Removal%20Tool%2C%20DT%20and%20AT%20Series%20Connectors%20-%20Data%20Sheet.pdf | DTR-1%20-%20Wedgelock%20Removal%20Tool%2C%20DT%20and%20AT%20Series%20Connectors%20-%20Data%20Sheet.pdf |
Outbound links only. HireLV does not host these files.
Reviews
Be the first to review this.
Sign in to write a review.
Add to my tools
Sign in to add this to your tools.
Specs
| Function | Contact Release/Wedgelock Removal |
|---|---|
| Configuration | Double ended removal tool with hook tip & screwdriver tip |
| Compatible Connector Type | Deutsch DT Series Connectors (DT, DTM, DTP, DTV, DRB, DRCP, and Strike Connectors) and Amphenol AT Series Connectors (AT, ATM, ATP Connectors) |
| Hook Length | 2.25" |
| Screwdriver Length | 2.25" |
| Total Length | 7.25" |
| Dimensions | 7 in x 0 in x 0 in (17.78 cm x 0 cm x 0 cm) |
| Weight | 0.04 lb (18.16 g) |
