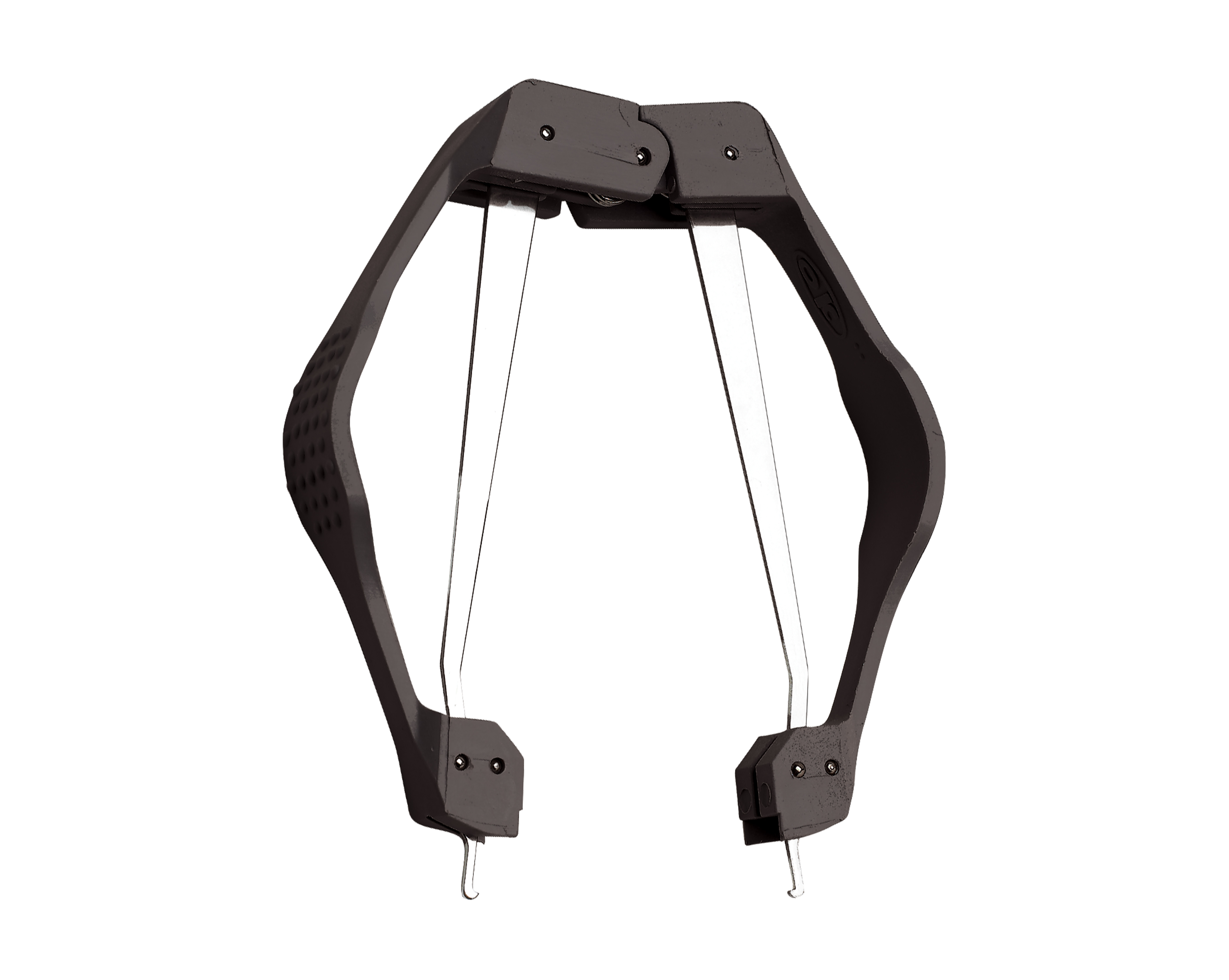

Jonard EX-5 · 1 of 1 · Image: Jonard
Jonard EX-5
Tools · PLCC Extractor (20-128 Pins), ESD Safe
Specs come from the parts catalog.
Documents & links
| ic-extractors-plcc-extractor?v=119 | ic-extractors-plcc-extractor?v=119 |
| Data%20Sheet%20-%20PLCC%20Extractors_2.pdf | Data%20Sheet%20-%20PLCC%20Extractors_2.pdf |
Outbound links only. HireLV does not host these files.
Reviews
Be the first to review this.
Sign in to write a review.
Add to my tools
Sign in to add this to your tools.
Specs
| Function | Extraction |
|---|---|
| Chip Package Type | PLCC |
| Pin Count | 20-128 |
| Material | Stainless Steel |
| Dimensions | 4 in x 2.5 in x 0.62 in (10.16 cm x 6.35 cm x 1.57 cm) |
| Weight | 0.05 lb (21.792 g) |
