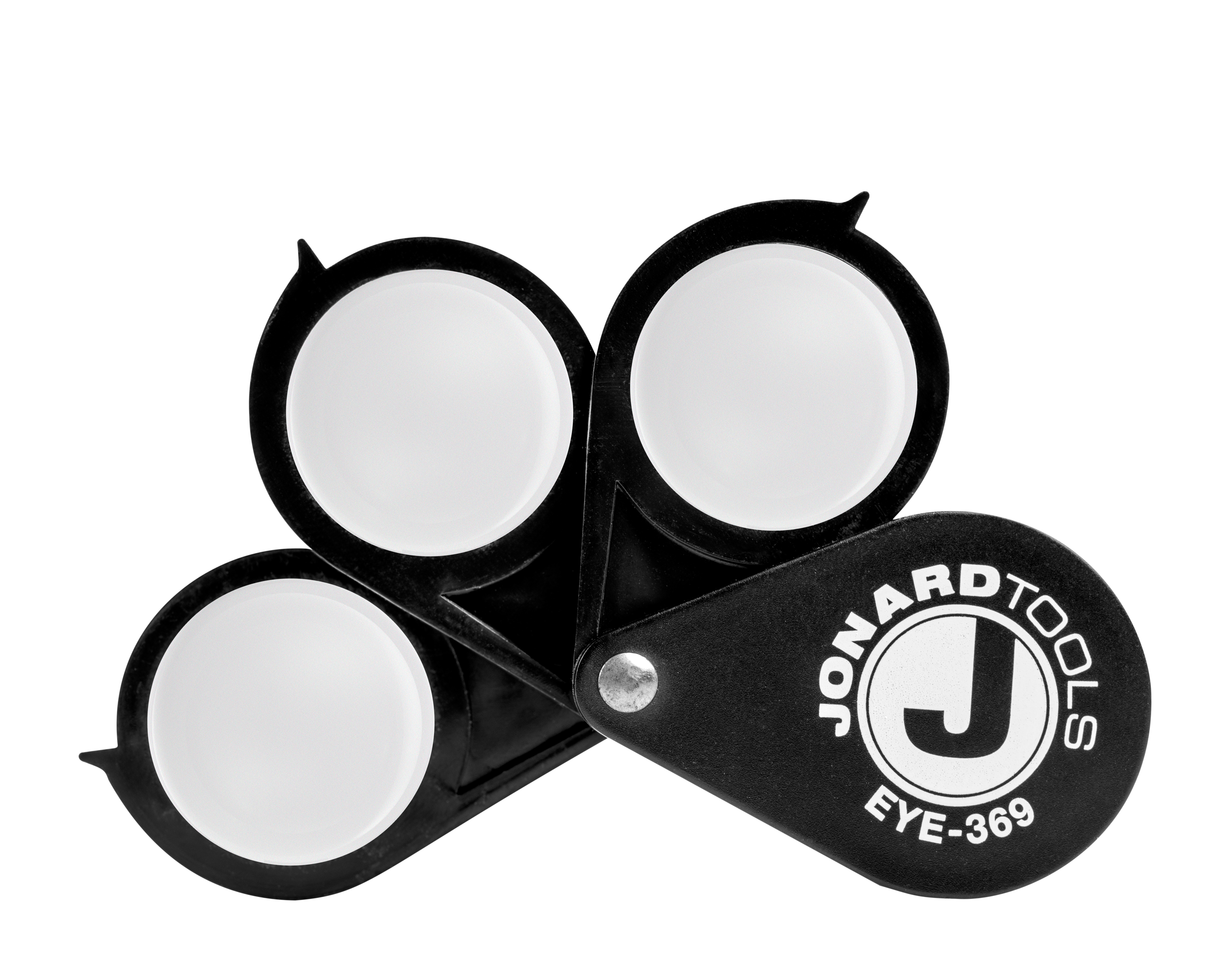

Jonard EYE-369 · 1 of 1 · Image: Jonard
Jonard EYE-369
Tools · Fiber Optic Eyeloop, X3, X6, X9 Magnification
Specs come from the parts catalog. Wiring diagram
Documents & links
| eye-369?v=1348 | eye-369?v=1348 |
| Data%20Sheet%20-%20Fiber%20Optic%20Eyeloop%2C%20X3%2C%20X6%2C%20X9%20Magnification%20-%20EYE-369.pdf | Data%20Sheet%20-%20Fiber%20Optic%20Eyeloop%2C%20X3%2C%20X6%2C%20X9%20Magnification%20-%20EYE-369.pdf |
Outbound links only. HireLV does not host these files.
Reviews
Be the first to review this.
Sign in to write a review.
Add to my tools
Sign in to add this to your tools.
Specs
| Magnification Levels | X3, X6, X9 |
|---|---|
| Lenses | 3, fold-out |
| Color | Black |
| Dimensions | 2.24 in x 1.46 in x 1.08 in (5.68 cm x 3.7 cm x 2.74 cm) |
| Weight | 0.06 lb (28.148 g) |
