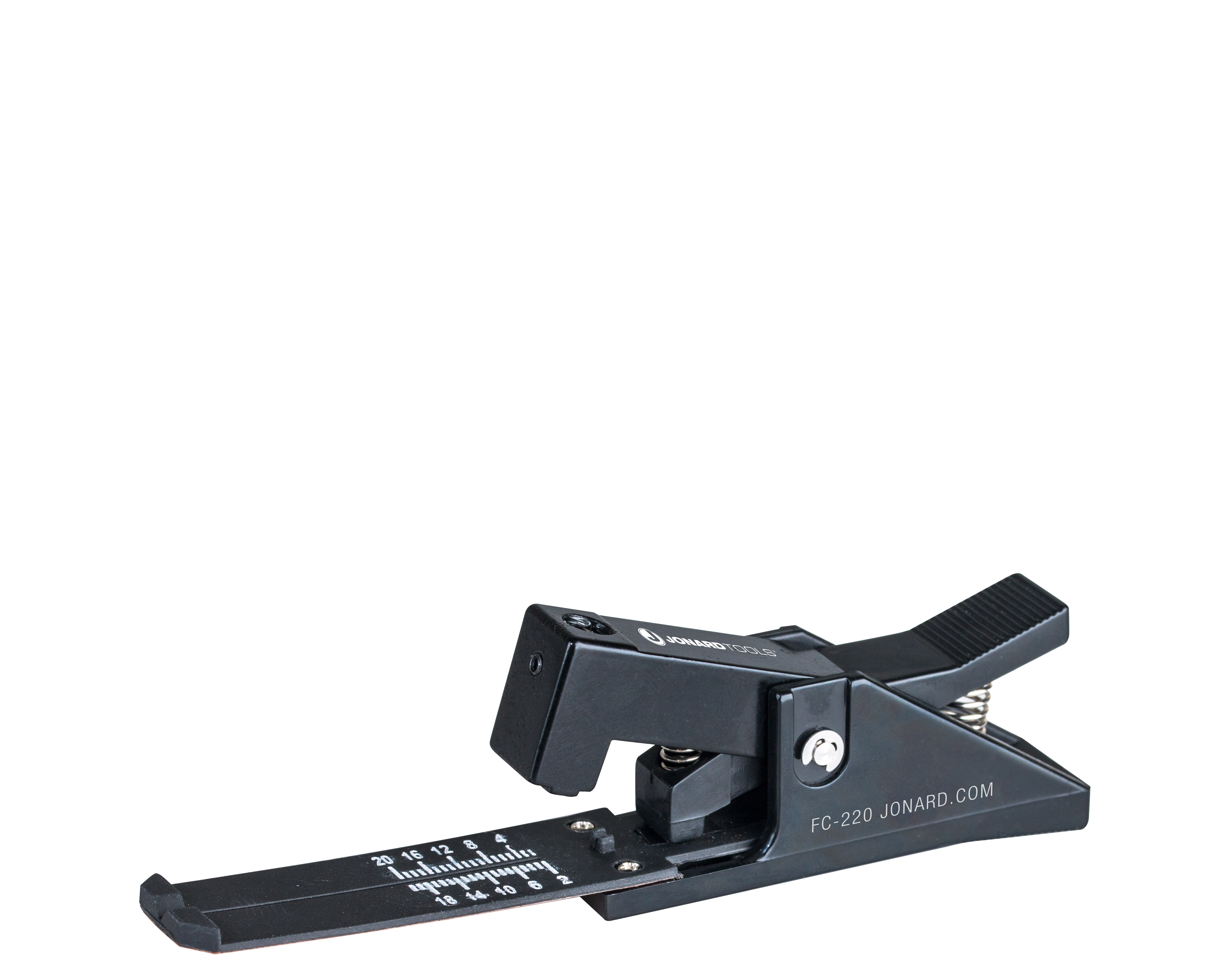

Jonard FC-220 · 1 of 1 · Image: Jonard
Jonard FC-220
Tools · Fiber Cleaver
Specs come from the parts catalog. Wiring diagram
Documents & links
| fc-220-fiber-cleaver?v=121 | fc-220-fiber-cleaver?v=121 |
| Data%20Sheet%20-%20Fiber%20Cleaver%20-%20FC-220.pdf | Data%20Sheet%20-%20Fiber%20Cleaver%20-%20FC-220.pdf |
Outbound links only. HireLV does not host these files.
Reviews
Be the first to review this.
Sign in to write a review.
Add to my tools
Sign in to add this to your tools.
Specs
| Fiber Types | 250 µm coated, 900 µm buffered |
|---|---|
| Cladding Diameter | 125 µm |
| Cleave Length | 2.0 mm to 20.0 mm (0.079" to 0.79") |
| Blade | Carbide, up to 6,000 cleaves |
| Replacement Parts | FC-4 blade, FC-65 leaf spring |
| Operating Temperature | 0 to 40°C |
| Storage Temperature | -20 to 60°C |
| Dimensions | 7 in x 2 in x 1 in (17.78 cm x 5.08 cm x 2.54 cm) |
| Weight | 0.31 lb (140.74 g) |
