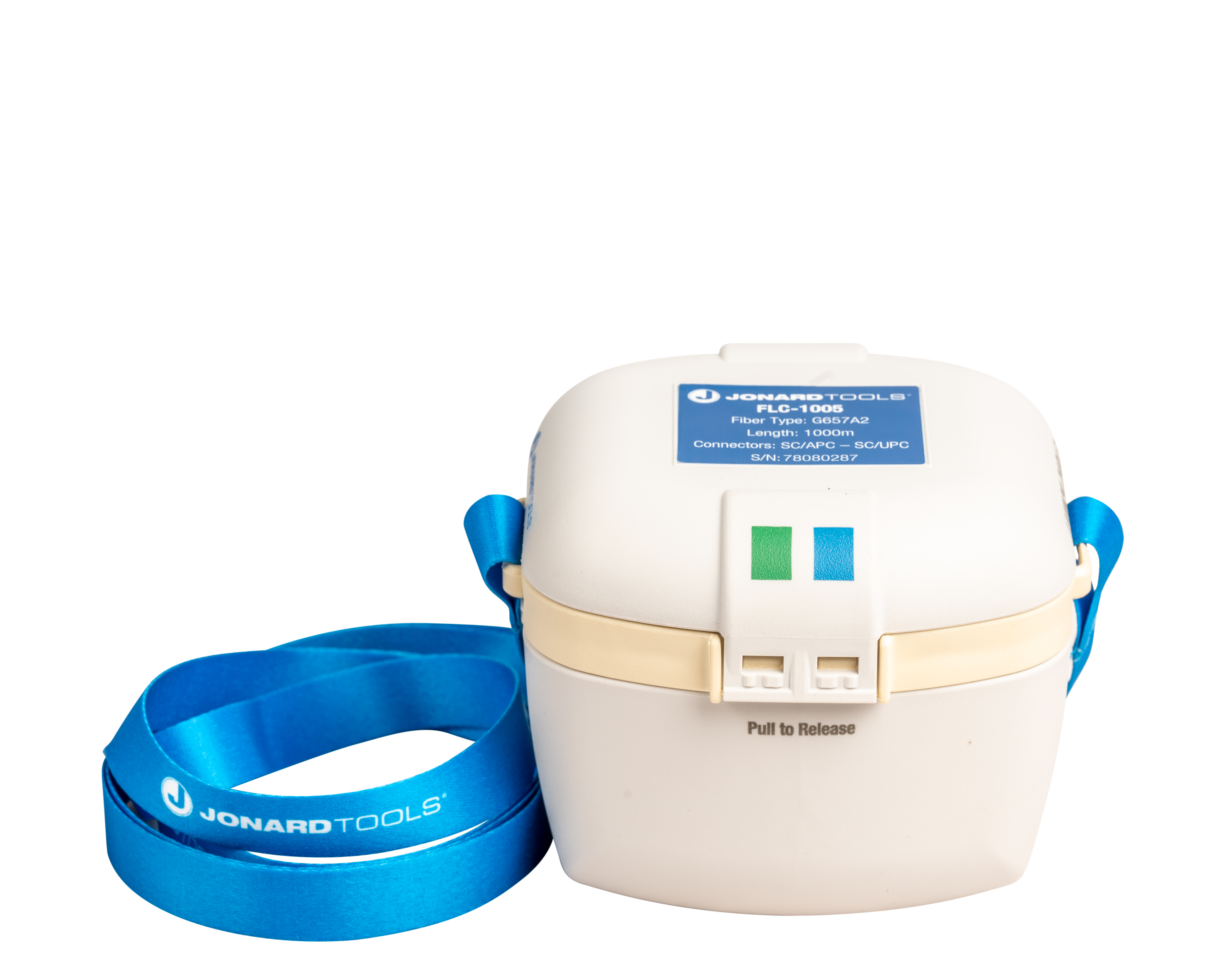

Jonard FLC-1005 · 1 of 1 · Image: Jonard
Jonard FLC-1005
Tools · Singlemode Fiber Optic Launch Cable, 1000 m, SC/APC-SC/UPC
Specs come from the parts catalog. Wiring diagram
Documents & links
| fiber-optic-launch-cables?v=1184 | fiber-optic-launch-cables?v=1184 |
| Data%20Sheet%20-%20Singlemode%20Fiber%20Optic%20Launch%20Boxes%20-%20FLC_2.pdf | Data%20Sheet%20-%20Singlemode%20Fiber%20Optic%20Launch%20Boxes%20-%20FLC_2.pdf |
Outbound links only. HireLV does not host these files.
Reviews
Be the first to review this.
Sign in to write a review.
Add to my tools
Sign in to add this to your tools.
Specs
| Cable Length | 3281 ft (1000 m) |
|---|---|
| Connector Types | SC/APC, SC/UPC |
| Input/Output Length | 4.9 ft (1.5 m) |
| Max Insertion Loss @ 1310 nm | ≤ 0.35 dB/km |
| Max Insertion Loss @ 1550 nm | ≤ 0.22 dB/km |
| Max Insertion Loss @ 800 nm | ≤ 2.50 dB/km |
| Max Insertion Loss @ 1300 nm | ≤ 0.70 dB/km |
| SM Connector Insertion Loss | ≤ 0.1 dB |
| MM Connector Insertion Loss | ≤ 0.15 dB |
| Return Loss | RL ≥ 65 dB (APC) |
| Fiber Type | G657A2 |
| Dimensions | 3281 in x 0 in x 0 in (8333.74 cm x 0 cm x 0 cm) |
| Weight | 0 lb (0 g) |
