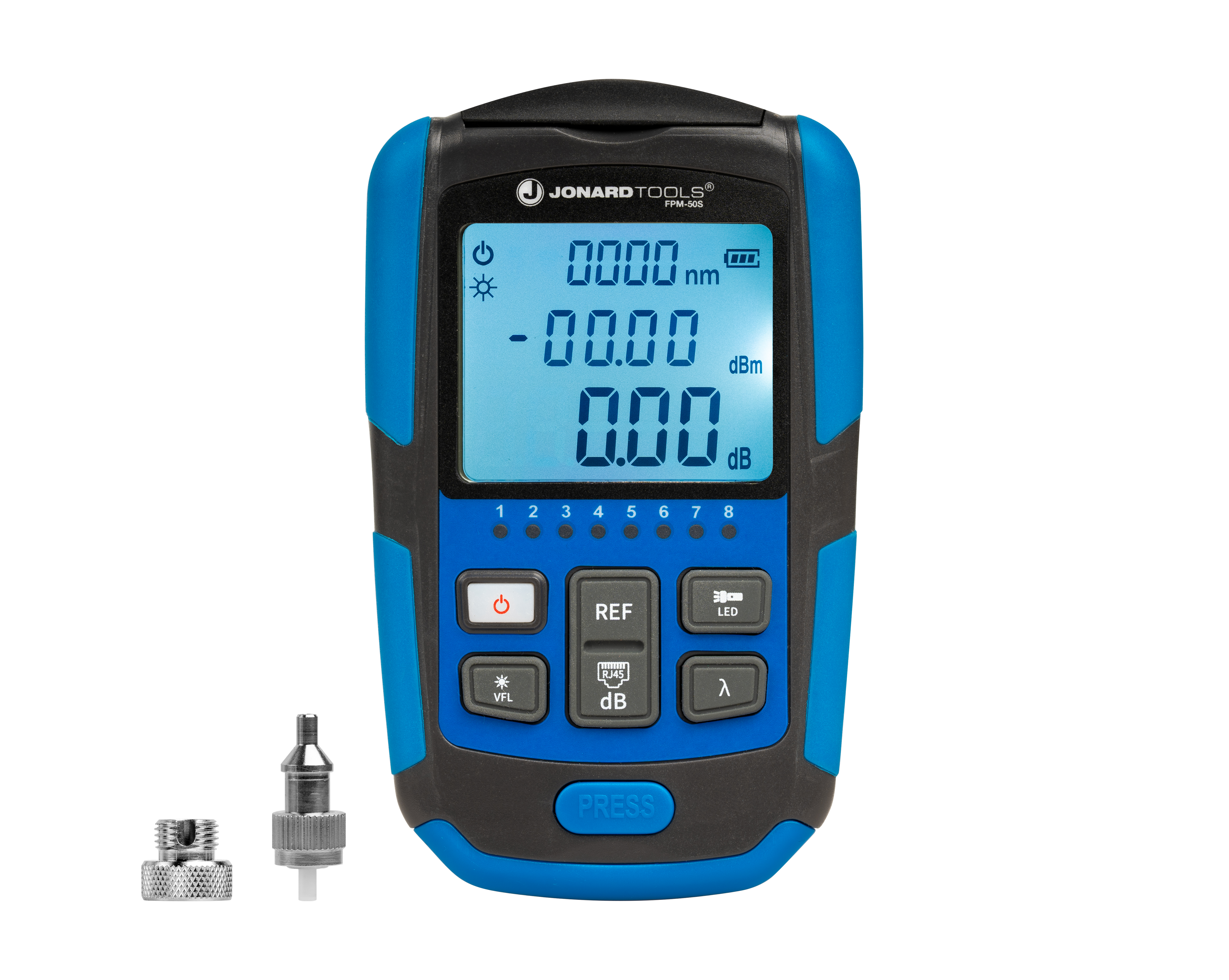

Jonard FPM-50S · 1 of 1 · Image: Jonard
Jonard FPM-50S
Tools · Mini Optical Power Meter, (-50 to +26dBm)
Specs come from the parts catalog.
Documents & links
| fpm-50s?v=1340 | fpm-50s?v=1340 |
| Data%20Sheet%20-%20Mini%20Optical%20Power%20Meter%2C%20%28-50%20to%20%2B26dBm%29%20-%20FPM-50S_1.pdf | Data%20Sheet%20-%20Mini%20Optical%20Power%20Meter%2C%20%28-50%20to%20%2B26dBm%29%20-%20FPM-50S_1.pdf |
Outbound links only. HireLV does not host these files.
Reviews
Be the first to review this.
Sign in to write a review.
Add to my tools
Sign in to add this to your tools.
Specs
| Connector Types | FC (APC/PC/UPC) & LC (PC/UPC) |
|---|---|
| Calibrated Wavelengths (nm) | 850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625, 1650 nm, ≤ ± 0.2 dB |
| Detector Type | InGaAs |
| Measurement Range | -50 dBm to +26 dBm |
| Single Mode Range | 980, 1270, 1310, 1490, 1550, 1577, 1625, 1650 nm |
| Multi Mode Range | 850, 1300 nm |
| XGSPON Range | 1270, 1577 nm |
| Resolution | 0.01 dB |
| Operating Time | ≥ 120 hours |
| Battery Type | (2) AAA 1.5V Alkaline Batteries |
| Dimensions | 4 in x 2 in x 1 in (10.16 cm x 5.08 cm x 2.54 cm) |
| Weight | 0.3 lb (136.2 g) |
