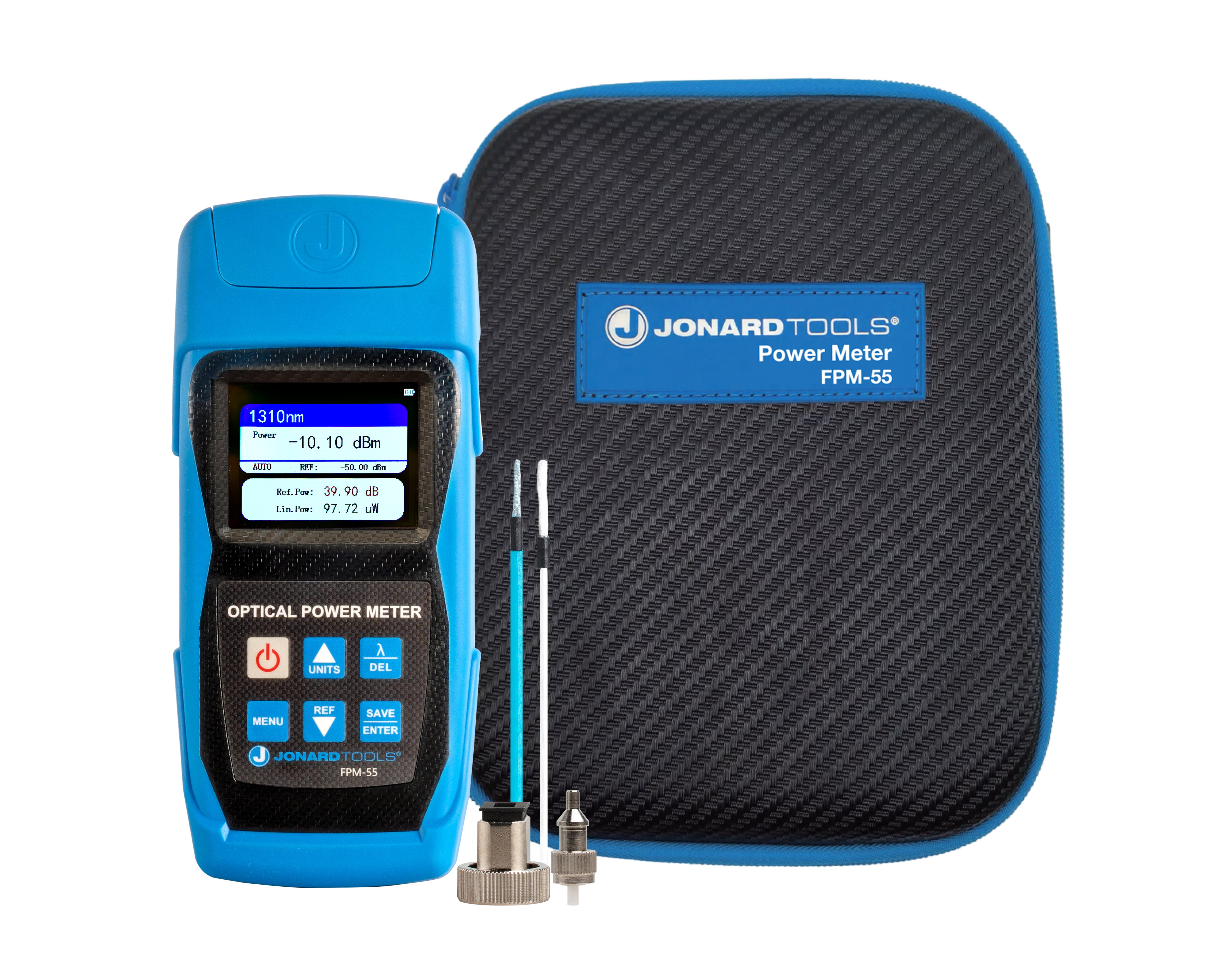

Jonard FPM-55 · 1 of 1 · Image: Jonard
Jonard FPM-55
Tools · Fiber Optic Power Meter with Data Storage (-50 to +26 dBm) and FC/SC/LC Adapters
Specs come from the parts catalog.
Documents & links
| fiber-optic-testers-power-meter?v=1028 | fiber-optic-testers-power-meter?v=1028 |
| Light%20Source%20Setup%20Quick%20Reference%20Card%20-%20Outlines_0.pdf | Light%20Source%20Setup%20Quick%20Reference%20Card%20-%20Outlines_0.pdf |
Outbound links only. HireLV does not host these files.
Reviews
Be the first to review this.
Sign in to write a review.
Add to my tools
Sign in to add this to your tools.
Specs
| Detector Type | InGaAs |
|---|---|
| Wavelength Test Range (nm) | 800 ~ 1700 |
| Measurement Range (dBm) | +26 ~ -50 |
| Default Calibration Wavelength (nm) | 850/980/1300/1310/1490/1550/1625/1650 |
| Minimum Display Resolution (dB) | 0.01 |
| Linearity (dB) | ≤ 0.1 |
| Uncertainty | ± 0.15 |
| Frequency Identification (Hz) | CW, 270 Hz, 330 Hz, 1000 Hz, 2000 Hz |
| Measurement Unit | dBm, dB, xW |
| Optical Connector | FC, SC |
| Communication Interface | USB-C |
| Data Storage (no. of entries) | 2000 |
| Wavelength Identification | Yes, using our FLS-50 or FLS-55 |
| Display Size | 2.4-inch LCD |
| Power Supply | 1.5V*3 AA alkaline batteries |
| Continuous Working time | ≥50 hr |
| Auto turn-off (min) | OFF, 10, 20, 30 |
| Operating Temperature (°C) | -10 ~ +60 |
| Storage Temperature (°C) | -25 ~ +70 |
| Dimensions | 9 in x 7 in x 3 in (22.86 cm x 17.78 cm x 7.62 cm) |
| Weight | 1.74 lb (789.96 g) |
