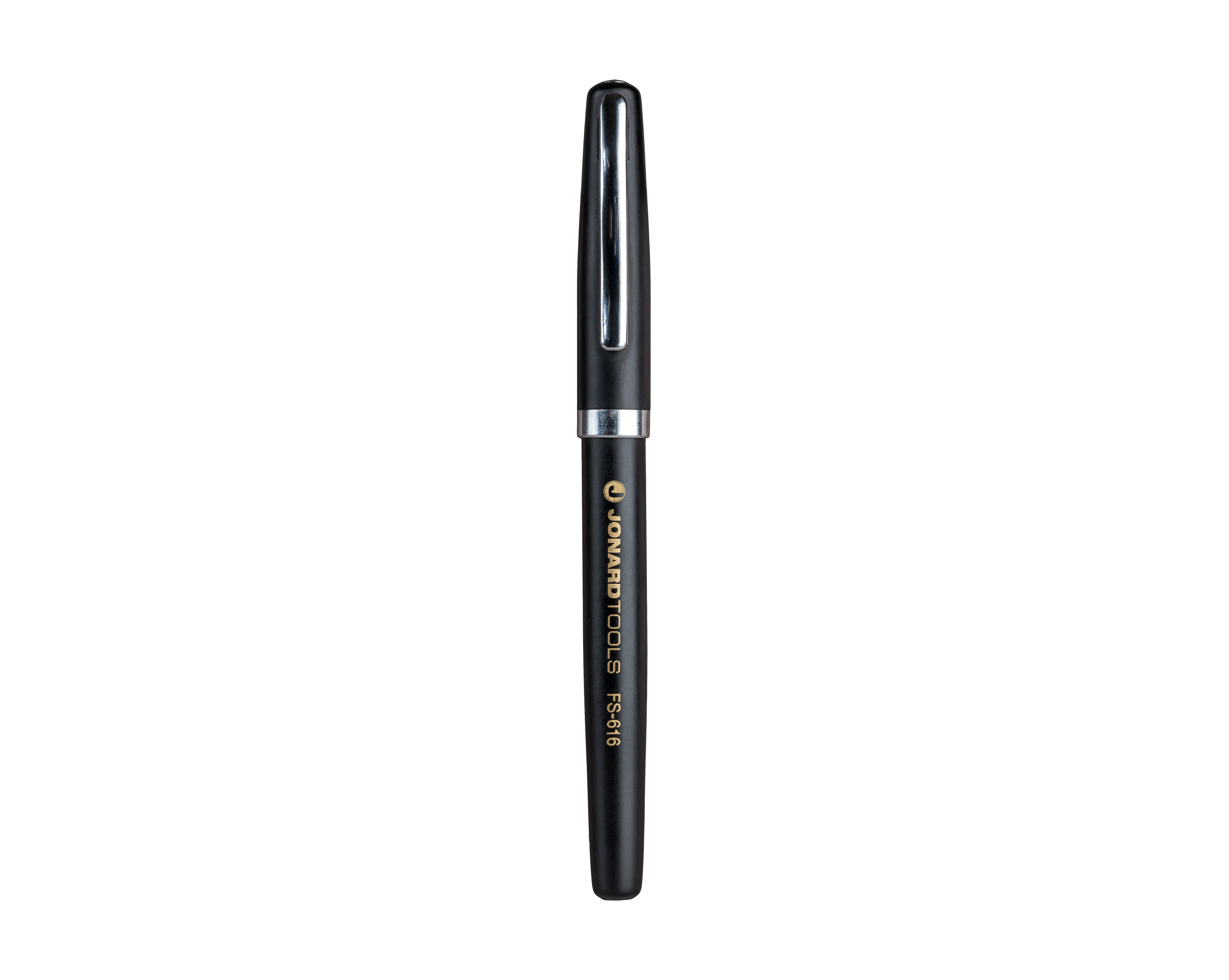

Jonard FS-616 · 1 of 1 · Image: Jonard
Jonard FS-616
Tools · Fiber Optic Scribe
Specs come from the parts catalog. Wiring diagram
Documents & links
| fs-616-fiber-optic-scribe?v=136 | fs-616-fiber-optic-scribe?v=136 |
| Data%20Sheet%20-%20Fiber%20Optic%20Scribe%20-%20FS-616.pdf | Data%20Sheet%20-%20Fiber%20Optic%20Scribe%20-%20FS-616.pdf |
Outbound links only. HireLV does not host these files.
Reviews
Be the first to review this.
Sign in to write a review.
Add to my tools
Sign in to add this to your tools.
Specs
| Blade Material | Carbide |
|---|---|
| Handle Material | Aluminum |
| Diameter | 0.41" (10.41 mm) |
| Blade Width | 6 mm |
| Bevel Angle | 35° |
| Dimensions | 5 in x 0.5 in x 0.5 in (12.7 cm x 1.27 cm x 1.27 cm) |
| Weight | 0.05 lb (22.7 g) |
