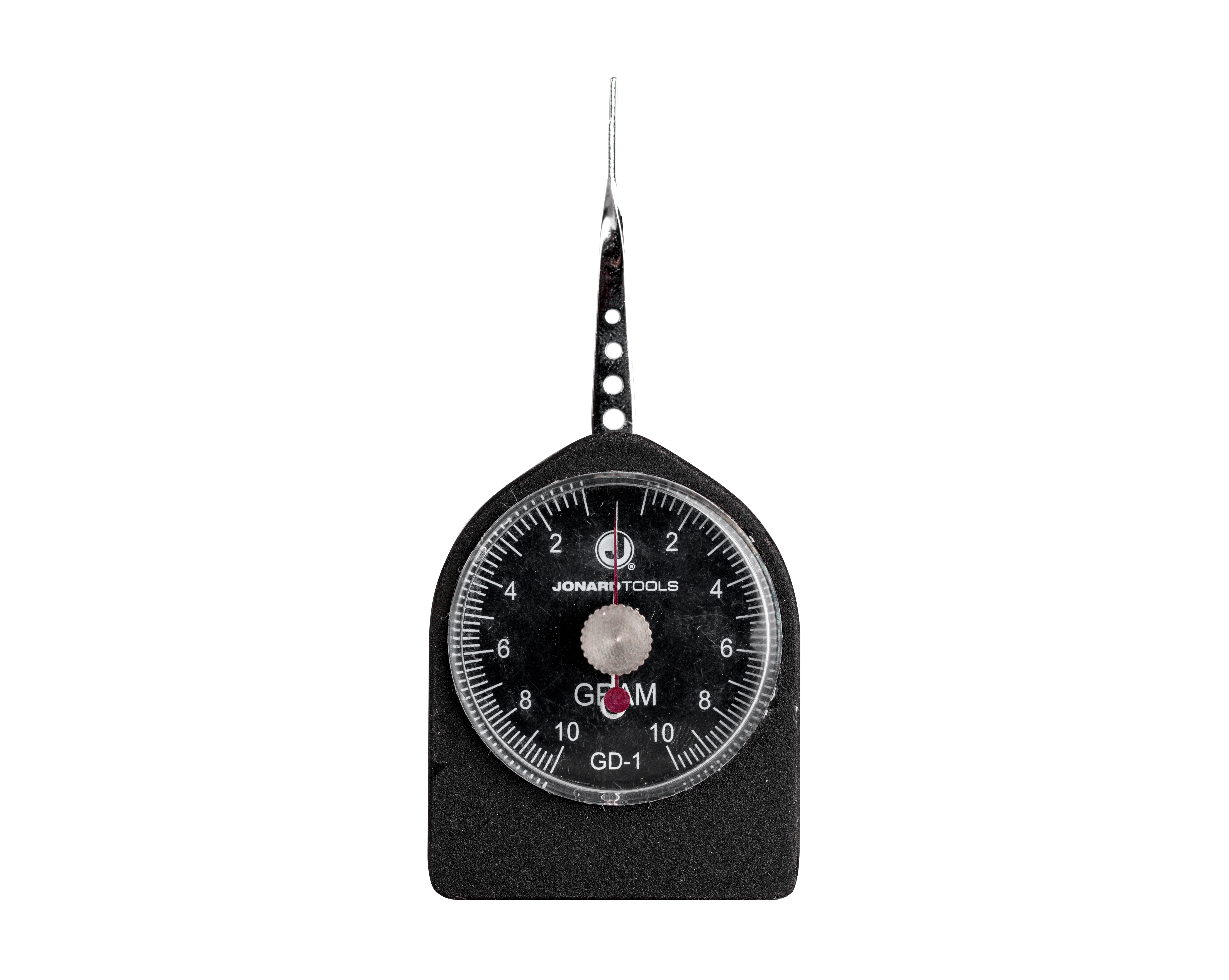

Jonard GD-1 · 1 of 1 · Image: Jonard
Jonard GD-1
Tools · Dynamometer Force Gauge, 0-10 g
Specs come from the parts catalog.
Documents & links
| dial-force-gauges-dial-force-gauge?v=143 | dial-force-gauges-dial-force-gauge?v=143 |
| 143 | 143 |
Outbound links only. HireLV does not host these files.
Reviews
Be the first to review this.
Sign in to write a review.
Add to my tools
Sign in to add this to your tools.
Specs
| Lever Tip Style | Flat |
|---|---|
| Tip Width | 0.104" (2.65 mm) |
| Tip Thickness | 0.0335" (0.85 mm) |
| Dial Diameter | 1 1/2" (3.81 cm) |
| Accuracy | +- 0.20 g |
| Graduation | 0.20 g |
| Range | 0-10 g |
| Maximum Capacity | 10 g |
| Dimensions | 3.75 in x 1.63 in x 1.13 in (9.53 cm x 4.13 cm x 2.86 cm) |
| Weight | 0.2 lb (90.8 g) |
