Image: Jonard · Field photos are credited to the uploader

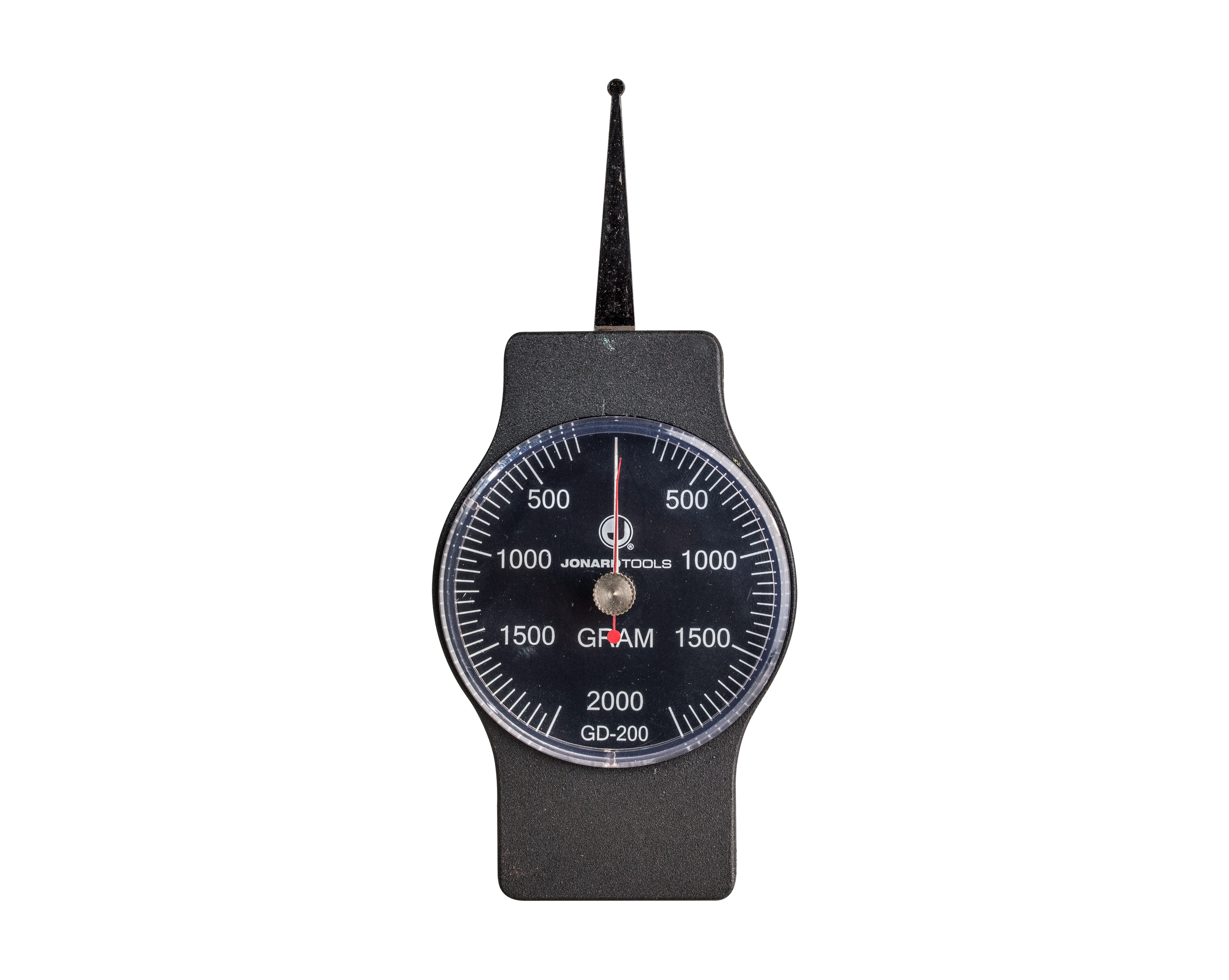

Jonard GD-200 · 1 of 1 · Image: Jonard
Jonard GD-200
Tools · Dynamometer Force Gauge, 300-2000 g
Specs come from the parts catalog.
Documents & links
| dial-force-gauges-dial-force-gauge?v=147 | dial-force-gauges-dial-force-gauge?v=147 |
| 147 | 147 |
Outbound links only. HireLV does not host these files.
Reviews
Be the first to review this.
Sign in to write a review.
Add to my tools
Sign in to add this to your tools.
Specs
| Lever Tip Style | Round |
|---|---|
| Tip Diameter | 0.140" (3.55 mm) |
| Tip Thickness | 0.0622" (1.58 mm) |
| Dial Diameter | 2 1/2" (6.35 cm) |
| Accuracy | +- 50 g |
| Graduation | 50.00 g |
| Max Capacity | 2000 g |
| Range | 300-2000 g |
| Dimensions | 6.25 in x 2.75 in x 1.38 in (15.88 cm x 6.99 cm x 3.49 cm) |
| Weight | 0.65 lb (295.1 g) |
