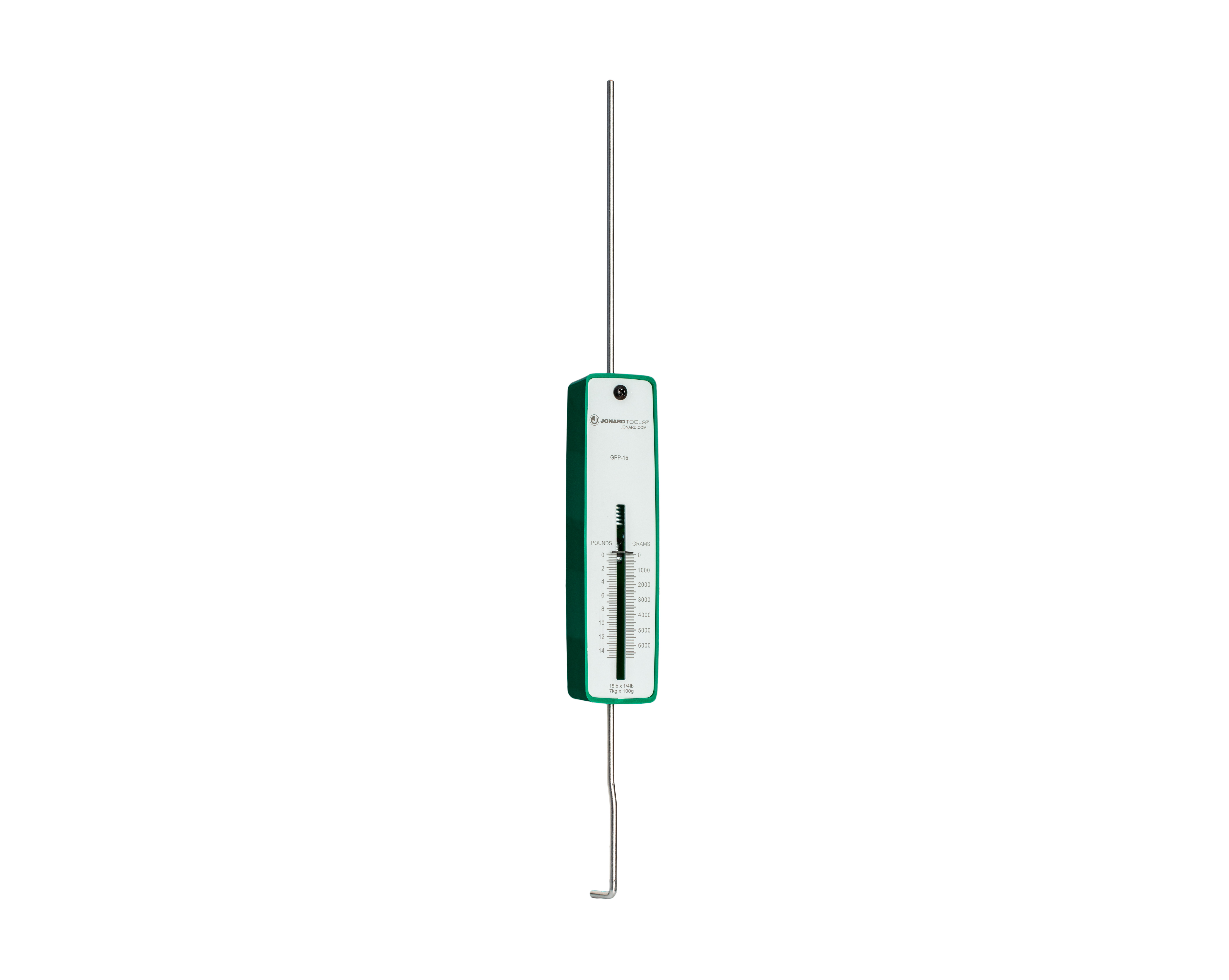

Jonard GPP-15 · 1 of 1 · Image: Jonard
Jonard GPP-15
Tools · Push-Pull Economy Force Gauge, 0-6804 g/0-15 lb
Specs come from the parts catalog. Wiring diagram
Documents & links
| push-pull-force-gauges-push-pull-force-gauge?v=155 | push-pull-force-gauges-push-pull-force-gauge?v=155 |
| Data%20Sheet%20-%20Economy%20Push-Pull%20Tension%20Gauges.pdf | Data%20Sheet%20-%20Economy%20Push-Pull%20Tension%20Gauges.pdf |
Outbound links only. HireLV does not host these files.
Reviews
Be the first to review this.
Sign in to write a review.
Add to my tools
Sign in to add this to your tools.
Specs
| Gauge Face | Flat |
|---|---|
| Tip Diameter | 0.126" (3.20 mm) |
| Accuracy | +- 1 graduation |
| Graduation | 4 oz |
| Max Capacity | 15 lb (6.804 kg) |
| Metric Capacity | 6.804 kg x 100 g |
| Dimensions | 14.2 in x 1.49 in x 1.05 in (36.07 cm x 3.77 cm x 2.67 cm) |
| Weight | 0.17 lb (77.18 g) |
