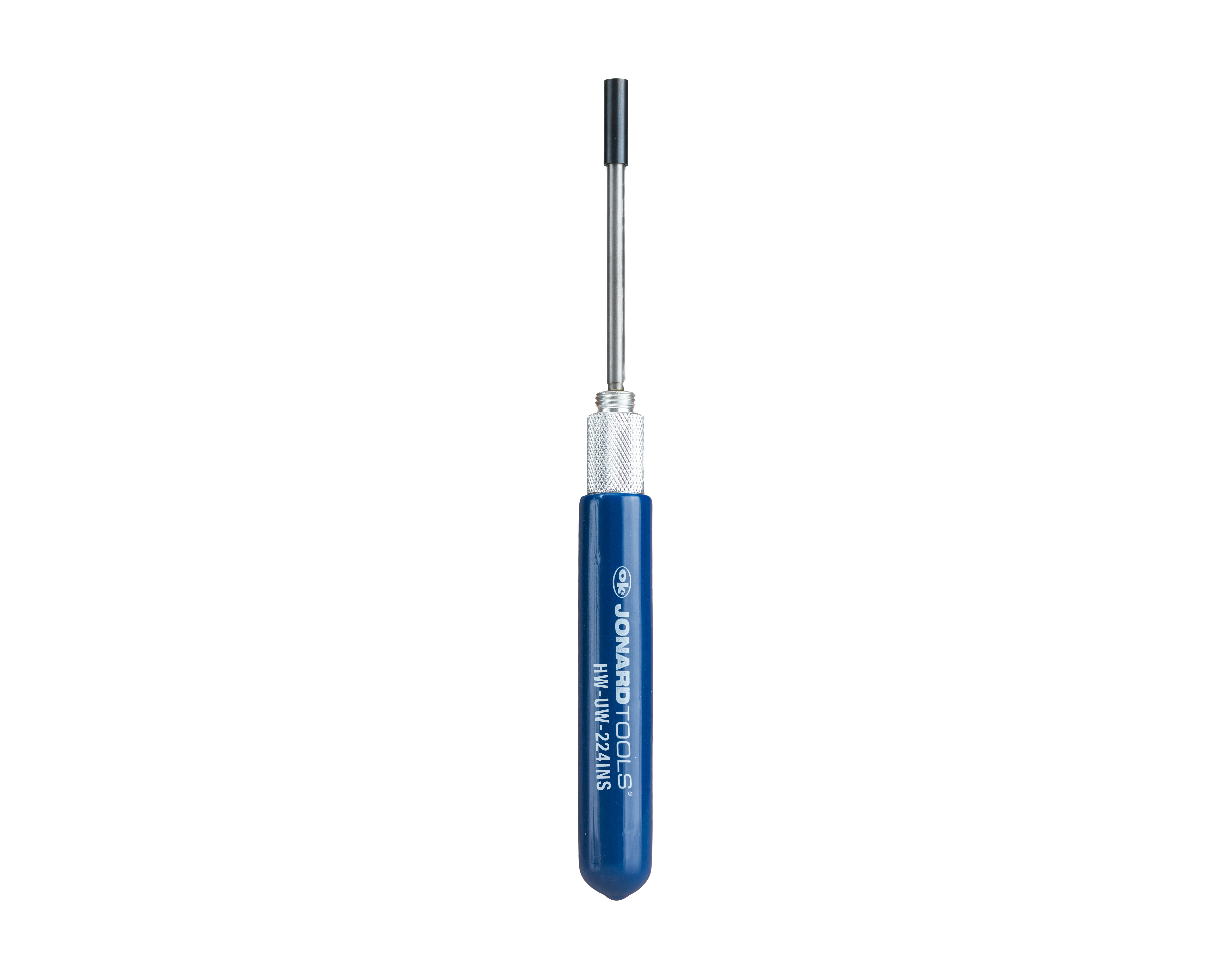

Jonard HW-UW-224INS · 1 of 1 · Image: Jonard
Jonard HW-UW-224INS
Tools · Wrap-Unwrap Tool, 22-24 AWG Insulated
Specs come from the parts catalog.
Documents & links
| hw-uw-224ins-wrap-unwrap-tool-22-24-awg-insulated?v=179 | hw-uw-224ins-wrap-unwrap-tool-22-24-awg-insulated?v=179 |
| Jonard%20Tools%20Insulated%20HW-UW%20Tools%20Data%20Sheet.pdf | Jonard%20Tools%20Insulated%20HW-UW%20Tools%20Data%20Sheet.pdf |
Outbound links only. HireLV does not host these files.
Reviews
Be the first to review this.
Sign in to write a review.
Add to my tools
Sign in to add this to your tools.
Specs
| Wrap Type | Regular |
|---|---|
| Wrap Wire Gauge | 22-24 AWG (0.65-0.50 mm) |
| Wrap Terminal Hole Diameter | 0.075" (1.90 mm) |
| Wrap Terminal Hole Depth | 1" (25.40 mm) |
| Wrap Outside Diameter | 0.218" (5.54 mm) |
| Wrap Post Size | 0.045" (1.14 mm) |
| Unwrap Wire Gauge | 20-26 AWG (0.80-0.40 mm) |
| Unwrap Terminal Hole Diameter | 0.070" (1.77 mm) |
| Unwrap Terminal Hole Depth | 1" (25.40 mm) |
| Unwrap Outside Diameter | 0.156" (3.96 mm) |
| Handle Type | Insulated |
| Dimensions | 7.13 in x 0.63 in x 0.63 in (18.1 cm x 1.59 cm x 1.59 cm) |
| Weight | 0.1 lb (44.946 g) |
