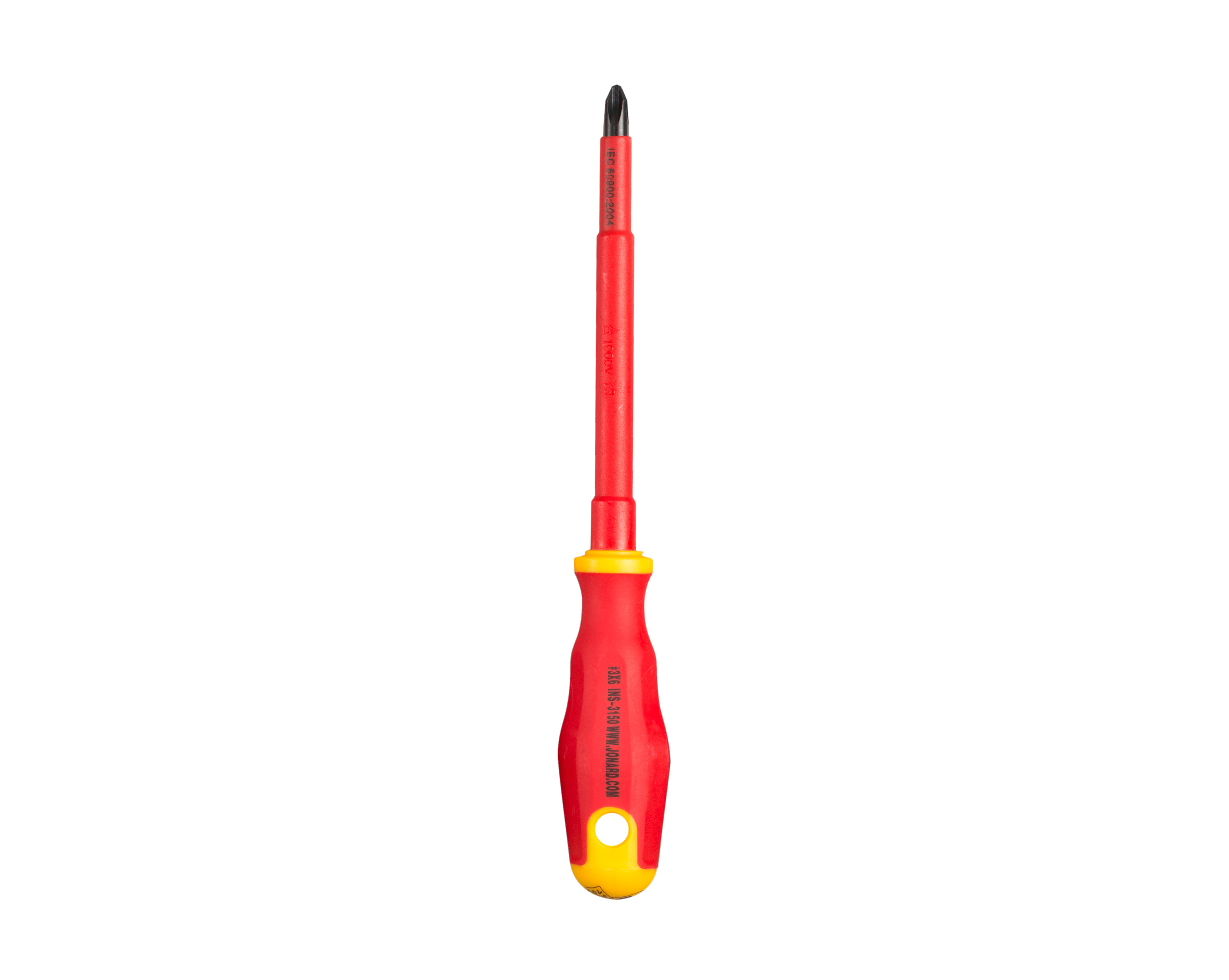

Jonard INS-3150 · 1 of 1 · Image: Jonard
Jonard INS-3150
Tools · Phillips Insulated Screwdriver, #3 x 6"
Specs come from the parts catalog. Wiring diagram
Documents & links
| insulated-screwdrivers?v=199 | insulated-screwdrivers?v=199 |
| Data%20Sheet%20-%20Insulated%20Tools.pdf | Data%20Sheet%20-%20Insulated%20Tools.pdf |
Outbound links only. HireLV does not host these files.
Reviews
Be the first to review this.
Sign in to write a review.
Add to my tools
Sign in to add this to your tools.
Specs
| Head Type | Phillips |
|---|---|
| Phillips Size | PH3 |
| Shank Length | 6" (152.4 mm) |
| Tested To | 10,000 VAC |
| Rated To | 1,000 VAC Live |
| Standards | IEC 60900, ASTM F1505-01, VDE |
| Material | Chrome Vanadium Steel |
| Overall Length | 10 1/8" (257.17 mm) |
| Dimensions | 10.25 in x 1.5 in x 1.38 in (26.04 cm x 3.81 cm x 3.49 cm) |
| Weight | 0.31 lb (142.556 g) |
