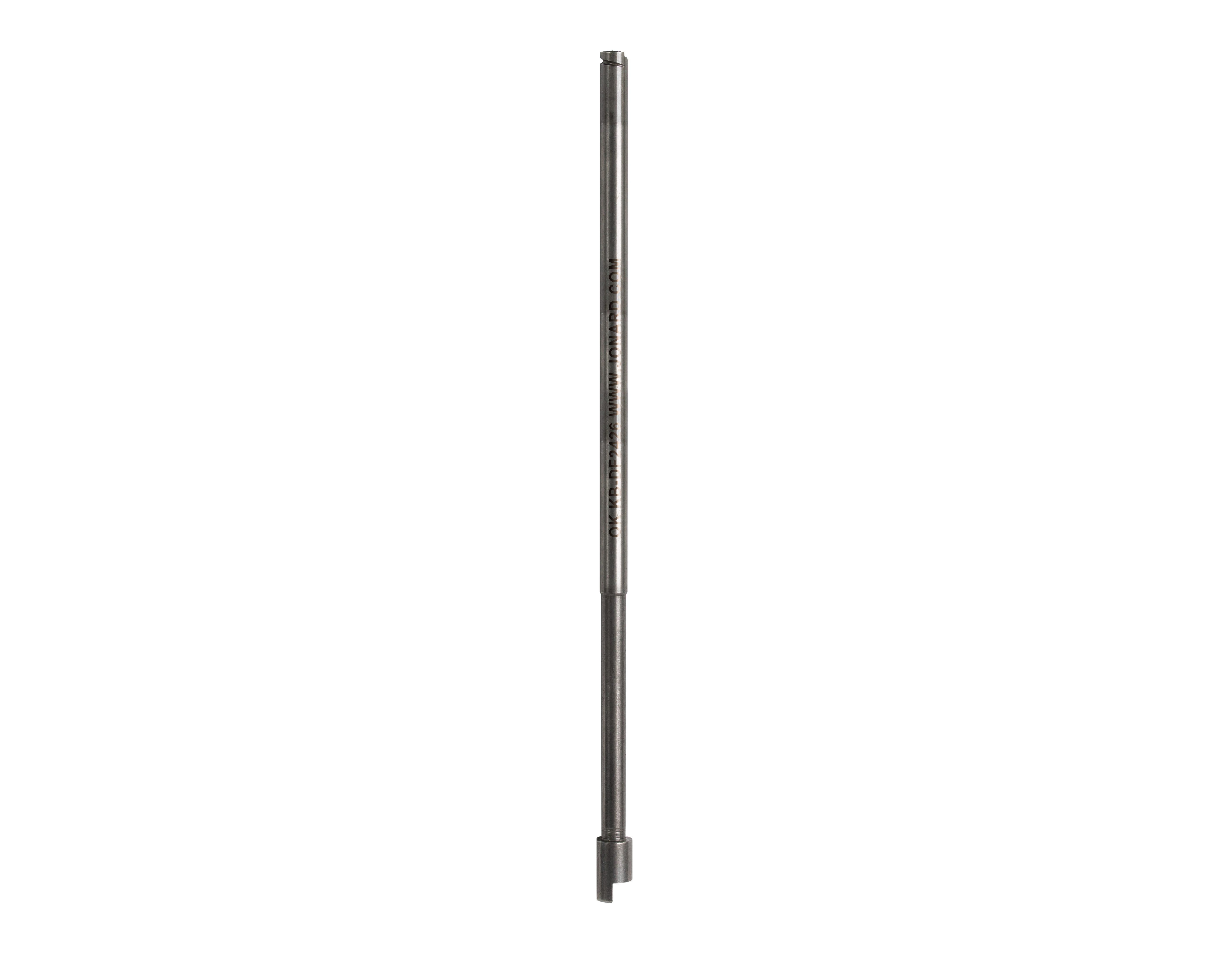

Jonard KB-DF2426 · 1 of 1 · Image: Jonard
Jonard KB-DF2426
Tools · Wrap/Unwrap Bit, 24-26 AWG
Specs come from the parts catalog. Wiring diagram
Documents & links
| wrap-unwrap-bits-wuw-bit?v=258 | wrap-unwrap-bits-wuw-bit?v=258 |
| Jonard%20Tools%20Wire%20Wrap%20Overview.pdf | Jonard%20Tools%20Wire%20Wrap%20Overview.pdf |
Outbound links only. HireLV does not host these files.
Reviews
Be the first to review this.
Sign in to write a review.
Add to my tools
Sign in to add this to your tools.
Specs
| Wrap Function | Wrap, Unwrap |
|---|---|
| Wire gauge | 24-26 AWG (0.50-0.40 mm) |
| Minimum Terminal Diagonal | 0.054" (1.37 mm) |
| Maximum Terminal Diagonal | 0.073" (1.85 mm) |
| Terminal Hole Depth | 0.50" (12.70 mm) |
| Terminal Hole Diameter | 0.075" (1.90 mm) |
| Effective Radius | 0.098" (2.48 mm) |
| Wrap Post Size | 0.045" (1.14 mm) |
| Dimensions | 5.13 in x 0.23 in x 0.23 in (13.02 cm x 0.59 cm x 0.59 cm) |
| Weight | 0.03 lb (12.258 g) |
