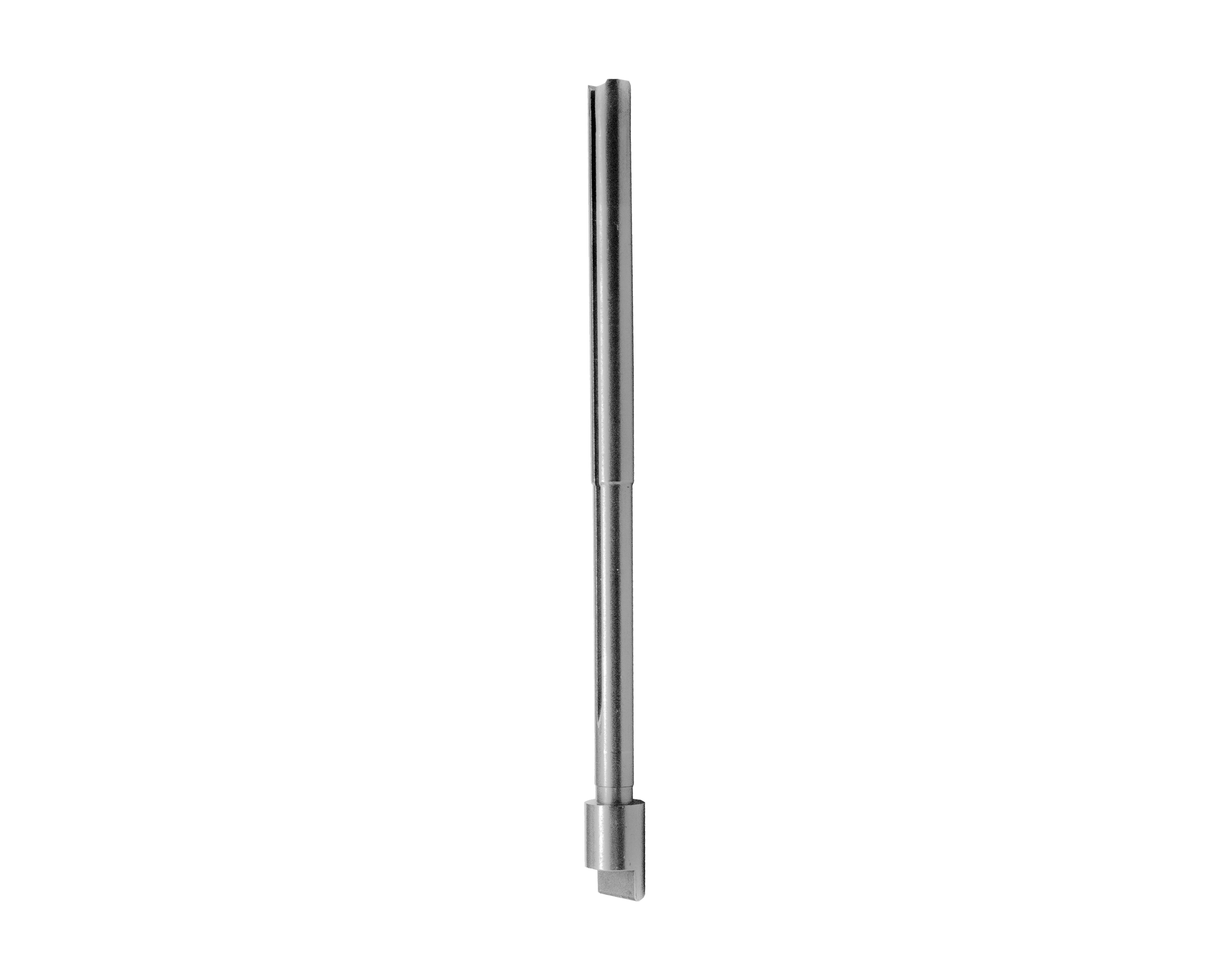

Jonard KB2075 · 1 of 1 · Image: Jonard
Jonard KB2075
Tools · Wire Wrapping Bit, 20-22 AWG
Specs come from the parts catalog. Wiring diagram
Documents & links
| standard-bits-ww-bit-regular?v=873 | standard-bits-ww-bit-regular?v=873 |
| Jonard%20Tools%20Wire%20Wrap%20Overview.pdf | Jonard%20Tools%20Wire%20Wrap%20Overview.pdf |
Outbound links only. HireLV does not host these files.
Reviews
Be the first to review this.
Sign in to write a review.
Add to my tools
Sign in to add this to your tools.
Specs
| Sleeve Part No. | P2224 and P2224INS (sold separately) |
|---|---|
| Wrap Function | Wrap |
| Wrap Type | Regular |
| Wire gauge | 20-22 AWG (0.80 mm - 0.65 mm) |
| Minimum Terminal Diagonal | 0.042" (1.07 mm) |
| Maximum Terminal Diagonal | 0.073" (1.85 mm) |
| Terminal Hole Depth | 1" (25.4 mm) |
| Terminal Hole Diameter | 0.075" (1.9 mm) |
| Effective Radius | 0.123" (3.12 mm) |
| Wrap Post Size | 0.045" (1.14 mm) |
| Dimensions | 3.13 in x 0.23 in x 0.23 in (7.94 cm x 0.59 cm x 0.59 cm) |
| Weight | 0.02 lb (7.264 g) |
