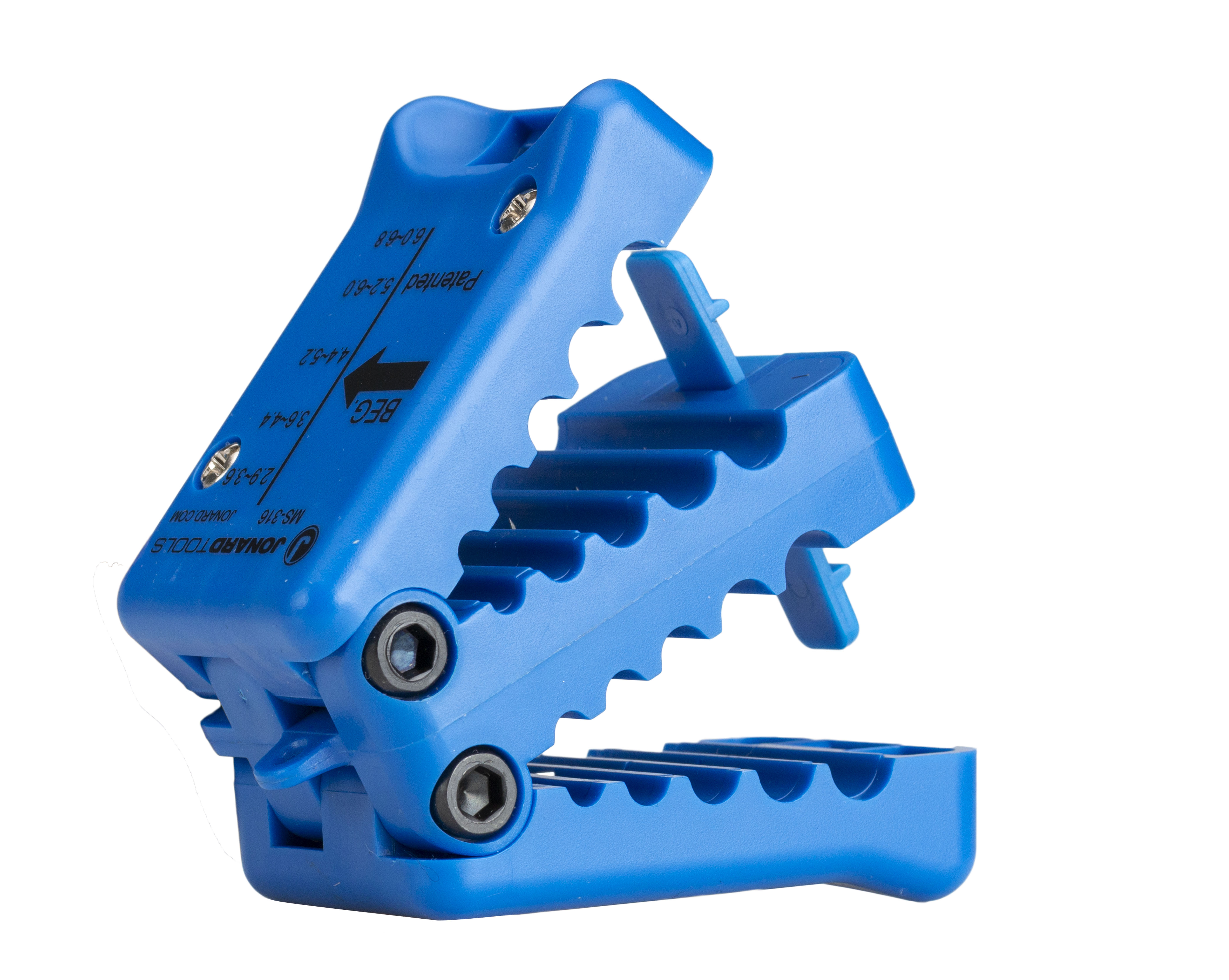

Jonard MS-316 · 1 of 1 · Image: Jonard
Jonard MS-316
Tools · Mid Span Slit & Ring Tool (2.9 mm-6.8 mm)
Specs come from the parts catalog. Wiring diagram
Documents & links
| fiber-optic-tools-mid-span-slitter?v=338 | fiber-optic-tools-mid-span-slitter?v=338 |
| Data%20Sheet%20-%20Mid%20Span%20Slit%20%26%20Ring%20Tools_29.pdf | Data%20Sheet%20-%20Mid%20Span%20Slit%20%26%20Ring%20Tools_29.pdf |
Outbound links only. HireLV does not host these files.
Reviews
Be the first to review this.
Sign in to write a review.
Add to my tools
Sign in to add this to your tools.
Specs
| Cut Type | Slit, Ring |
|---|---|
| Number of Slitting Grooves | 5 |
| Number of Ringing Grooves | 5 |
| Cable Type | Outer Jackets, Loose Buffer Tubes |
| Cable Diameter | 2.9 mm-6.8 mm |
| Dimensions | 2 in x 1 in x 1 in (5.08 cm x 2.54 cm x 2.54 cm) |
| Weight | 0.16 lb (72.64 g) |
