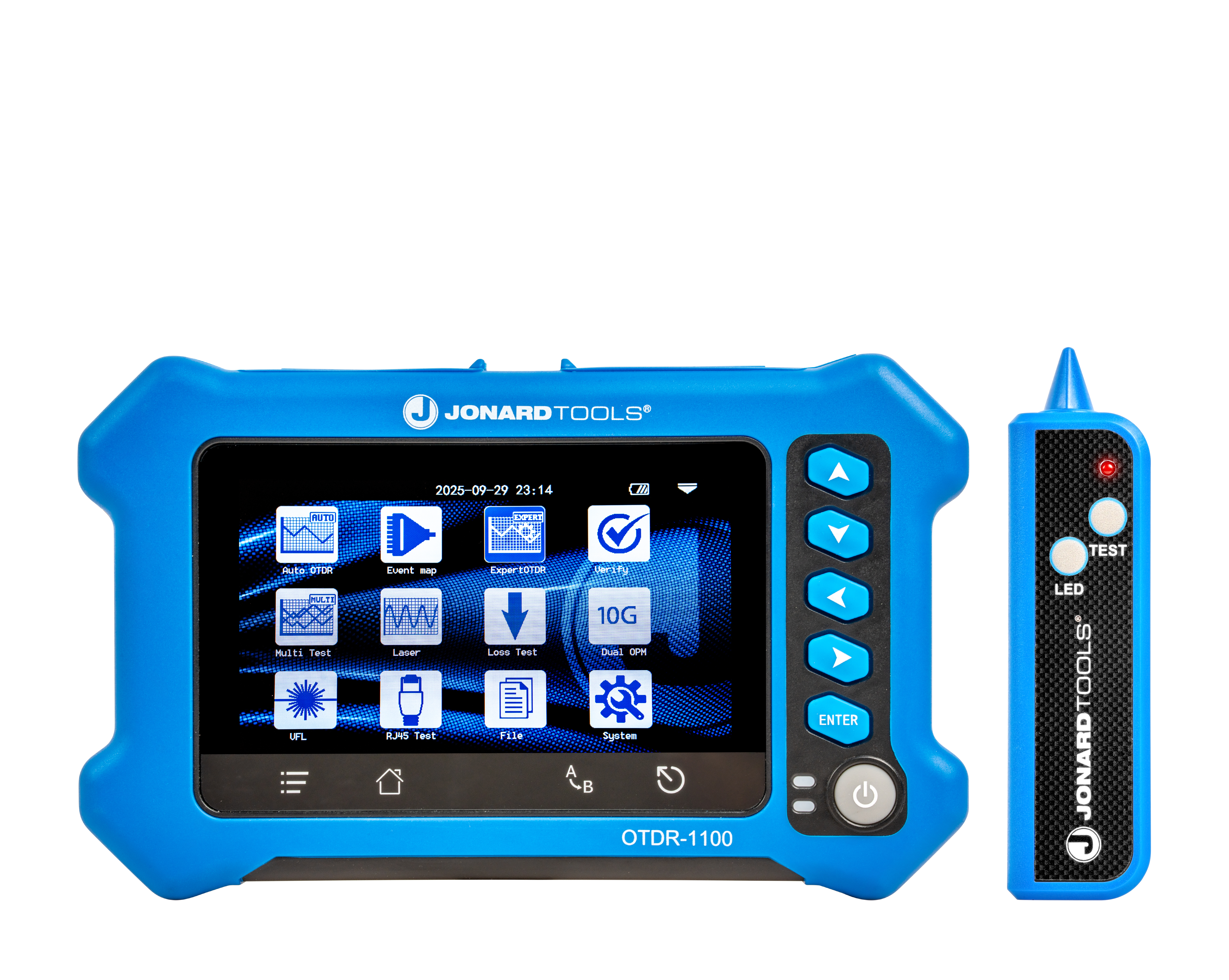

Jonard OTDR-1100 · 1 of 1 · Image: Jonard
Jonard OTDR-1100
Tools · Multi-Function Touchscreen OTDR, 1310/1550 nm, 28/26 dB
Specs come from the parts catalog. Wiring diagram
Documents & links
| otdr-1100?v=1759 | otdr-1100?v=1759 |
| 1759 | 1759 |
Outbound links only. HireLV does not host these files.
Reviews
Be the first to review this.
Sign in to write a review.
Add to my tools
Sign in to add this to your tools.
Specs
| Wavelengths | 1310±20nm, 1550±20nm |
|---|---|
| Fiber Type | G.652 SingleMode Fiber |
| Dynamic Range | 28dB/26dB |
| Event Blind Zone | 3 m |
| ATT Blind Zone | 8 m |
| Test Range | 5 m - 80 km |
| Pulse Width | 5 ns - 10 us |
| Range Accuracy | ±1.0 m + Sampling Interval + 0.0050% × Test Distance） |
| Loss Accuracy | +/- 0.2 dB/dB |
| Sampling Points | 16k ~ 128K |
| Sampling Resolution | 0.05 m ~ 8.0 m |
| Reflection Accuracy | ± 3 dB |
| Data Storage | Internal: >600 Entries |
| External | MicroSD Card |
| Laser Safety Level | Class IIIA |
| File Format | SOR Standard File Format |
| Included Connectors for OTDR | FC, SC, LC (APC) |
| Dimensions | 10.5" x 8" x 2.63" (26.67 cm x 20.32 cm x 6.68 cm) |
| Weight | 2.37 lb (1075 g) |
