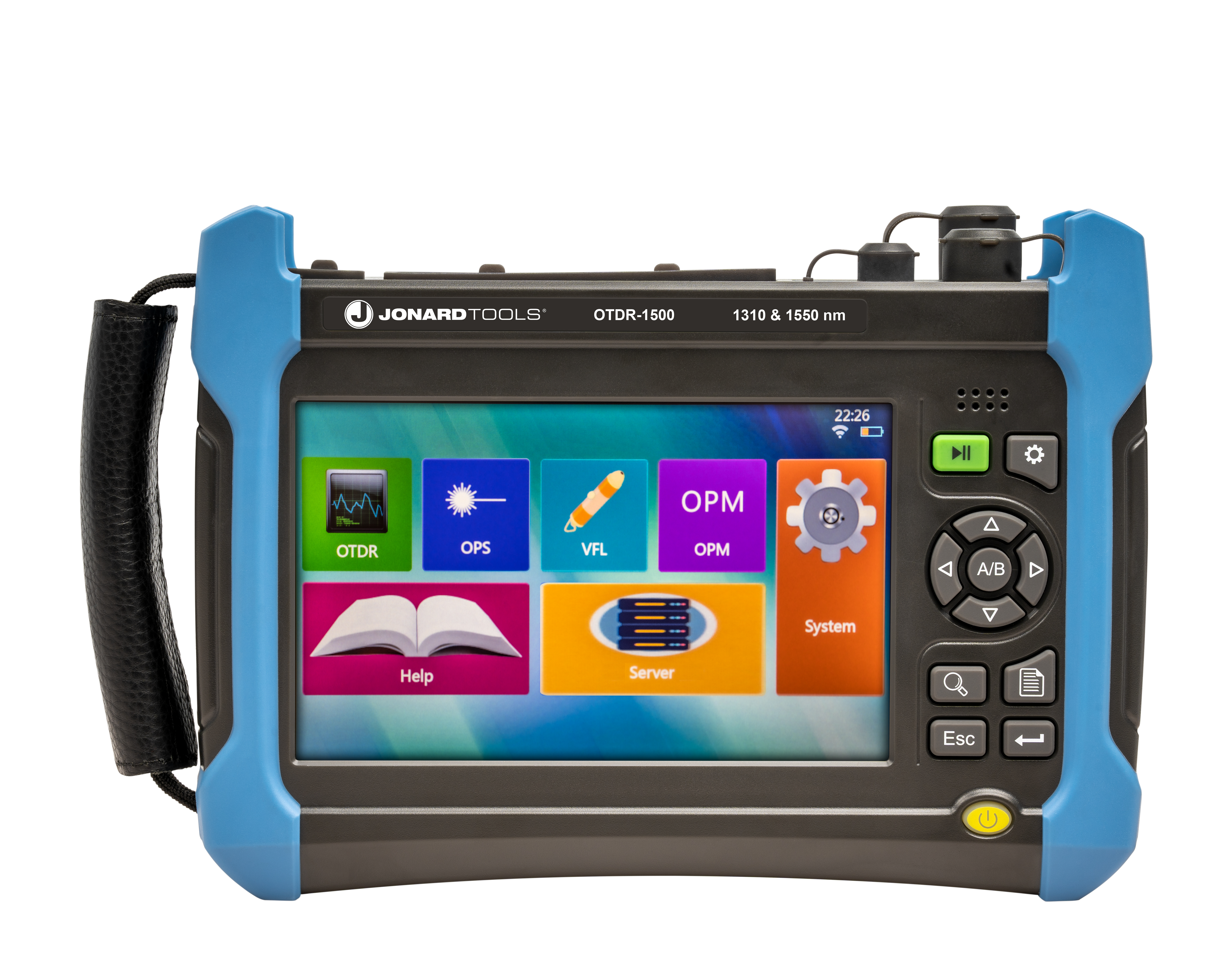

Jonard OTDR-1500
Tools · Professional Multi-Function OTDR, 1310/1550 nm
Specs come from the parts catalog. Wiring diagram
Documents & links
| multi-function-otdr?v=1224 | multi-function-otdr?v=1224 |
| Data%20Sheet%20-%20Professional%20Multi-Function%20OTDR%201310-1550%20nm%20-%20OTDR-1500_1.pdf | Data%20Sheet%20-%20Professional%20Multi-Function%20OTDR%201310-1550%20nm%20-%20OTDR-1500_1.pdf |
Outbound links only. HireLV does not host these files.
Reviews
Be the first to review this.
Sign in to write a review.
Add to my tools
Sign in to add this to your tools.
Specs
| Wavelengths | 1310±20nm, 1550±20nm |
|---|---|
| Fiber Type | G.652 SingleMode Fiber |
| Dynamic Range | 32 dB/30 dB |
| Event Blind Zone | 0.5 m |
| ATT Blind Zone | 0.5 m |
| Test Range | 500m-80km |
| Pulse Width | 3ns-10us |
| Range Accuracy | ±（0.75 m + Sampling Interval + 0.0025％× Test Distance） |
| Loss Accuracy | ± 0.02 dB/km |
| # of Sampling Points | 256k |
| Sampling Resolution | 0.5m-32 m |
| Reflection Accuracy | ± 2 dB |
| Data Storage | Internal: 200 MB |
| External | MicroSD Card |
| Laser Safety Level | Class II level |
| File Format | SOR Standard File Format |
| Included Connectors for OTDR | FC, SC (APC) |
| Dimensions | 13 in x 4 in x 9 in (33.02 cm x 10.16 cm x 22.86 cm) |
| Weight | 6.31 lb (2864.74 g) |
