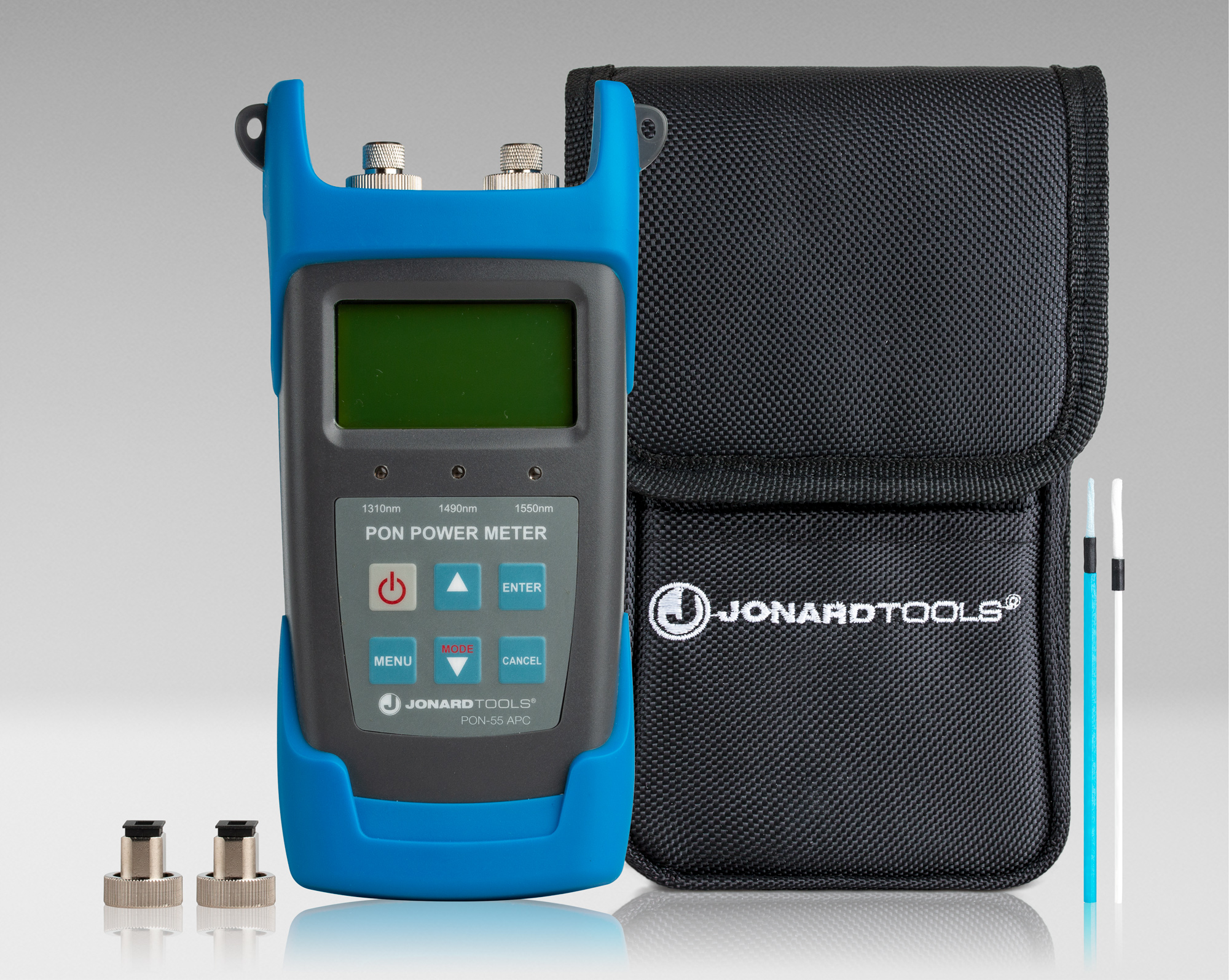

Jonard PON-55 · 1 of 1 · Image: Jonard
Jonard PON-55
Tools · Passive Optical Network Power Meter for BPON/EPON/GPON, APC
Specs come from the parts catalog.
Documents & links
| passive-optical-network-power-meters?v=1007 | passive-optical-network-power-meters?v=1007 |
| Data%20Sheet%20-%20Passive%20Optical%20Network%20Power%20Meter%20for%20BPON-EPON-GPON%2C%20APC%20-PON-55_0.pdf | Data%20Sheet%20-%20Passive%20Optical%20Network%20Power%20Meter%20for%20BPON-EPON-GPON%2C%20APC%20-PON-55_0.pdf |
Outbound links only. HireLV does not host these files.
Reviews
Be the first to review this.
Sign in to write a review.
Add to my tools
Sign in to add this to your tools.
Specs
| Network Types | BPON/EPON/GPON |
|---|---|
| Connector Types | FC/SC (APC) |
| Wavelengths | 1310 nm, 1490 nm, 1550 nm |
| Measurement Range | -35 dBm～+10 dBm @ 1310/1490 nm, -35dBm～+10dBm @ 1550 nm |
| Max Output Power | 15 dBm @ 1310/1490/1550 nm |
| Detector Type | InGaAs |
| Connatural Uncertainty (dB) | ±0.5 dB |
| Linearity (dB) | ±0.1 dB |
| Batteries | (3) 1.5V AA |
| Battery Life | 90 Hours |
| Operation Temperature | -10℃～60℃ |
| Dimensions | 6.25" x 9" x 2.8" (15.88 cm x 22.86 cm x 7.11 cm) |
| Tool Weight | 0.93 lb (0.423 kg) |
| Weight | 0.11 lb (49.94 g) |
