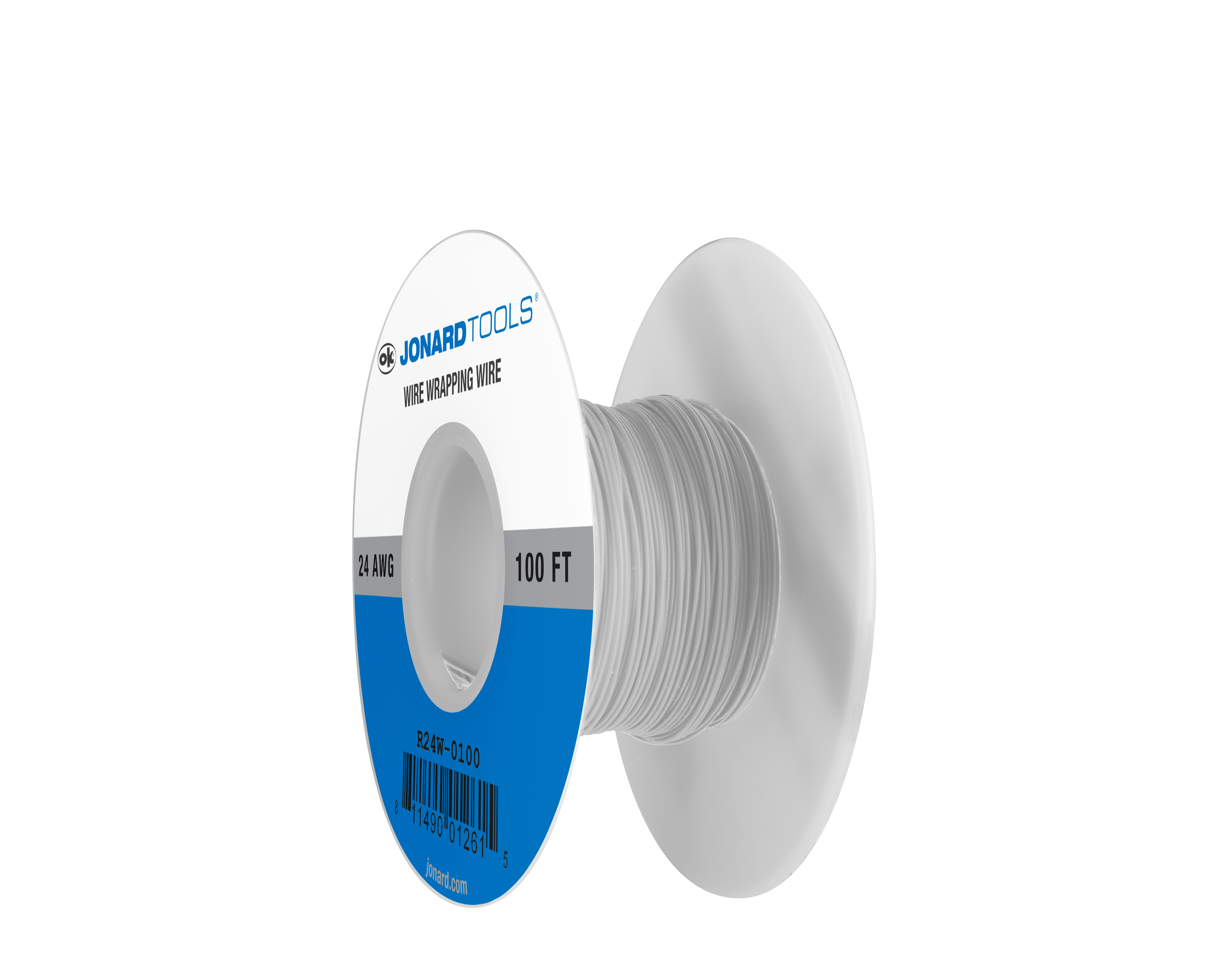

Jonard R24W-0100 · 1 of 1 · Image: Jonard
Jonard R24W-0100
Tools · 24 AWG Kynar® Wire, White, 100 ft
Specs come from the parts catalog. Wiring diagram
Documents & links
| wire-wrap-wire-kynar-and-tefzel?v=411 | wire-wrap-wire-kynar-and-tefzel?v=411 |
| R24%20-%20Wire%20Specifications.pdf | R24%20-%20Wire%20Specifications.pdf |
Outbound links only. HireLV does not host these files.
Reviews
Be the first to review this.
Sign in to write a review.
Add to my tools
Sign in to add this to your tools.
Specs
| Insulation Type | Kynar® |
|---|---|
| Insulation Thickness | 0.004" (0.102 mm) |
| Wire gauge | 24 AWG (0.5 mm) |
| Overall Diameter | 0.030" (0.76 mm) |
| Standards | UL 1422 |
| Voltage | Not Rated |
| Reel Length | 100 ft. (30.48 meters) |
| Dimensions | 2 in x 2 in x 1 in (5.08 cm x 5.08 cm x 2.54 cm) |
| Weight | 0.19 lb (86.26 g) |
