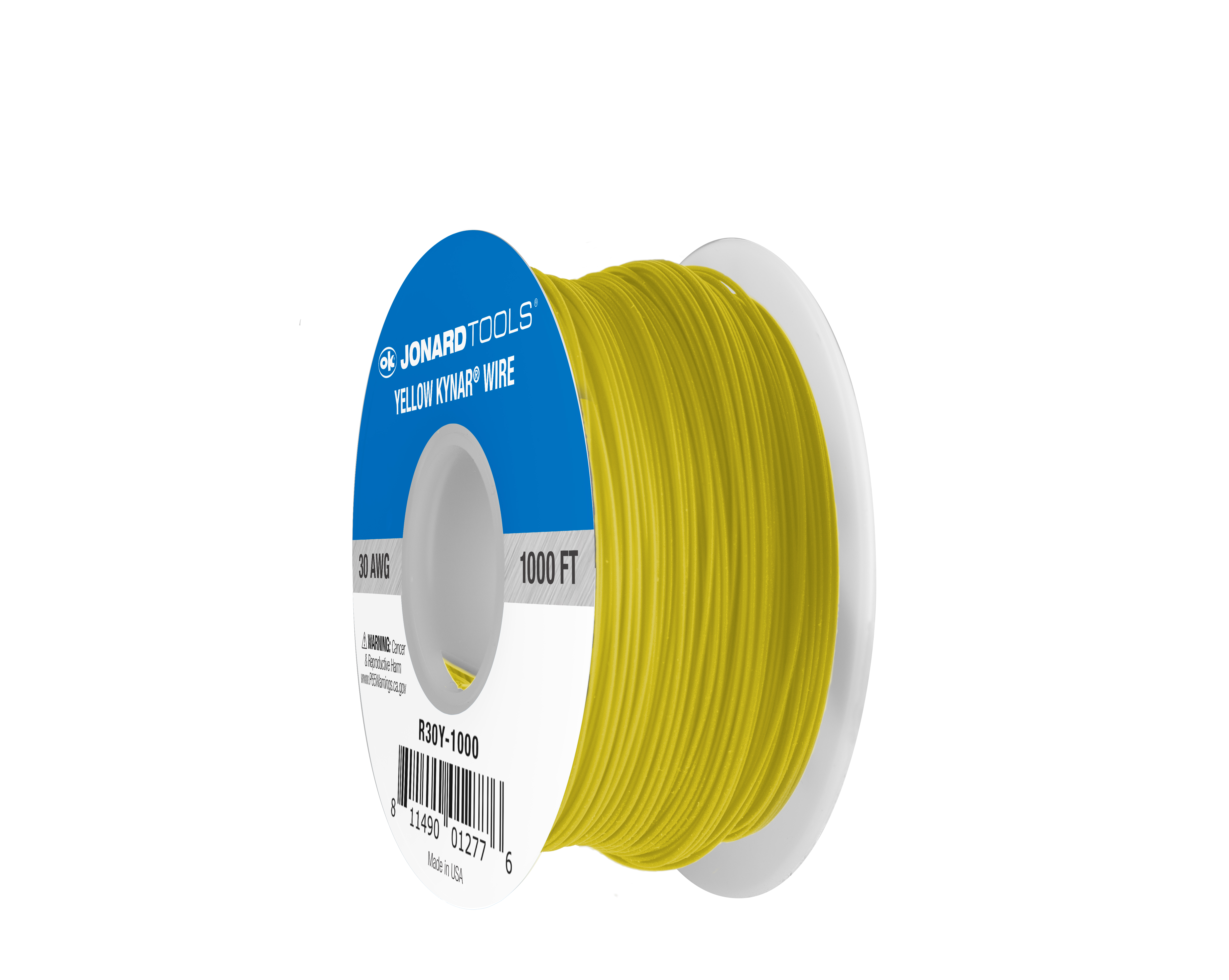

Jonard R30Y-1000 · 1 of 1 · Image: Jonard
Jonard R30Y-1000
Tools · 30 AWG Kynar® Wire, Yellow, 1000 ft
Specs come from the parts catalog. Wiring diagram
Documents & links
| wire-wrap-wire-kynar-and-tefzel?v=434 | wire-wrap-wire-kynar-and-tefzel?v=434 |
| R30%20-%20Wire%20Specifications.pdf | R30%20-%20Wire%20Specifications.pdf |
Outbound links only. HireLV does not host these files.
Reviews
Be the first to review this.
Sign in to write a review.
Add to my tools
Sign in to add this to your tools.
Specs
| Insulation Type | Kynar® |
|---|---|
| Insulation Thickness | 0.005" (0.127 mm) |
| Wire gauge | 30 AWG (0.25 mm) |
| Overall Diameter | 0.020" (0.50 mm) |
| Standards | UL 1423 |
| Voltage | Not Rated |
| Reel Length | 1000 ft. (304.8 meters) |
| Dimensions | 2 in x 2 in x 2 in (5.08 cm x 5.08 cm x 5.08 cm) |
| Weight | 0.51 lb (231.54 g) |
