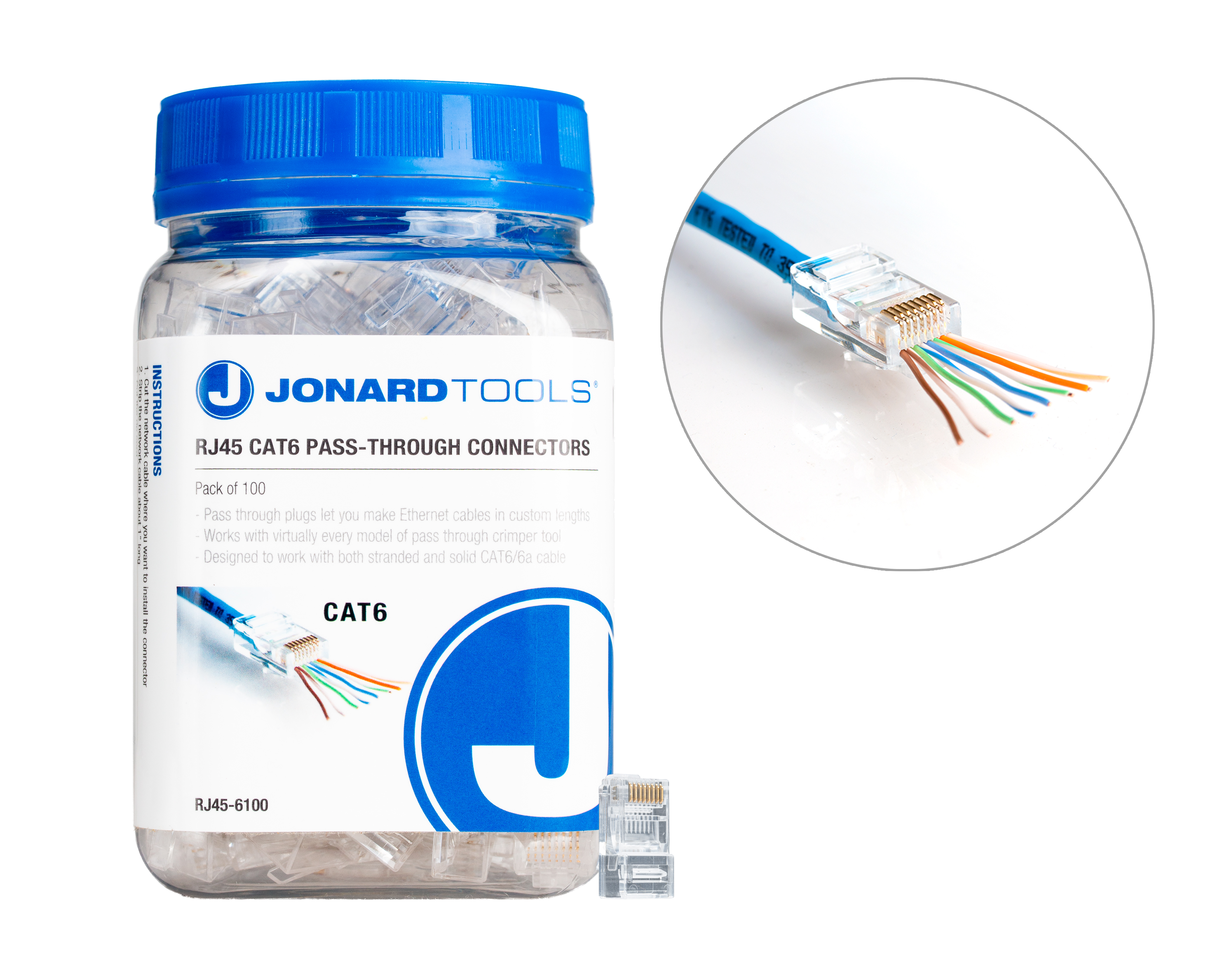

Jonard RJ45-6100 · 1 of 1 · Image: Jonard
Jonard RJ45-6100
Tools · CAT6 RJ45 Pass-Through Connectors (Pack of 100)
Specs come from the parts catalog. Wiring diagram
Documents & links
| rj45-pass-through-connectors?v=722 | rj45-pass-through-connectors?v=722 |
| Data%20Sheet%20-%20Pass-Through%20Connectors_1.pdf | Data%20Sheet%20-%20Pass-Through%20Connectors_1.pdf |
Outbound links only. HireLV does not host these files.
Reviews
Be the first to review this.
Sign in to write a review.
Add to my tools
Sign in to add this to your tools.
Specs
| Number of Connectors | 100 |
|---|---|
| Cable Type | CAT6, CAT6a Network Cables |
| Connector Type | Three-prong RJ45 |
| Plating Thickness | 50 micro-inches |
| Housing Material | Polycarbonate |
| Standards | UL 94V-2, RoHS Compliant |
| Operating Temperature | -10°C to 60°C |
| Dimensions | 0 in x 0 in x 0 in (0 cm x 0 cm x 0 cm) |
| Weight | 0 lb (0 g) |
