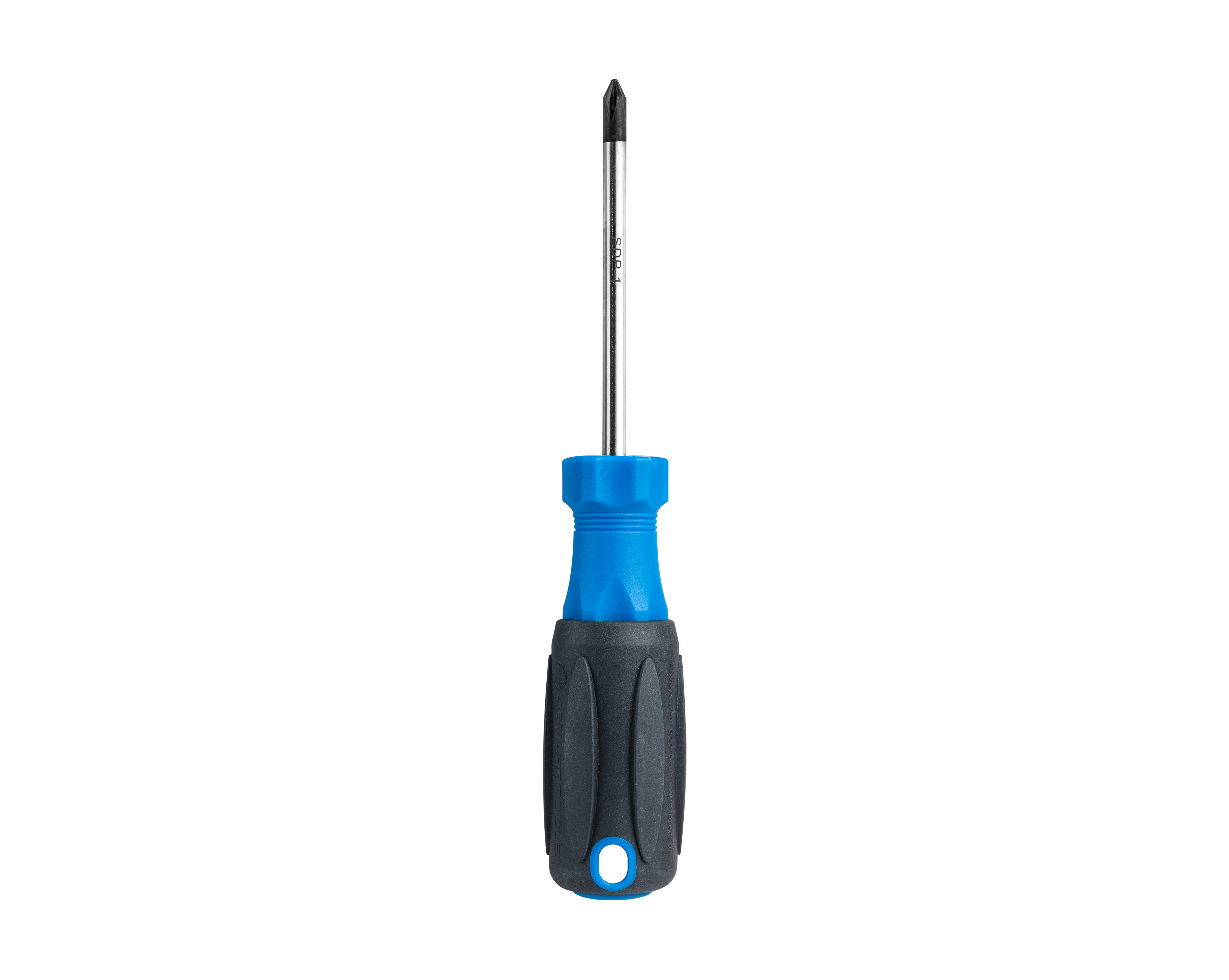

Jonard SDP-1 · 1 of 1 · Image: Jonard
Jonard SDP-1
Tools · Phillips Screwdriver, #1 x 3"
Specs come from the parts catalog. Wiring diagram
Documents & links
| cushion-grip-screwdrivers-phillips-screwdriver?v=482 | cushion-grip-screwdrivers-phillips-screwdriver?v=482 |
| Data%20Sheet%20-%20Phillips%20Screwdrivers_3.pdf | Data%20Sheet%20-%20Phillips%20Screwdrivers_3.pdf |
Outbound links only. HireLV does not host these files.
Reviews
Be the first to review this.
Sign in to write a review.
Add to my tools
Sign in to add this to your tools.
Specs
| Head Type | Phillips |
|---|---|
| Phillips Size | PH1 |
| Shank Length | 3" (76.2 mm) |
| Shank Material | S2 Steel |
| Finish | Chrome, Black Oxide Tip |
| Standards | ASME B107.600/ANSI ISO 2380 |
| Dimensions | 6.63 in x 1.23 in x 1.23 in (16.83 cm x 3.12 cm x 3.12 cm) |
| Weight | 0.12 lb (54.6 g) |
