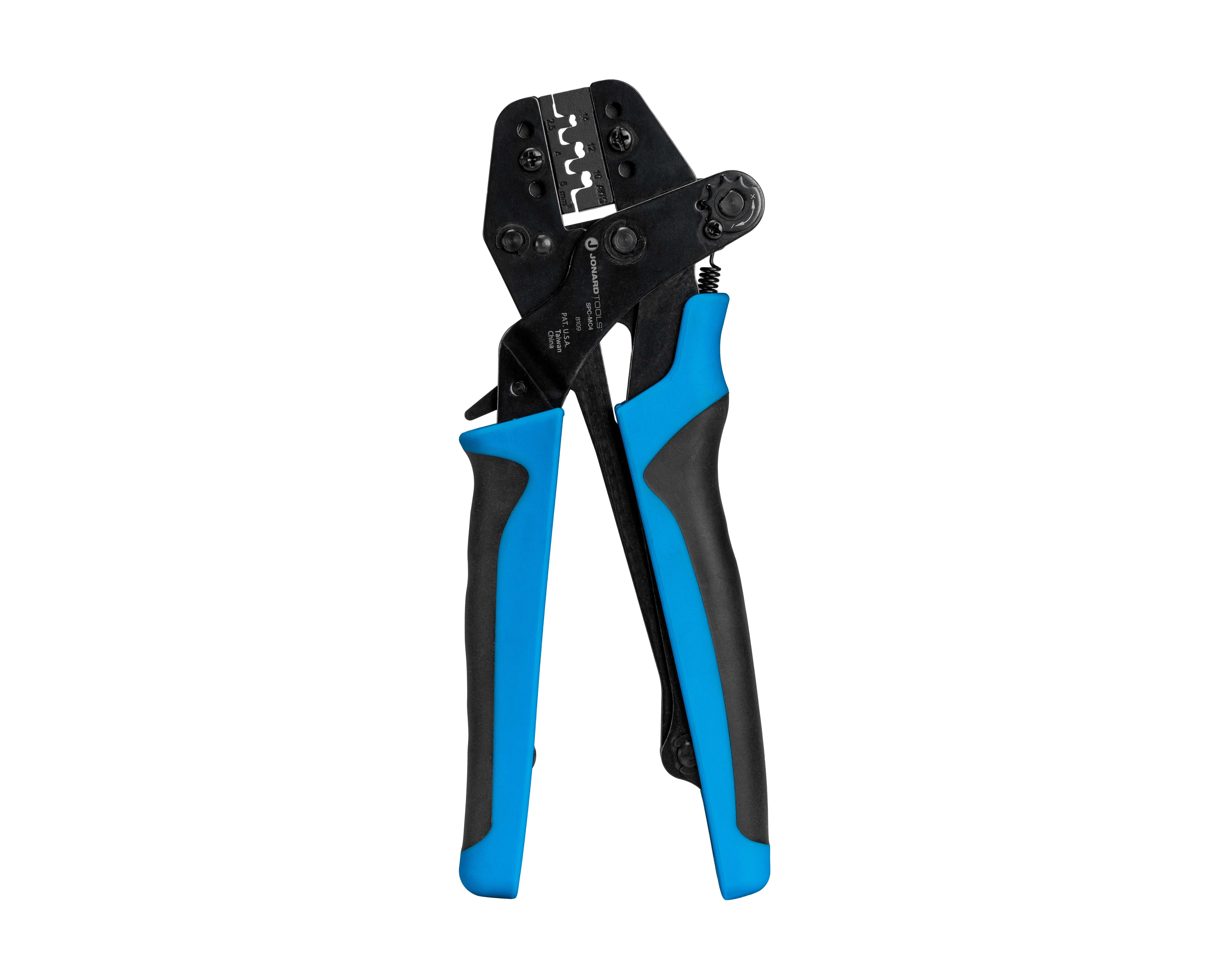

Jonard SPC-MC4 · 1 of 1 · Image: Jonard
Jonard SPC-MC4
Tools · Solar Panel Crimper with Included MC4 Die
Specs come from the parts catalog.
Documents & links
| spc-mc4-crimper-solar-panel-contacts-w-included-mc4-die?v=864 | spc-mc4-crimper-solar-panel-contacts-w-included-mc4-die?v=864 |
| SPC-MC4%20-%20Solar%20Panel%20Crimper%20with%20Included%20MC4%20Die%20-%20Data%20Sheet_0.pdf | SPC-MC4%20-%20Solar%20Panel%20Crimper%20with%20Included%20MC4%20Die%20-%20Data%20Sheet_0.pdf |
Outbound links only. HireLV does not host these files.
Reviews
Be the first to review this.
Sign in to write a review.
Add to my tools
Sign in to add this to your tools.
Specs
| Application Type | MC4 Solar Panel Crimping |
|---|---|
| Connector Type | MC4 Male/Female Solar Panel Connectors, can also crimp MC3 connectors using a separate die |
| Wire Diameter | 14, 12, or 10 AWG or (2.5 / 4.0 / 6 mm²) |
| Material | Carbon Steel with Black Oxide |
| Dimensions | 8.75" x 4" x 0.88" (22.23 cm x 10.16 cm x 2.24 cm) |
| Weight | 1.3 lb (590.2 g) |
