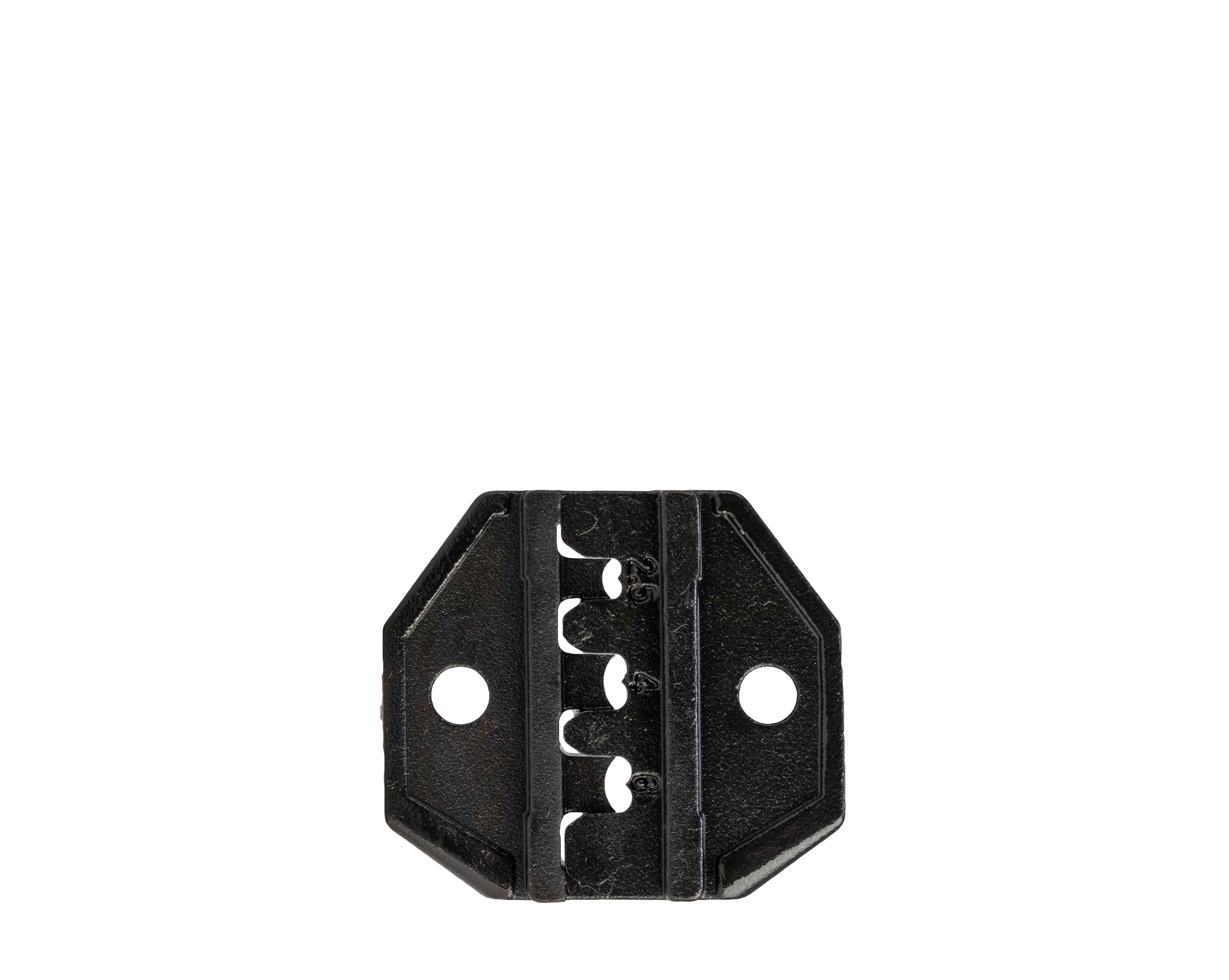

Jonard SPD-MC4 · 1 of 1 · Image: Jonard
Jonard SPD-MC4
Tools · Solar Panel MC4 Crimper Die
Specs come from the parts catalog. Wiring diagram
Documents & links
| spd-mc-crimper-dies?v=868 | spd-mc-crimper-dies?v=868 |
| Solar%20Panel%20Crimping%20Dies%20-%20Data%20Sheet.pdf | Solar%20Panel%20Crimping%20Dies%20-%20Data%20Sheet.pdf |
Outbound links only. HireLV does not host these files.
Reviews
Be the first to review this.
Sign in to write a review.
Add to my tools
Sign in to add this to your tools.
Specs
| Application Type | Locking/Unlocking MC4 Connectors |
|---|---|
| Wire Diameter | 14, 12, 10 AWG or (2.5 / 4.0 / 6 mm²) |
| Connector Type | MC4 Connectors |
| Material | Carbon Steel with Black Oxide |
| Product Dimensions | 1.28" x 1.40" x 0.391" (32.5 mm x 35.7 mm x 9.91 mm) |
| Dimensions | 0 in x 0 in x 0 in (0 cm x 0 cm x 0 cm) |
| Weight | 0 lb (0 g) |
