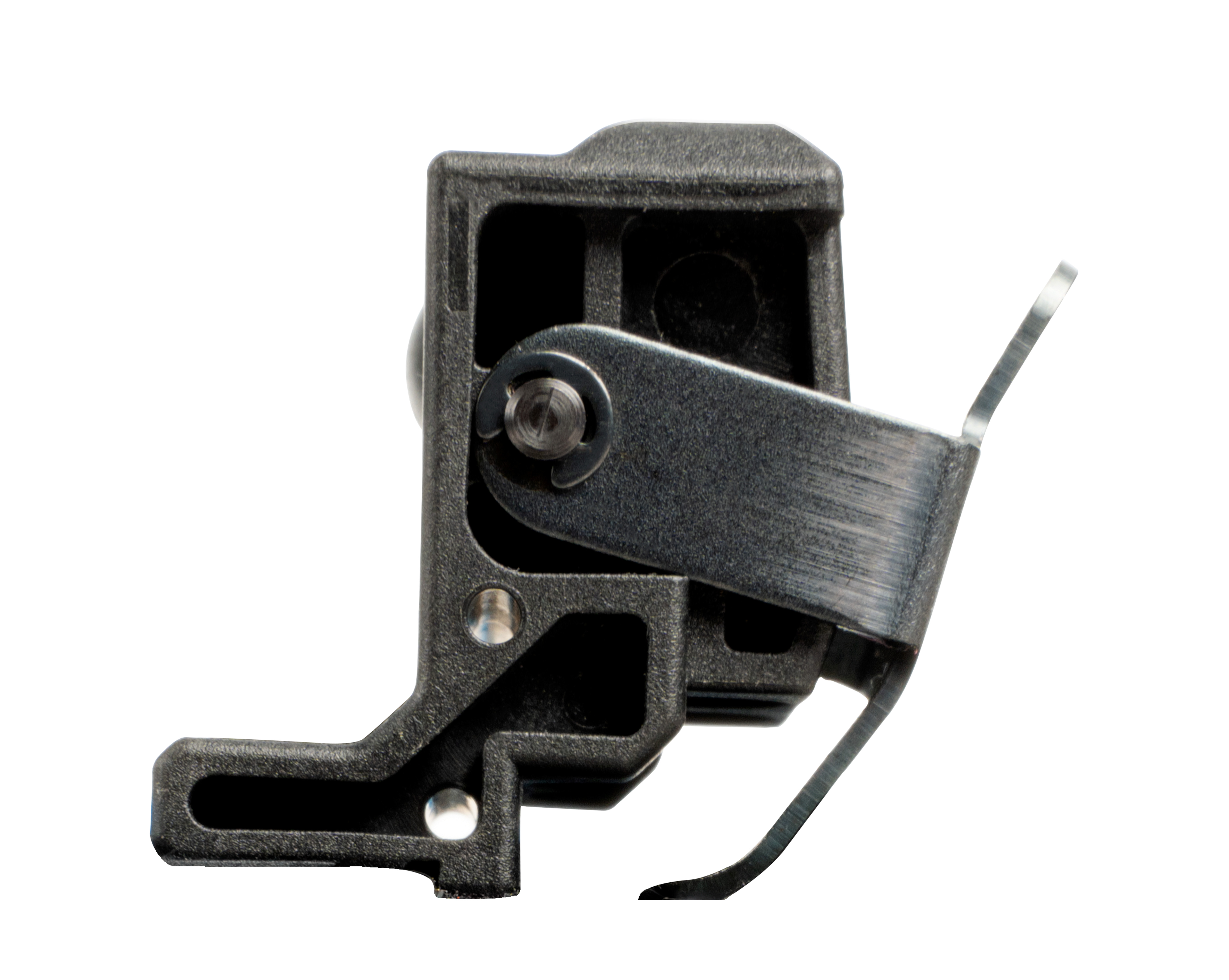

Jonard SPL-MC4 · 1 of 1 · Image: Jonard
Jonard SPL-MC4
Tools · Solar Panel Crimper Locator for MC4 Dies
Specs come from the parts catalog.
Documents & links
| spl-mc4?v=1676 | spl-mc4?v=1676 |
| Data%20Sheet%20-%20Solar%20Panel%20Crimper%20Locator%20-%20SPL-MC4.pdf | Data%20Sheet%20-%20Solar%20Panel%20Crimper%20Locator%20-%20SPL-MC4.pdf |
Outbound links only. HireLV does not host these files.
Reviews
Be the first to review this.
Sign in to write a review.
Add to my tools
Sign in to add this to your tools.
Specs
| Application Type | MC4 Solar Panel Crimping Locator |
|---|---|
| Connector Type | MC4 Male/Female Solar Panel Connectors |
| Wire Diameter | 14, 12, or 10 AWG or (2.5 / 4.0 / 6 / 10 mm²) |
| Material | Carbon Steel with Black Oxide |
| Dimensions | 1.3" x 1.02" x 1.14" (3.3 cm x 2.59 cm x 2.9 cm) |
| Weight | 0.04 lb (18.16 g) |
