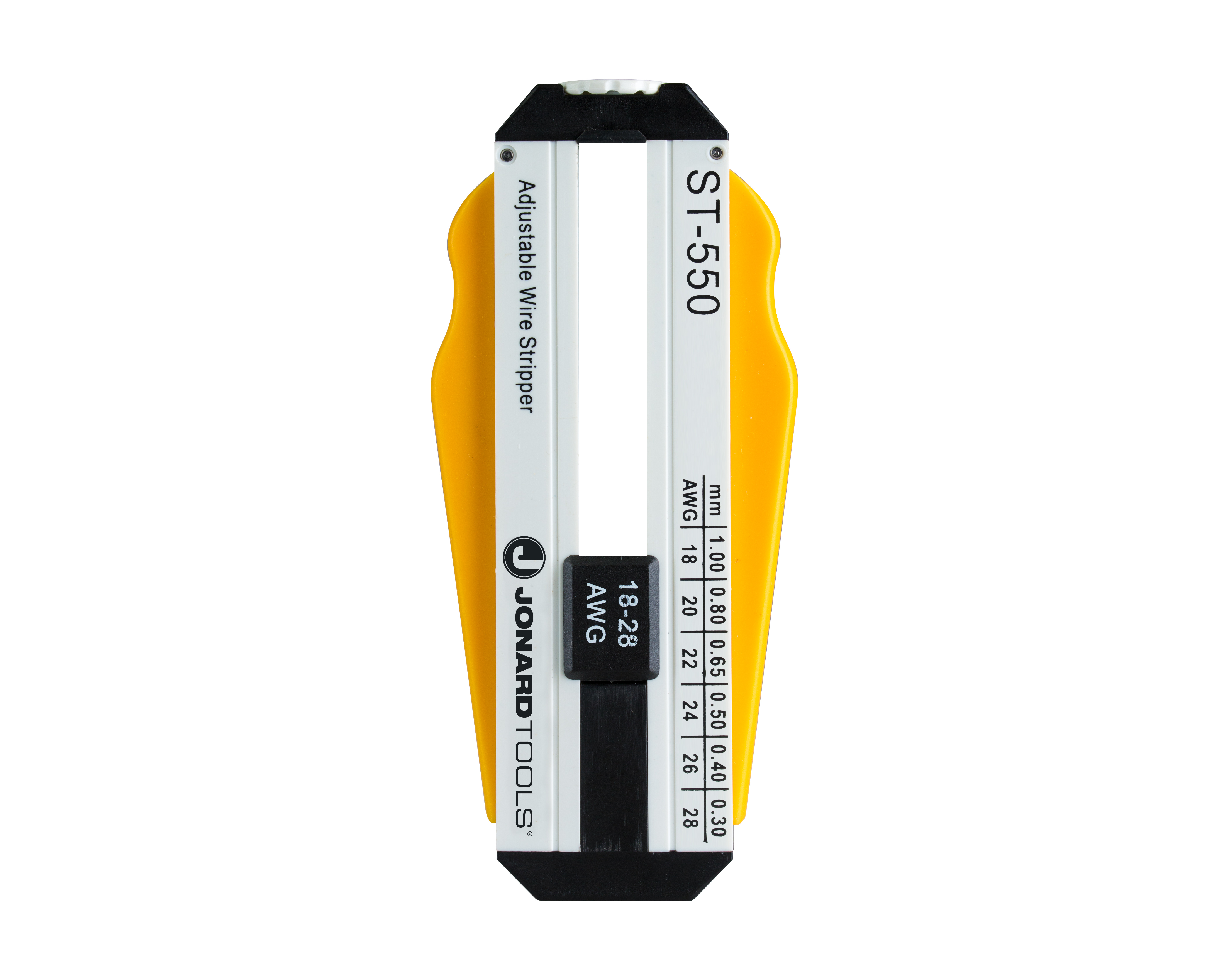

Jonard ST-550 · 1 of 1 · Image: Jonard
Jonard ST-550
Tools · Adjustable Wire Stripper, 18-28 AWG
Specs come from the parts catalog. Wiring diagram
Documents & links
| adjustable-wire-strippers-adjustable-wire-stripper?v=514 | adjustable-wire-strippers-adjustable-wire-stripper?v=514 |
| Data%20Sheet%20-%20Adjustable%20Wire%20Strippers_9.pdf | Data%20Sheet%20-%20Adjustable%20Wire%20Strippers_9.pdf |
Outbound links only. HireLV does not host these files.
Reviews
Be the first to review this.
Sign in to write a review.
Add to my tools
Sign in to add this to your tools.
Specs
| Cut Type | Strip |
|---|---|
| Wire gauge | 18-28 AWG (1.0 mm - 0.30 mm) |
| Maximum Strip Length | 2.0" (50.8 mm) |
| Strip Length | 0.039" - 2.0" (1.0 mm - 50.8 mm) |
| Blade Material | Hardened Steel |
| Cable Size | 18-28 AWG (1.0 mm - 0.30 mm) |
| Cable Type | Solid & Stranded Conductors |
| Dimensions | 3.85 in x 1.75 in x 0.51 in (9.78 cm x 4.45 cm x 1.28 cm) |
| Weight | 0.05 lb (20.884 g) |
