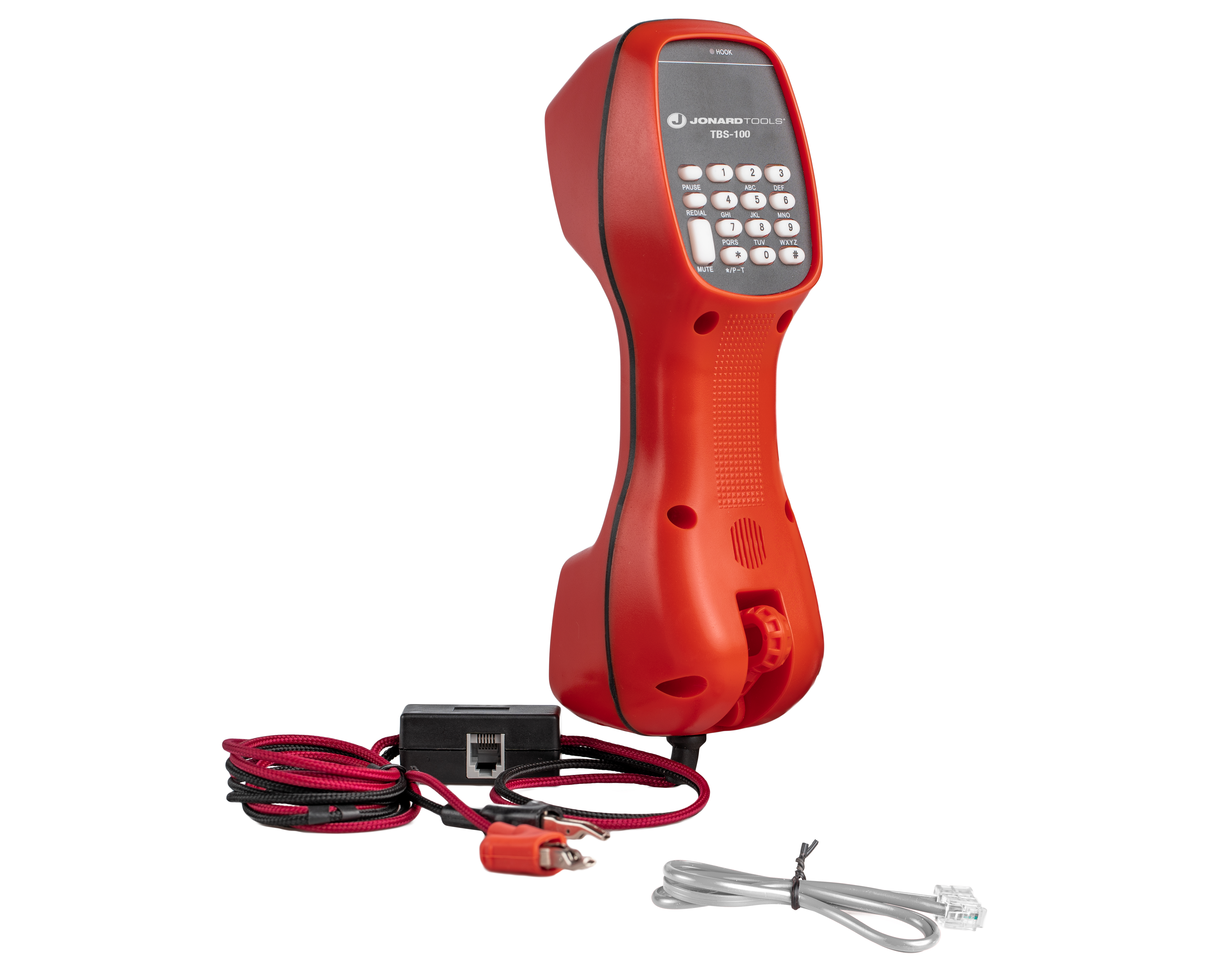

Jonard TBS-100 · 1 of 1 · Image: Jonard
Jonard TBS-100
Tools · Telephone Butt Set with ABN, Analog
Specs come from the parts catalog. Wiring diagram
Documents & links
| tbs-100-telephone-butt-set-abn-analog?v=977 | tbs-100-telephone-butt-set-abn-analog?v=977 |
| Data%20Sheet%20-%20Telephone%20Butt%20Set%20with%20ABN%2C%20Analog%20-%20TBS-100_3.pdf | Data%20Sheet%20-%20Telephone%20Butt%20Set%20with%20ABN%2C%20Analog%20-%20TBS-100_3.pdf |
Outbound links only. HireLV does not host these files.
Reviews
Be the first to review this.
Sign in to write a review.
Add to my tools
Sign in to add this to your tools.
Specs
| Functions | Dial, Ring, Talk, Mute, Redial |
|---|---|
| Standards | GB/T15279-2002 |
| Dimensions | 9 in x 2.8 in x 2.5 in (22.86 cm x 7.11 cm x 6.35 cm) |
| Weight | 0.84 lb (381.36 g) |
