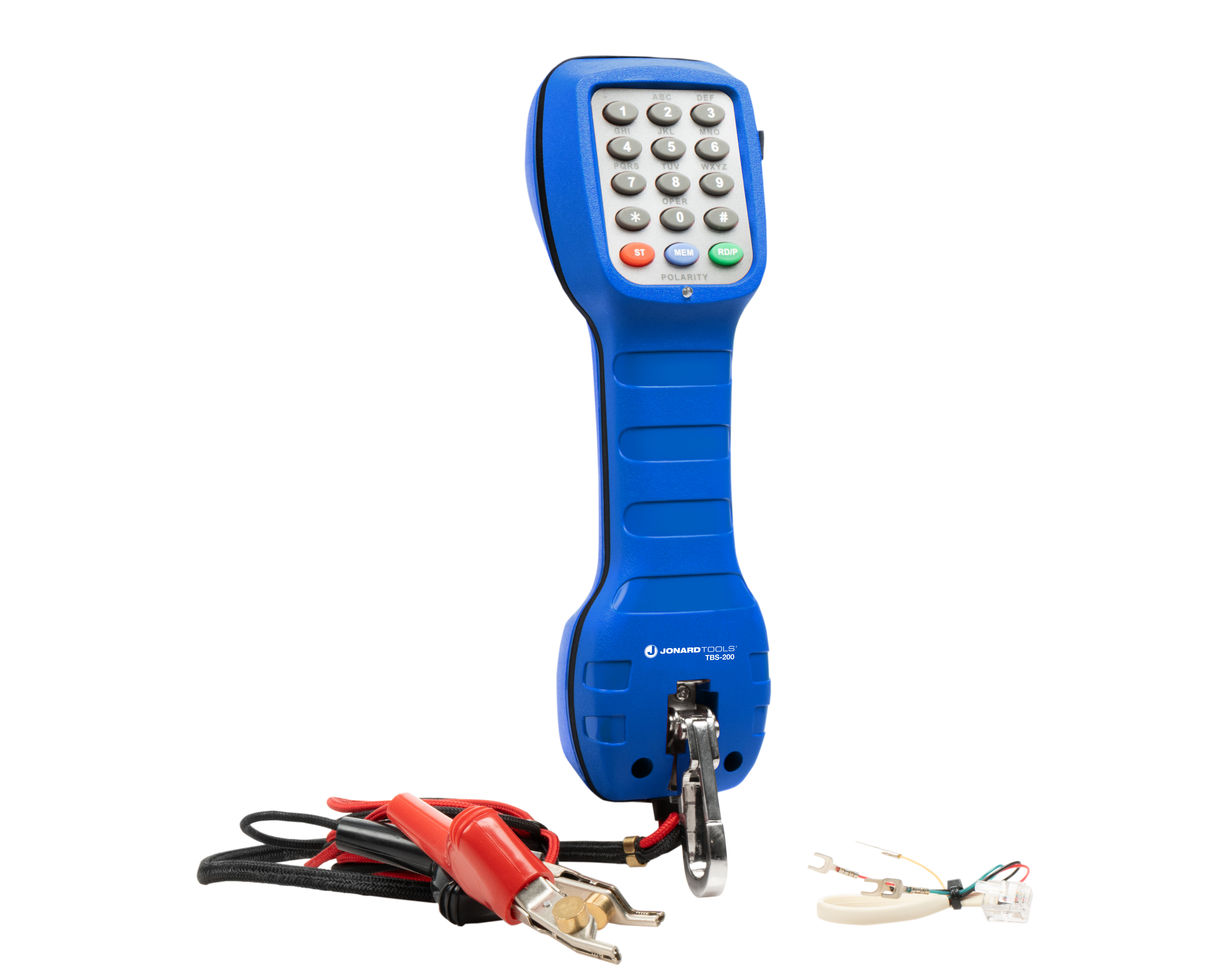

Jonard TBS-200 · 1 of 1 · Image: Jonard
Jonard TBS-200
Tools · Telephone Butt Set with High Impedance Monitoring, Analog
Specs come from the parts catalog. Wiring diagram
Documents & links
| tbs-200?v=1536 | tbs-200?v=1536 |
| Data%20Sheet%20-%20Telephone%20Butt%20Set%20with%20High%20Impedance%20Monitoring%2C%20Analog%20-%20TBS-200.pdf | Data%20Sheet%20-%20Telephone%20Butt%20Set%20with%20High%20Impedance%20Monitoring%2C%20Analog%20-%20TBS-200.pdf |
Outbound links only. HireLV does not host these files.
Reviews
Be the first to review this.
Sign in to write a review.
Add to my tools
Sign in to add this to your tools.
Specs
| Loop Limit | 4K ohms max. at 48VDC(5K meter - 26Ga non loaded) nominal 15mA minimum loop current |
|---|---|
| DC Resistor | 150 ohms Typical at 80mA current |
| Monitor lmpedance, Ring Position | Low impedance - 600 ohms Typical at 1 KHz |
| Monitor lmpedance, Monitor Position | High impedance - 100K ohms Typical at 1 KHz |
| Rotary Dial Output, Pulse Rate | 10 +/- 0.5 pulses/sec |
| Rotary Dial Output, Percent Break | 60% +/- 2% |
| Rotary Dial Output, Interdigital Pause | 8.5ms Typical |
| Rotary Dial Output, Leakage During Break | > 50k ohms |
| DTMF Output, Tone Frequency Error | +/- 1.5% |
| DTMF Output, Level of Tone Pair | +2 dBm max. , -8 dBm min. |
| DTMF Output, Low vs High Tone Difference | -4 dBm max |
| Dimensions | 9 in x 2 in x 2 in (22.86 cm x 5.08 cm x 5.08 cm) |
| Weight | 0.82 lb (372.28 g) |
