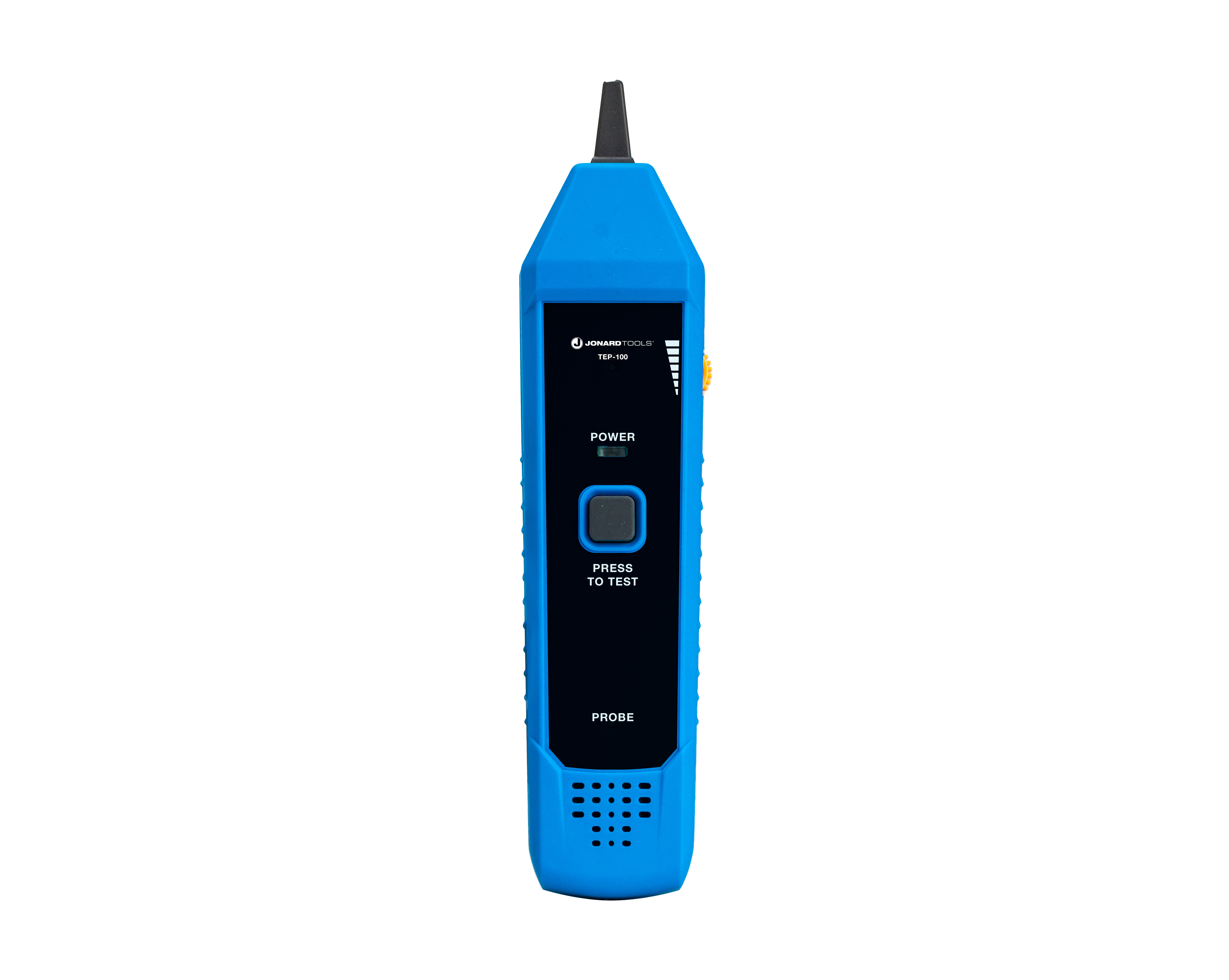

Jonard TEP-100 · 1 of 1 · Image: Jonard
Jonard TEP-100
Tools · Tone Tracing Probe
Specs come from the parts catalog. Wiring diagram
Documents & links
| tep-100-tone-tracing-probe?v=857 | tep-100-tone-tracing-probe?v=857 |
| Data%20Sheet%20-%20Cable%20Tester%20Tone%20%26%20Probe%20Kit.pdf | Data%20Sheet%20-%20Cable%20Tester%20Tone%20%26%20Probe%20Kit.pdf |
Outbound links only. HireLV does not host these files.
Reviews
Be the first to review this.
Sign in to write a review.
Add to my tools
Sign in to add this to your tools.
Specs
| Application | Wire Tracing |
|---|---|
| Standards | CE Standards |
| Battery Type | (1) 9V included |
| Overall Length | 8" (20.32 cm) |
| Dimensions | 8.25 in x 1.86 in x 1.3 in (20.96 cm x 4.71 cm x 3.3 cm) |
| Weight | 0.21 lb (95.34 g) |
