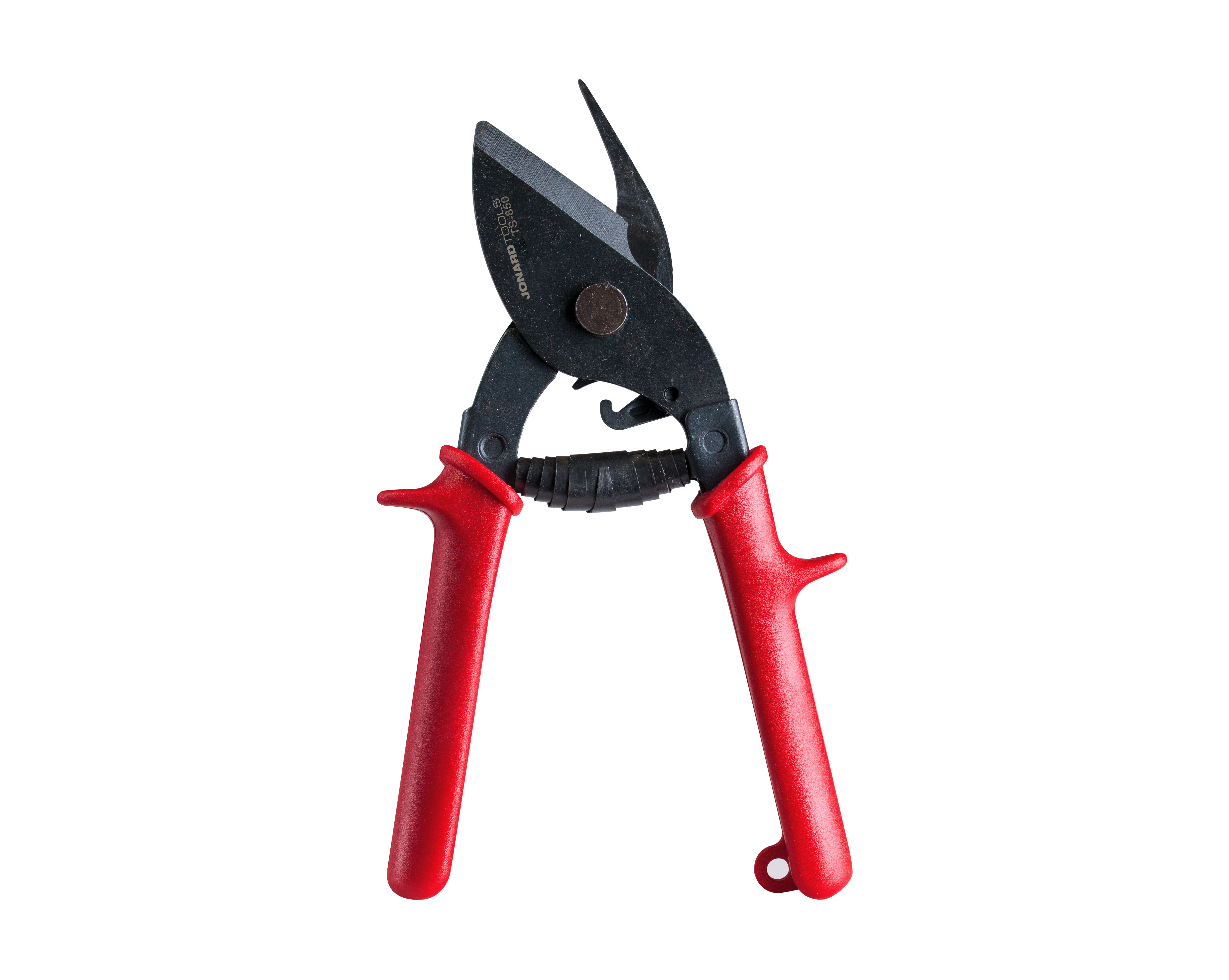

Jonard TS-850 · 1 of 1 · Image: Jonard
Jonard TS-850
Tools · Tabbing Shears
Specs come from the parts catalog. Wiring diagram
Documents & links
| ts-850-tabbing-shears?v=524 | ts-850-tabbing-shears?v=524 |
| Data%20Sheet%20-%20Tabbing%20Shears%20-%20TS-850.pdf | Data%20Sheet%20-%20Tabbing%20Shears%20-%20TS-850.pdf |
Outbound links only. HireLV does not host these files.
Reviews
Be the first to review this.
Sign in to write a review.
Add to my tools
Sign in to add this to your tools.
Specs
| Conductor Material | Aluminum, Copper |
|---|---|
| Jaw Capacity | 1-1/4" (31.75mm) |
| Jaw Thickness | 0.17" (4.32mm) |
| Dimensions | 8.19 in x 3.44 in x 0.94 in (20.8 cm x 8.72 cm x 2.37 cm) |
| Weight | 0.59 lb (269.676 g) |
