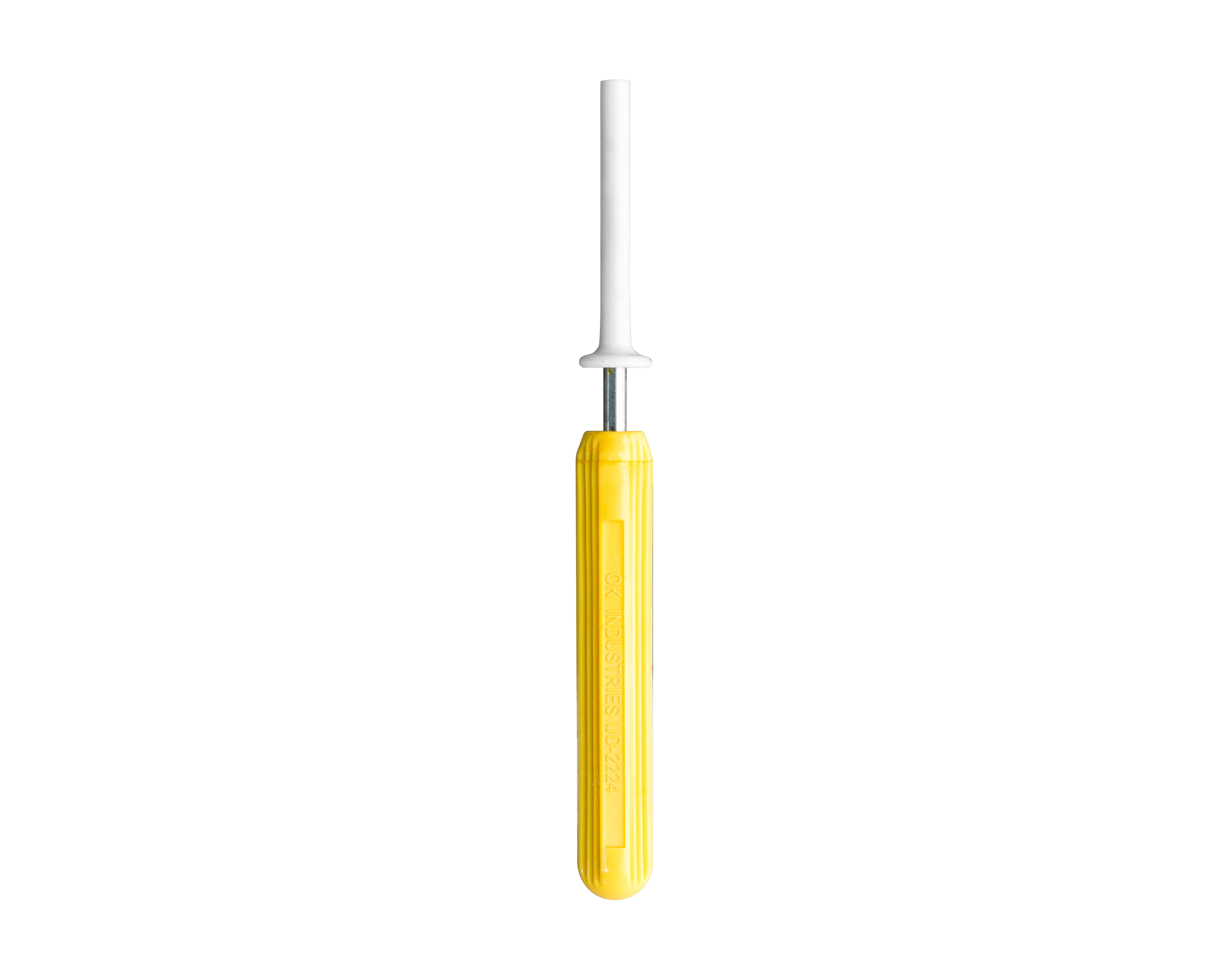

Jonard UD-2224
Tools · Sleeved Unwrapping Tool, 20-26 AWG
Specs come from the parts catalog. Wiring diagram
Documents & links
| ud-2224-sleeved-unwrapping-tool-20-26-awg?v=569 | ud-2224-sleeved-unwrapping-tool-20-26-awg?v=569 |
Outbound links only. HireLV does not host these files.
Reviews
Be the first to review this.
Sign in to write a review.
Add to my tools
Sign in to add this to your tools.
Specs
| Unwrap Wire Gauge | 20-26 AWG (0.81 mm-0.40 mm) |
|---|---|
| Unwrap Direction | Left-hand, right-hand |
| Terminal Hole Diameter | 0.070" (1.77 mm) |
| Terminal Hole Depth | 2.36" (60 mm) |
| Outside Diameter | 1.95" (4.95 mm) |
| Wrap Post Size | 0.045" (1.14 mm) |
| Handle Color | Yellow |
| Dimensions | 5.5 in x 0.51 in x 0.5 in (13.96 cm x 1.3 cm x 1.28 cm) |
| Weight | 0.04 lb (16.344 g) |
