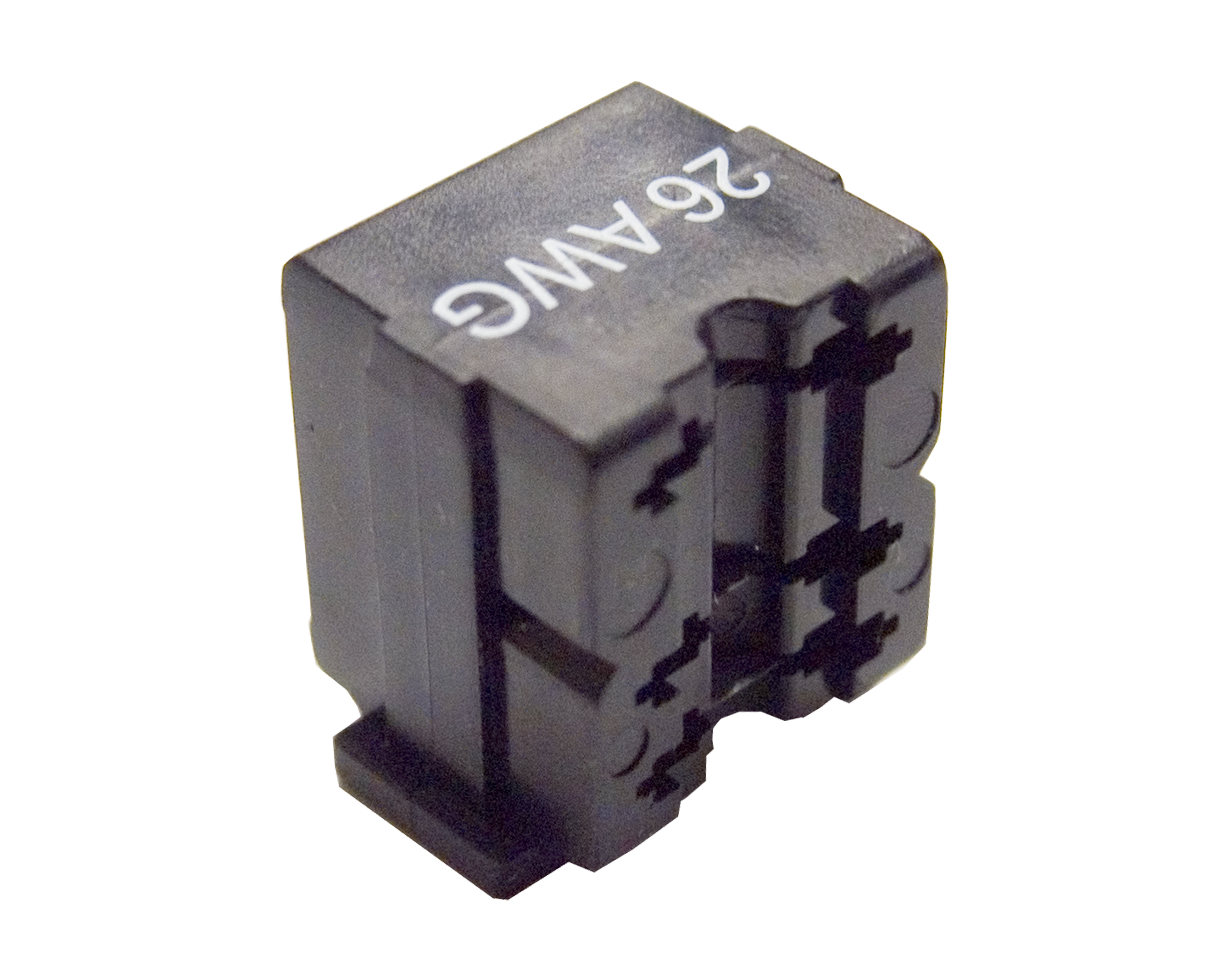

Jonard UST-220 · 1 of 1 · Image: Jonard
Jonard UST-220
Tools · Replacement Blade Cartridge for UST-500 and UST-175
Specs come from the parts catalog. Wiring diagram
Documents & links
| coax-strippers-ust-stripper-blade?v=580 | coax-strippers-ust-stripper-blade?v=580 |
| Data%20Sheet%20-%20Coax%20Stripping%20Tools%20%26%20Replacement%20Blade%20Cartridge%20for%20UST%20Series_16.pdf | Data%20Sheet%20-%20Coax%20Stripping%20Tools%20%26%20Replacement%20Blade%20Cartridge%20for%20UST%20Series_16.pdf |
Outbound links only. HireLV does not host these files.
Reviews
Be the first to review this.
Sign in to write a review.
Add to my tools
Sign in to add this to your tools.
Specs
| Cable Type | COAX |
|---|---|
| Cable Size | Mini COAX |
| Cable Diameter | 26 AWG (0.4 mm) |
| Strip Length | Jacket: 0.625" (15.875 mm), Shield & Dielectric: 0.156" (3.962 mm), Center Conductor: 0.156" (3.962 mm) |
| Dimensions | 0.79 in x 0.77 in x 0.59 in (2 cm x 1.95 cm x 1.49 cm) |
| Weight | 0.01 lb (3.632 g) |
