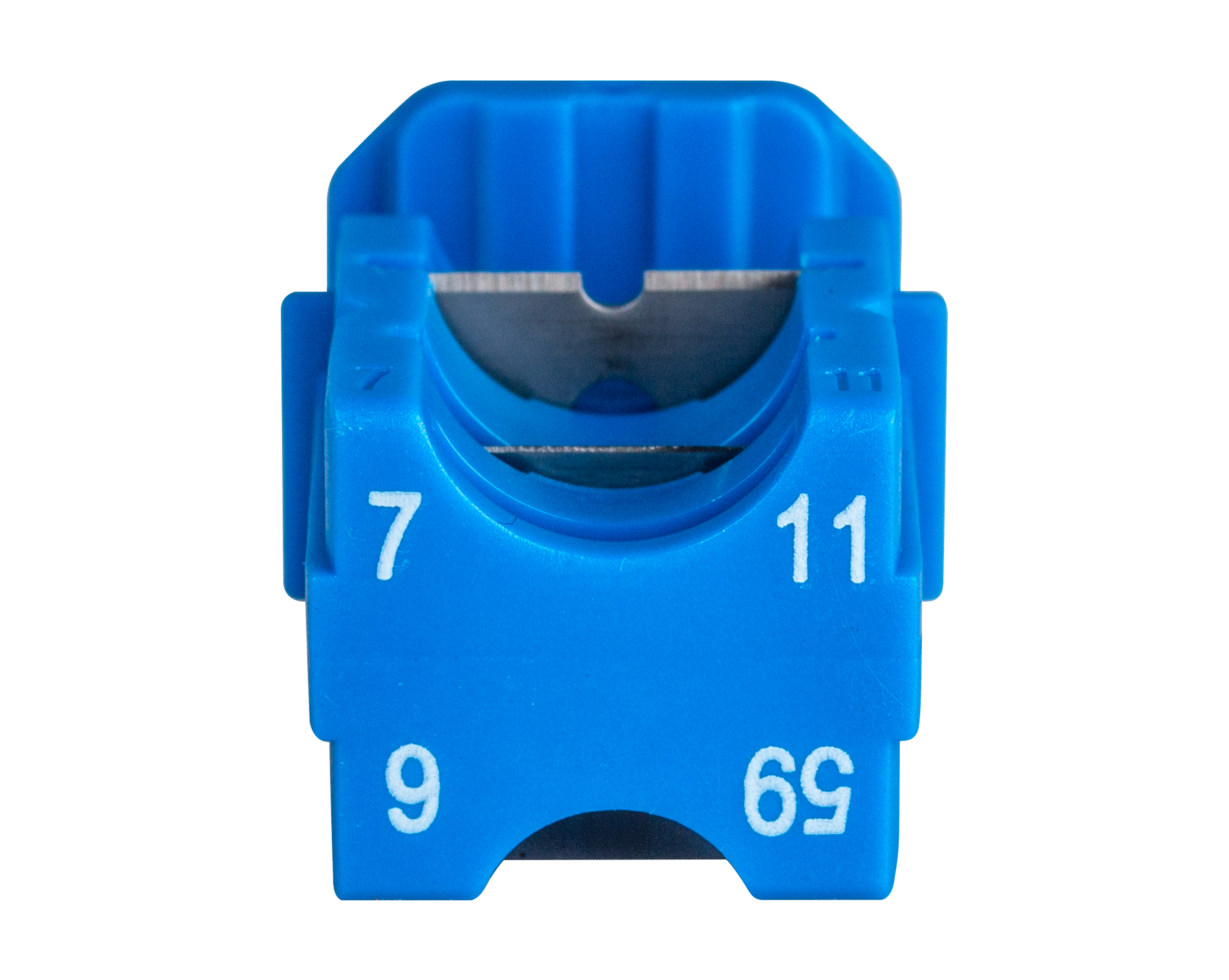

Jonard UST-225 · 1 of 1 · Image: Jonard
Jonard UST-225
Tools · Replacement Blade Cartridge with Cable Stop for UST-500 and UST-125
Specs come from the parts catalog. Wiring diagram
Documents & links
| coax-strippers-ust-stripper-blade?v=581 | coax-strippers-ust-stripper-blade?v=581 |
| Data%20Sheet%20-%20Coax%20Stripping%20Tools%20%26%20Replacement%20Blade%20Cartridge%20for%20UST%20Series_16.pdf | Data%20Sheet%20-%20Coax%20Stripping%20Tools%20%26%20Replacement%20Blade%20Cartridge%20for%20UST%20Series_16.pdf |
Outbound links only. HireLV does not host these files.
Reviews
Be the first to review this.
Sign in to write a review.
Add to my tools
Sign in to add this to your tools.
Specs
| Cable Type | COAX |
|---|---|
| Cable Size | RG59/6/N48, RG7 and RG11 |
| Cable Diameter | 6.1 mm – 10.5 mm |
| Strip Length | Jacket: 0.25" (6.35 mm), Shield & Dielectric: 0.3125" (7.9375 mm) |
| Dimensions | 0.94 in x 0.77 in x 0.77 in (2.38 cm x 1.94 cm x 1.97 cm) |
| Weight | 0.01 lb (5.448 g) |
