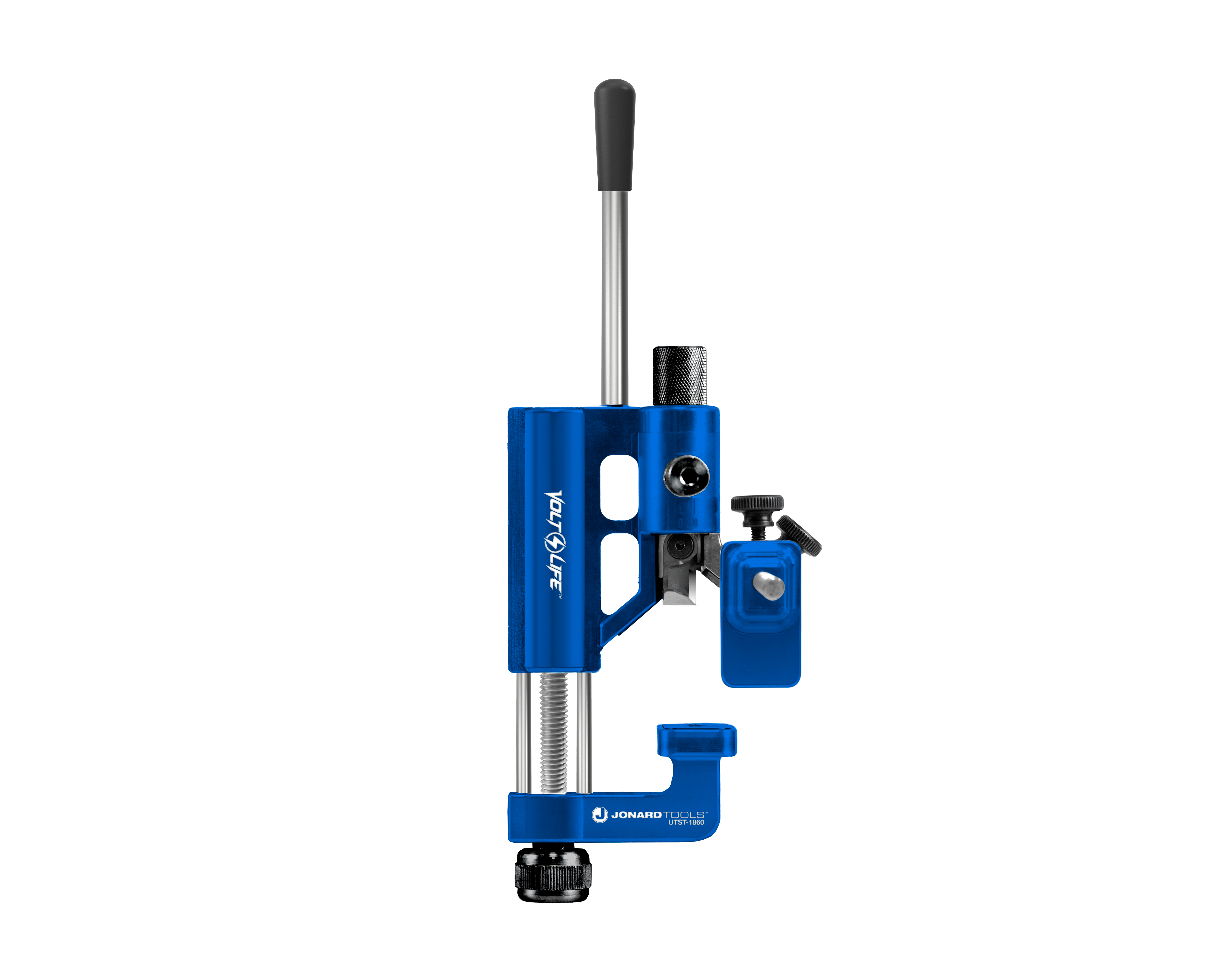

Jonard UTST-1860
Tools · 600V-35kV Utility Cable Jacket and Insulation Stripper, 0.5" - 2.5"
Specs come from the parts catalog. Wiring diagram
Documents & links
| utst-1860-1?v=1875 | utst-1860-1?v=1875 |
| 1875 | 1875 |
Outbound links only. HireLV does not host these files.
Reviews
Be the first to review this.
Sign in to write a review.
Add to my tools
Sign in to add this to your tools.
Specs
| Cable Compatibility | Primary Distribution Overhead & Underground, Secondary Distribution, Tree Wire, Spacer Cables |
|---|---|
| Cable Voltage Range | 600V - 35 kV |
| Compatible Material | Jacket: PVC, PE, and HDPE Insulation: PE, XLPE |
| Cable Diameter | 0.5" - 2.5" (12.7 mm - 63.5 mm) |
| Insulation Thickness | 0.06" - 0.42" (1.52 mm - 10.60 mm) |
| Blade Depth | Adjustable: 0.0” - 0.51” (0 mm - 13 mm) |
| Cable Access | Mid-Span, End |
| Removal Method | Radial, Spiral |
| Blade Angle | 0° (Ring/Radial) / 10° (Small Spiral) / 20° (Large Spiral) |
| Material | Aluminum |
| Dimensions | 10.5" x 4.75" x 2.6" (26.67 cm x 12.07 cm x 6.6 cm) |
| Weight | 2.5 lb (1135 g) |
