Image: Jonard · Field photos are credited to the uploader

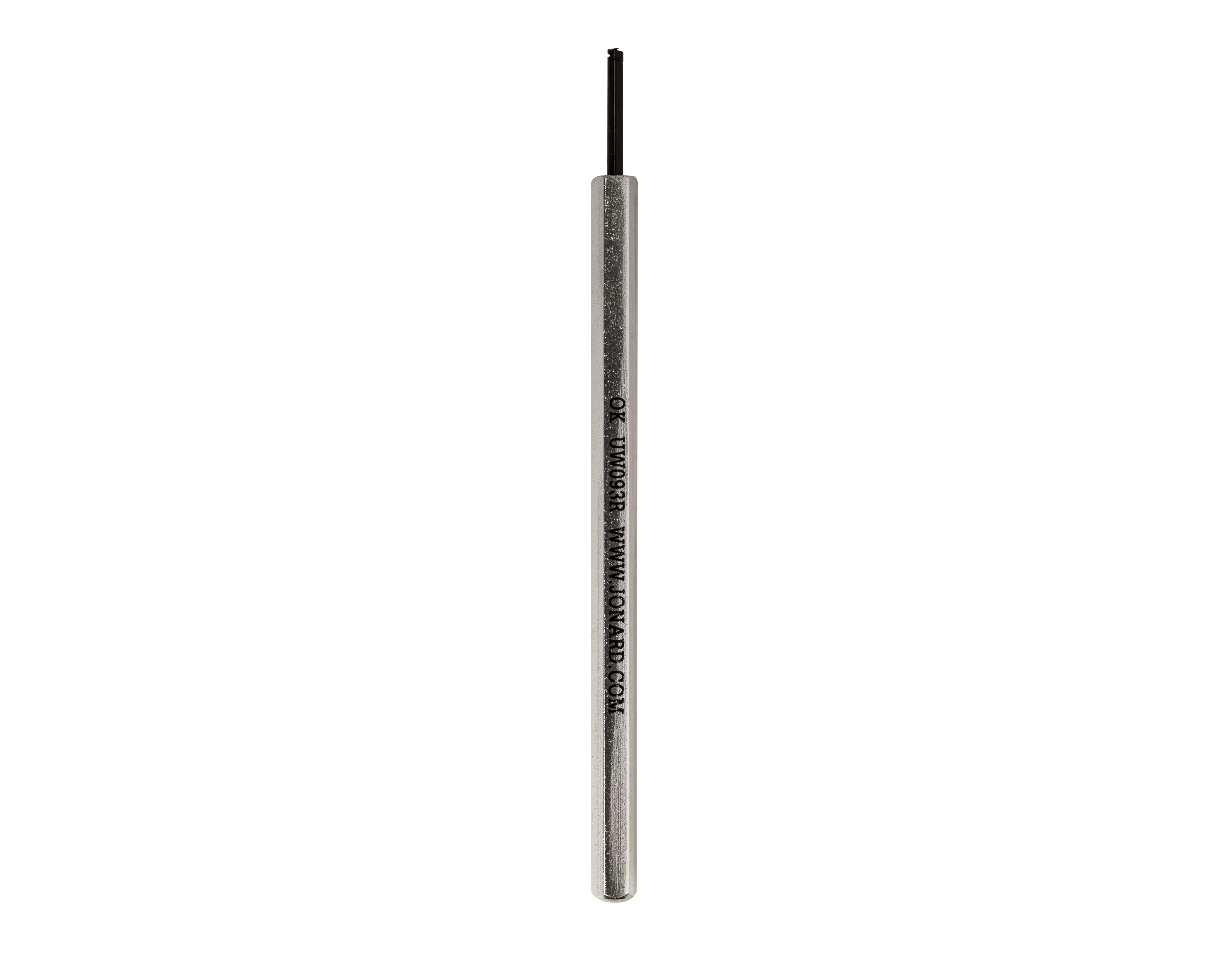

Jonard UW093R · 1 of 1 · Image: Jonard
Jonard UW093R
Tools · Unwrap Tool, Left-hand, 24-32 AWG
Specs come from the parts catalog.
Documents & links
| hand-wrap-tool-huw-tool?v=589 | hand-wrap-tool-huw-tool?v=589 |
Outbound links only. HireLV does not host these files.
Reviews
Be the first to review this.
Sign in to write a review.
Add to my tools
Sign in to add this to your tools.
Specs
| Unwrap Wire Gauge | 24-32 AWG (0.51 mm-0.20 mm) |
|---|---|
| Unwrap Direction | Left-hand |
| Terminal Hole Diameter | 0.038" (0.965 mm) |
| Terminal Hole Depth | 1" (25.4 mm) |
| Outside Diameter | 0.093" (2.36 mm) |
| Wrap Post Size | 0.025" (0.63 mm) |
| Dimensions | 5.1 in x 0.25 in x 0.25 in (12.95 cm x 0.64 cm x 0.64 cm) |
| Weight | 0.02 lb (10.896 g) |
