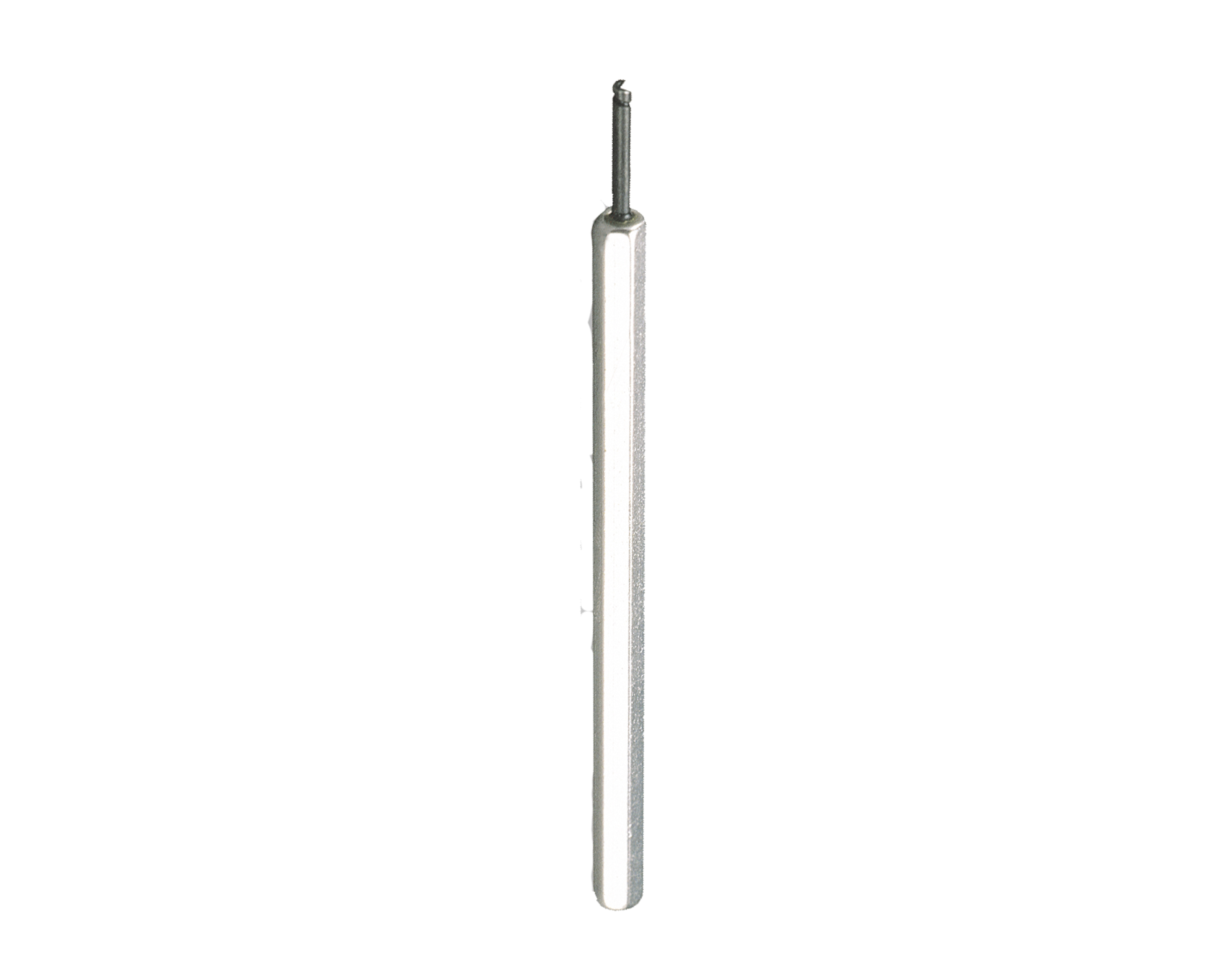

Jonard UW1 · 1 of 1 · Image: Jonard
Jonard UW1
Tools · Unwrap Tool, Left-hand, 20-26 AWG
Specs come from the parts catalog. Wiring diagram
Documents & links
| hand-wrap-tool-huw-tool?v=590 | hand-wrap-tool-huw-tool?v=590 |
Outbound links only. HireLV does not host these files.
Reviews
Be the first to review this.
Sign in to write a review.
Add to my tools
Sign in to add this to your tools.
Specs
| Unwrap Wire Gauge | 20-26 AWG (0.81 mm-0.40 mm) |
|---|---|
| Unwrap Direction | Left-hand |
| Terminal Hole Diameter | 0.070" (1.77 mm) |
| Terminal Hole Depth | 1" (25.4 mm) |
| Outside Diameter | 0.156" (3.96 mm) |
| Wrap Post Size | 0.045" (1.14 mm) |
| Dimensions | 4.86 in x 0.29 in x 0.25 in (12.34 cm x 0.73 cm x 0.65 cm) |
| Weight | 0.03 lb (11.804 g) |
