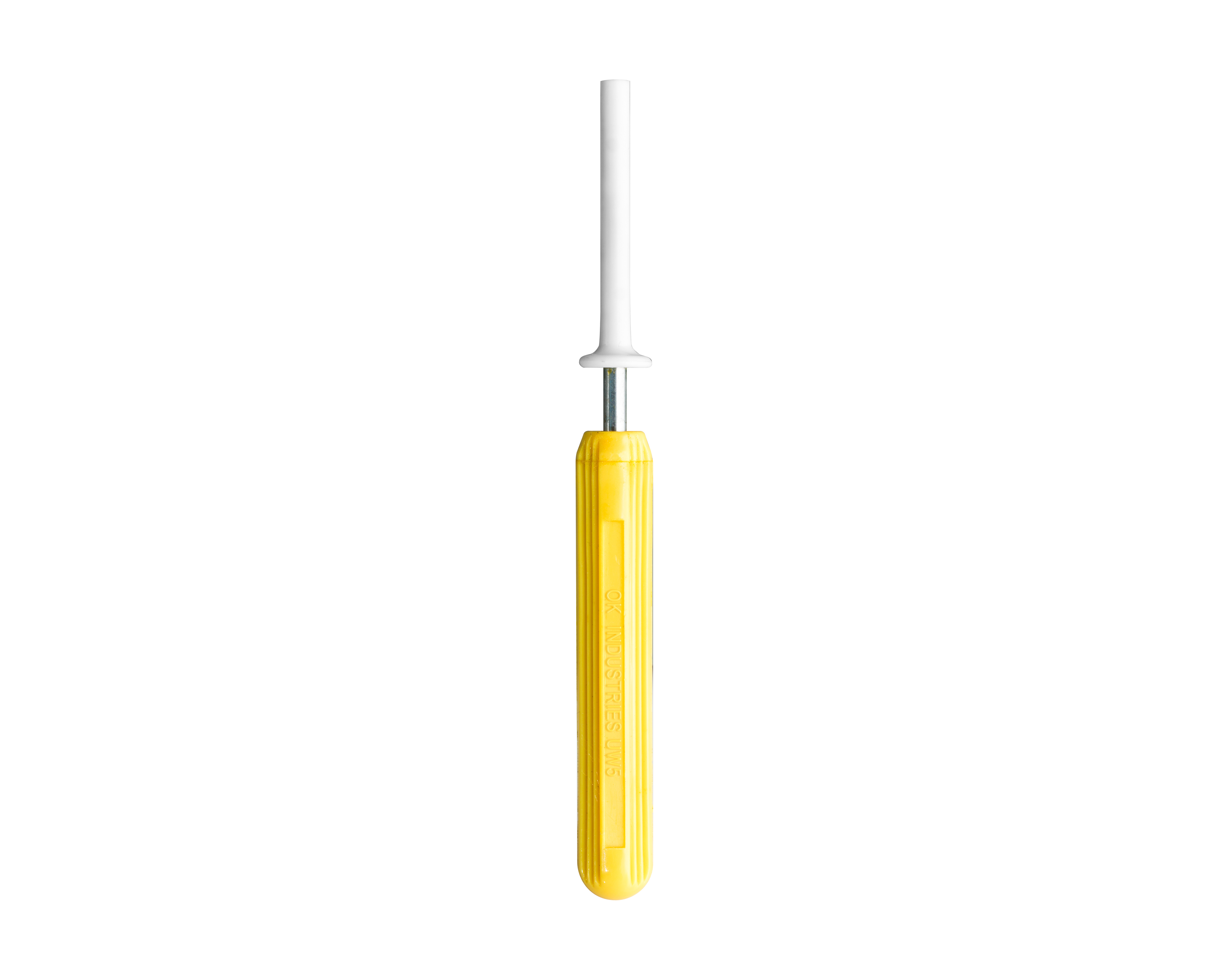

Jonard UW5 · 1 of 1 · Image: Jonard
Jonard UW5
Tools · Spring-Loaded Unwrap Tool, 20-26 AWG
Specs come from the parts catalog.
Documents & links
| hand-wrap-tool-huw-tool?v=594 | hand-wrap-tool-huw-tool?v=594 |
| Data%20Sheet%20-%20Spring-Loaded%20Unwrap%20Tool%2020-26%20AWG%20-%20UW5.pdf | Data%20Sheet%20-%20Spring-Loaded%20Unwrap%20Tool%2020-26%20AWG%20-%20UW5.pdf |
Outbound links only. HireLV does not host these files.
Reviews
Be the first to review this.
Sign in to write a review.
Add to my tools
Sign in to add this to your tools.
Specs
| Unwrap Wire Gauge | 20-26 AWG (0.81 mm-0.40 mm) |
|---|---|
| Unwrap Direction | Left-hand, right-hand |
| Terminal Hole Diameter | 0.070" (1.77 mm) |
| Terminal Hole Depth | 2.36" (60 mm) |
| Outside Diameter | 1.95" (4.95 mm) |
| Wrap Post Size | 0.045" (1.14 mm) |
| Handle Color | Yellow |
| Dimensions | 5 in x 0.51 in x 0.5 in (12.7 cm x 1.3 cm x 1.27 cm) |
| Weight | 0.04 lb (16.344 g) |
