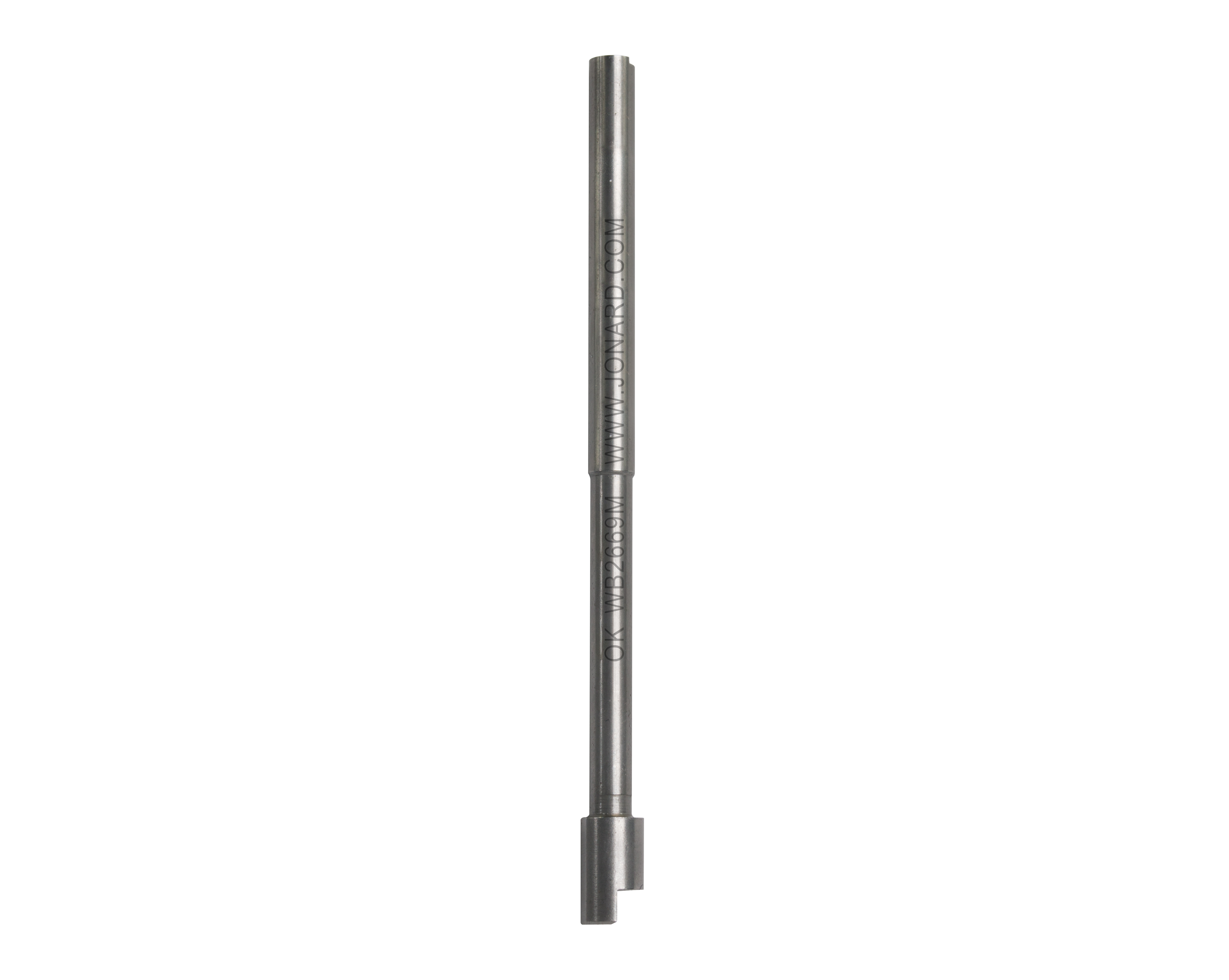

Jonard WB2669M · 1 of 1 · Image: Jonard
Jonard WB2669M
Tools · Modified Wire Wrapping Bit, 26 AWG
Specs come from the parts catalog. Wiring diagram
Documents & links
| standard-bits-ww-bit-modified?v=606 | standard-bits-ww-bit-modified?v=606 |
| Jonard%20Tools%20WB2669M%20Data%20Sheet.pdf | Jonard%20Tools%20WB2669M%20Data%20Sheet.pdf |
Outbound links only. HireLV does not host these files.
Reviews
Be the first to review this.
Sign in to write a review.
Add to my tools
Sign in to add this to your tools.
Specs
| Sleeve Part No. | P2224 and P2426INS (sold separately) |
|---|---|
| Wrap Function | Wrap |
| Wrap Type | Modified |
| Wire gauge | 26 AWG (0.40 mm) |
| Maximum Insulation Diameter | 0.041" (1.04 mm) |
| Minimum Terminal Diagonal | 0.053" (1.34 mm) |
| Maximum Terminal Diagonal | 0.069" (1.75 mm) |
| Terminal Hole Depth | 1" (25.4 mm) |
| Terminal Hole Diameter | 0.069" (1.75 mm) |
| Effective Radius | 0.109" (2.77 mm) |
| Wrap Post Size | 0.045" (1.14 mm) |
| Dimensions | 3.11 in x 0.23 in x 0.22 in (7.89 cm x 0.59 cm x 0.55 cm) |
| Weight | 0.02 lb (7.264 g) |
