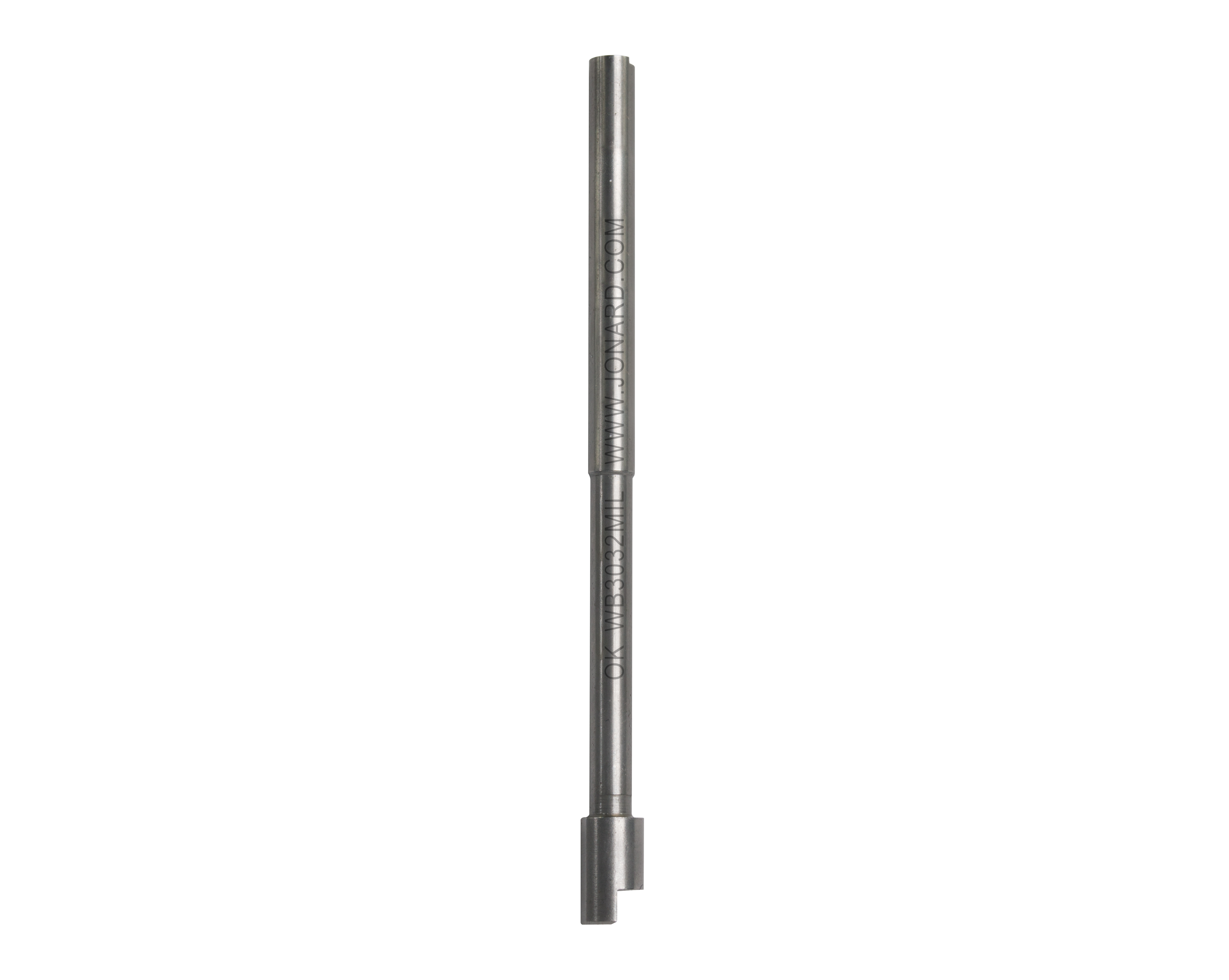

Jonard WB3032MIL
Tools · Modified Wire Wrapping Bit, 30-32 AWG
Specs come from the parts catalog. Wiring diagram
Documents & links
| standard-bits-ww-bit-modified?v=901 | standard-bits-ww-bit-modified?v=901 |
| Jonard%20Tools%20WB3032MIL%20Data%20Sheet.pdf | Jonard%20Tools%20WB3032MIL%20Data%20Sheet.pdf |
Outbound links only. HireLV does not host these files.
Reviews
Be the first to review this.
Sign in to write a review.
Add to my tools
Sign in to add this to your tools.
Specs
| Sleeve Part No. | P3032 and P3032INS (sold separately) |
|---|---|
| Wrap Function | Wrap |
| Wrap Type | Modified |
| Wire gauge | 30-32 AWG (0.25 mm-0.20 mm) |
| Maximum Insulation Diameter | 0.027" (0.69 mm) |
| Minimum Terminal Diagonal | 0.034" (0.86 mm) |
| Maximum Terminal Diagonal | 0.038" (0.96 mm) |
| Terminal Hole Depth | 0.75" (19.05 mm) |
| Terminal Hole Diameter | 0.040" (1.02 mm) |
| Effective Radius | 0.064" (1.62 mm) |
| Wrap Post Size | 0.025" (0.63 mm) |
| Dimensions | 3.11 in x 0.23 in x 0.22 in (7.89 cm x 0.59 cm x 0.55 cm) |
| Weight | 0.01 lb (3.632 g) |
