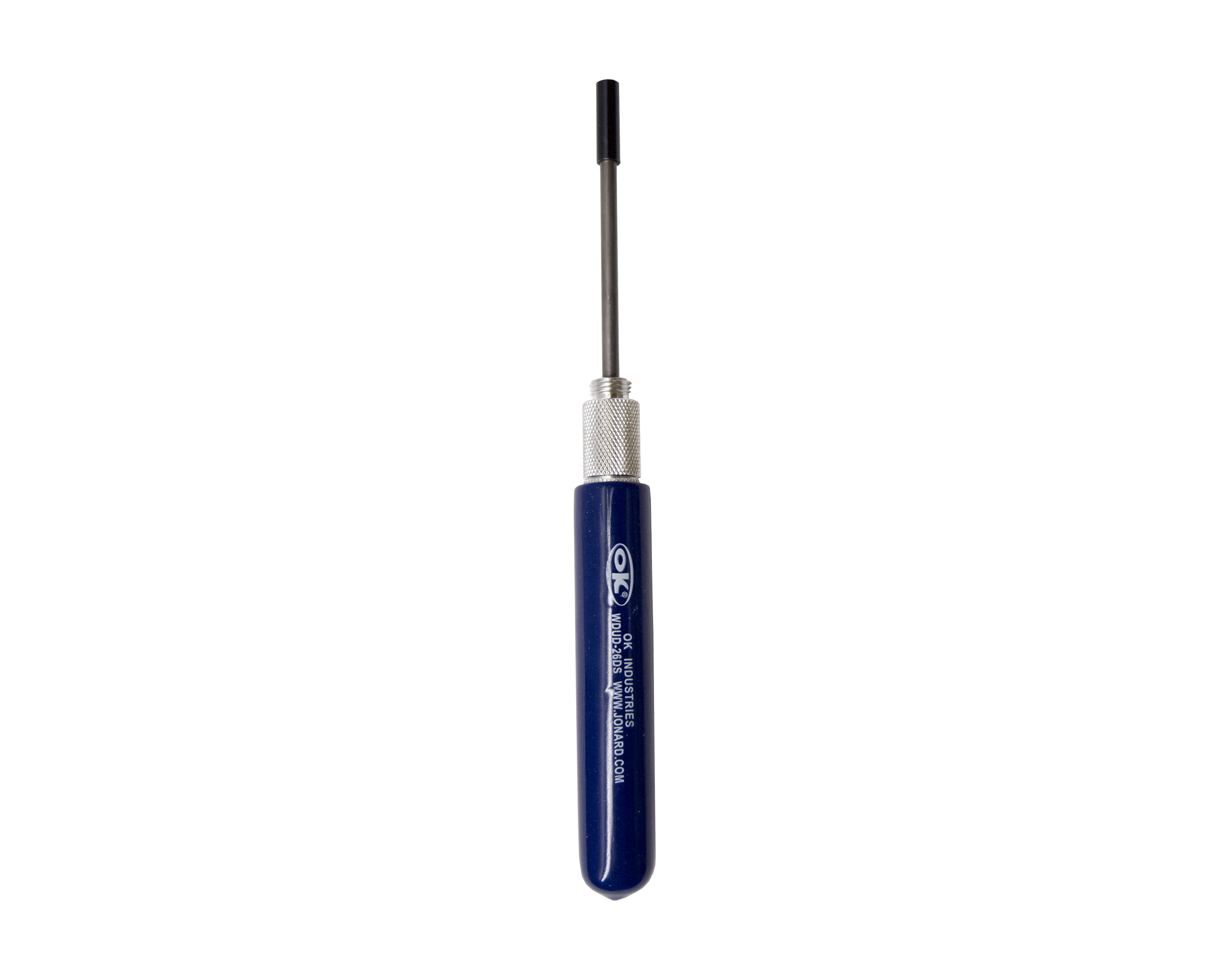

Jonard WDUD-26DS
Tools · DSL Wrap and Unwrap Tool
Specs come from the parts catalog. Wiring diagram
Documents & links
| hand-wrap-tool-hwuw-tool?v=618 | hand-wrap-tool-hwuw-tool?v=618 |
| Jonard%20Tools%20Insulated%20HW-UW%20Tools%20Data%20Sheet.pdf | Jonard%20Tools%20Insulated%20HW-UW%20Tools%20Data%20Sheet.pdf |
Outbound links only. HireLV does not host these files.
Reviews
Be the first to review this.
Sign in to write a review.
Add to my tools
Sign in to add this to your tools.
Specs
| Wrap Type | Regular |
|---|---|
| Wrap Wire Gauge | 26 AWG (0.40 mm) |
| Wrap Terminal Hole Diameter | 0.075" (1.90 mm) |
| Wrap Terminal Hole Depth | 1" (25.40 mm) |
| Wrap Outside Diameter | 0.218" (5.54 mm) |
| Wrap Post Size | 0.045" (1.14 mm) |
| Unwrap Wire Gauge | 20-26 AWG (0.81 mm-0.40 mm) |
| Unwrap Terminal Hole Diameter | 0.070" (1.77 mm) |
| Unwrap Terminal Hole Depth | 1" (25.40 mm) |
| Unwrap Outside Diameter | 0.156" (3.96 mm) |
| Handle Type | Insulated |
| Dimensions | 7.06 in x 0.62 in x 0.62 in (17.94 cm x 1.56 cm x 1.56 cm) |
| Weight | 0.09 lb (42.676 g) |
